Shenzhen Sunmoon MicroDatasheet (PDF)

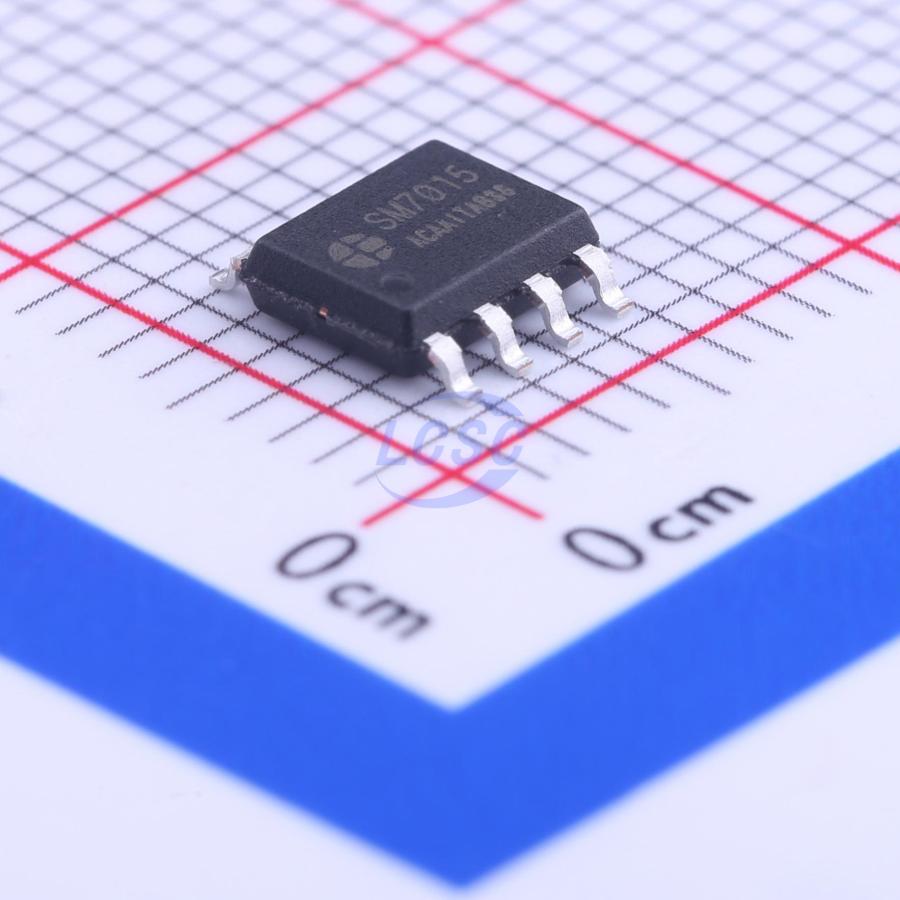

SM7015
Converter Offline Buck Buck-Boost Topology 60kHz SOIC-8
SOIC-8ROHS CompliantActive
AC/DC current mode PWM power switch IC
- Manufacturer
- Shenzhen Sunmoon Micro
- Manufacturer part #
- SM7015
- Store part #
- C116925
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,680 in stock
#C116925
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.26 | ₹156.30 |
| 50+ | ₹25.11 | ₹1,255.50 |
| 150+ | ₹22.48 | ₹3,372.00 |
| 500+ | ₹19.19 | ₹9,595.00 |
| 2,500+ | ₹15.39 | ₹38,475.00 |
| 4,000+ | ₹14.51 | ₹58,040.00 |
5 × ₹31.26
₹156.30
excl. GST
₹184.43 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SM7015
₹156.30 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Output Current
- 150mA
- Frequency - Switching
- 60kHz
- Voltage - Breakdown
- 730V
- Topology
- Buck;Buck-Boost
- Features
- High voltage direct start;EMI optimization (spread spectrum);Under-voltage lockout;Light load efficient mode;Soft-start;Overtemperature protection (OTP);Over Current Protection;Over Voltage Protection;Under Voltage Protection
- Output Voltage
- 12V;18V
- Working Mode
- PWM Modulation
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.162 g
Overview
SM7015 is a power switch IC using current-mode PWM control, integrating a high-voltage startup circuit and high-voltage power transistor to provide a cost-effective solution for low-cost switching power supply systems. The IC is designed for BUCK topology, supporting 12V/18V output voltage, making it well-suited for small home appliance applications. It also features comprehensive protection functions including over-temperature, over-current, over-voltage, and under-voltage protection, ensuring system reliability.
Applications
- Power supply for small home appliances such as induction cookers, rice cookers, and electric pressure cookers
Key features
- Topology support: low-cost BUCK, BUCK-BOOST solutions
- 730V monolithic integration process
- 85Vac~265Vac wide voltage input
- Standby power consumption <120mW@220Vac
- Integrated high-voltage startup circuit
- Integrated high-voltage power switch
- 60KHz fixed switching frequency
- Built-in frequency dithering for enhanced EMC performance
- Current mode PWM control
- Built-in OTP, OCP, OVP, UVP protection functions
- Built-in soft-start
- Built-in intelligent soft-drive technology (improved EMC performance)
- Package: SOP8
