VISHAYDatasheet (PDF)

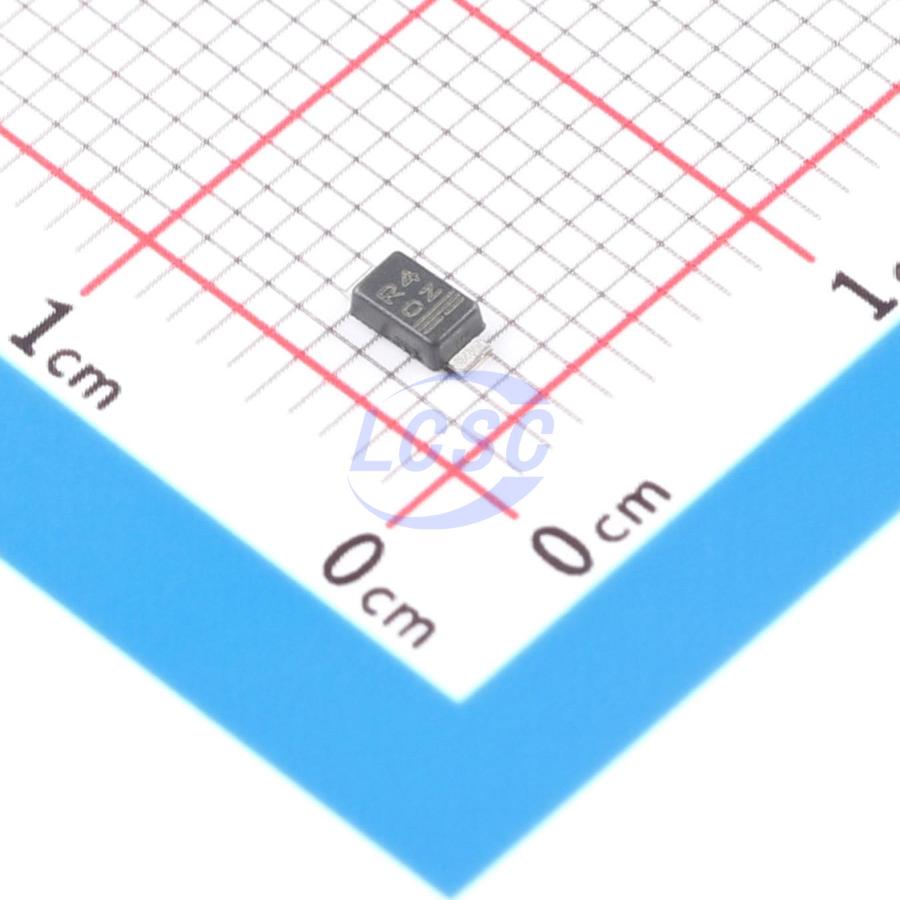

SMF24A-M3-08
38.9VC Clamp 5.1A@10/1000us Ipp ESD DIODE SMF(DO-219AB)
SMF(DO-219AB)ROHS3 CompliantActive
ESD DIODE 24VWM 38.9VC SMF(DO-219AB)
- Manufacturer
- VISHAY
- Manufacturer part #
- SMF24A-M3-08
- Store part #
- C1974006
- Package / case
- SMF(DO-219AB)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
80 in stock
#C1974006
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.49 | ₹102.45 |
| 50+ | ₹20.06 | ₹1,003.00 |
| 150+ | ₹19.75 | ₹2,962.50 |
| 500+ | ₹19.46 | ₹9,730.00 |
5 × ₹20.49
₹102.45
excl. GST
₹120.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMF24A-M3-08
₹102.45 for 5 + GST
Specifications
- Clamping Voltage
- 38.9V
- Operating Temperature
- -65℃~+175℃
- Peak Pulse Current (Ipp)
- 5.1A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 200W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 29.6V
- type
- ESD
- Reverse Leakage Current (Ir)
- 100nA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.001 g
Overview
Key features
- 200 W peak pulse power capability with a Available 10/1000 μs waveform, repetition rate (duty cycle): 0.01 %
- Low profile package
- Wave and reflow solderable e3
- ESD immunity acc. IEC 61000 - 4 - 2 RoHS ± 30 kV contact discharge, ± 30 kV air discharge
- ESD capability according to AEC - Q101: Available human body model: class H3B: > 8 kV
- Low incremental surge resistance, excellent clamping capability
- “Low Noise” technology - very fast response time
- AEC - Q101 qualified available
- Compatible to SOD - 123W package case outline or SOD - 123F and SOD - 123FL
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMF24A-E3-08#C1973440VISHAY · SMF(DO-219AB) | VISHAY | SMF(DO-219AB) | 1,865 | ₹30.98 · 1,865 in stock | View |
 | SMF24A#C2857282JSMSEMI · SOD-123FL | JSMSEMI | SOD-123FL | 58,000 | ₹2.37 · 58,000 in stock | View |
 | TPSMF24A#C42440534TECH PUBLIC · SOD-123FL | TECH PUBLIC | SOD-123FL | 280 | ₹4.06 · 280 in stock | View |
| SMF26A-E3-08#C1973422VISHAY · SMF | VISHAY | SMF | 34,960 | ₹29.94 · 34,960 in stock | View | |
 | SMF22A-HE3-08#C1973936VISHAY · SMF(DO-219AB) | VISHAY | SMF(DO-219AB) | 1,555 | ₹22.89 · 1,555 in stock | View |
