VISHAYDatasheet (PDF)
SMM02040C2209FB000

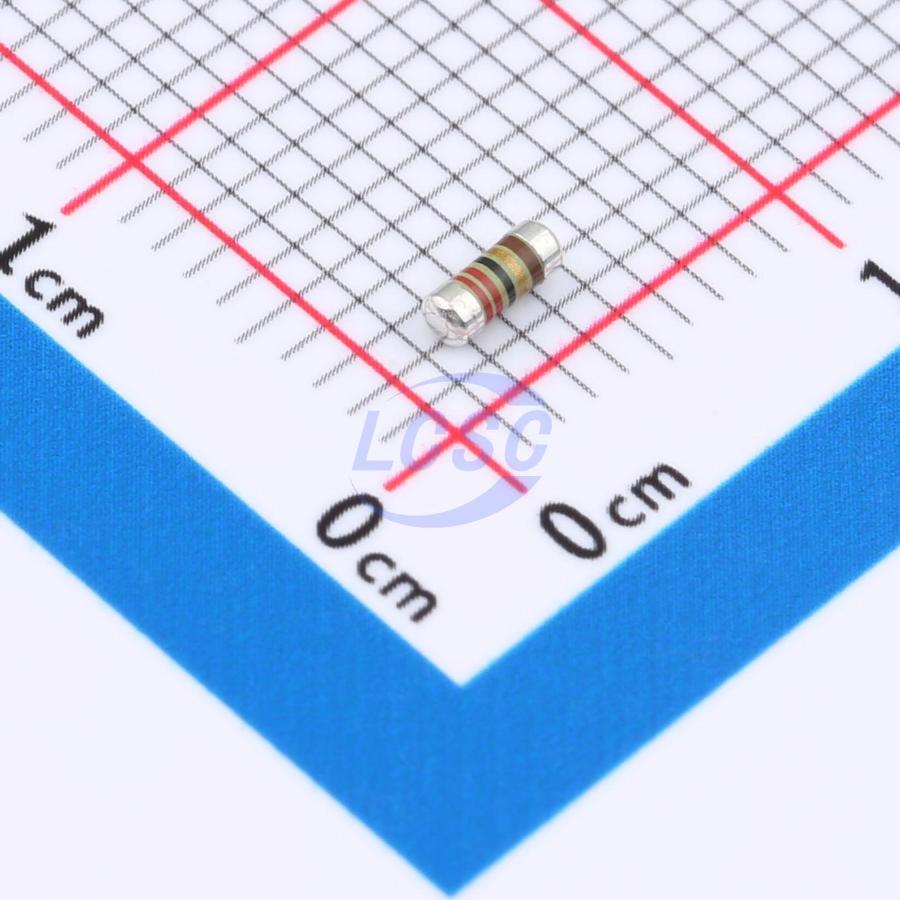

250mW 22Ω 200V Thin Film Resistor ±50ppm/℃ ±1% MELF-0204 Chip Resistor - Surface Mount RoHS
MELF-0204ROHS3 CompliantActive
RES 22Ω ±1% 250mW MELF-0204
- Manufacturer
- VISHAY
- Manufacturer part #
- SMM02040C2209FB000
- Store part #
- C1855851
- Package / case
- MELF-0204
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,180 in stock
#C1855851
Stock & price checked 16 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.40 | ₹84.00 |
| 100+ | ₹6.84 | ₹684.00 |
| 300+ | ₹6.06 | ₹1,818.00 |
| 1,000+ | ₹5.46 | ₹5,460.00 |
| 5,000+ | ₹5.00 | ₹25,000.00 |
| 10,000+ | ₹4.76 | ₹47,600.00 |
10 × ₹8.40
₹84.00
excl. GST
₹99.12 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
SMM02040C2209FB000
₹84.00 for 10 + GST
Specifications
- Power(Watts)
- 250mW
- Resistance
- 22Ω
- Voltage Rating
- 200V
- Type
- Thin Film Resistor
- Temperature Coefficient
- ±50ppm/℃
- Tolerance
- ±1%
- Operating Temperature
- -55℃~+125℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.035 g
