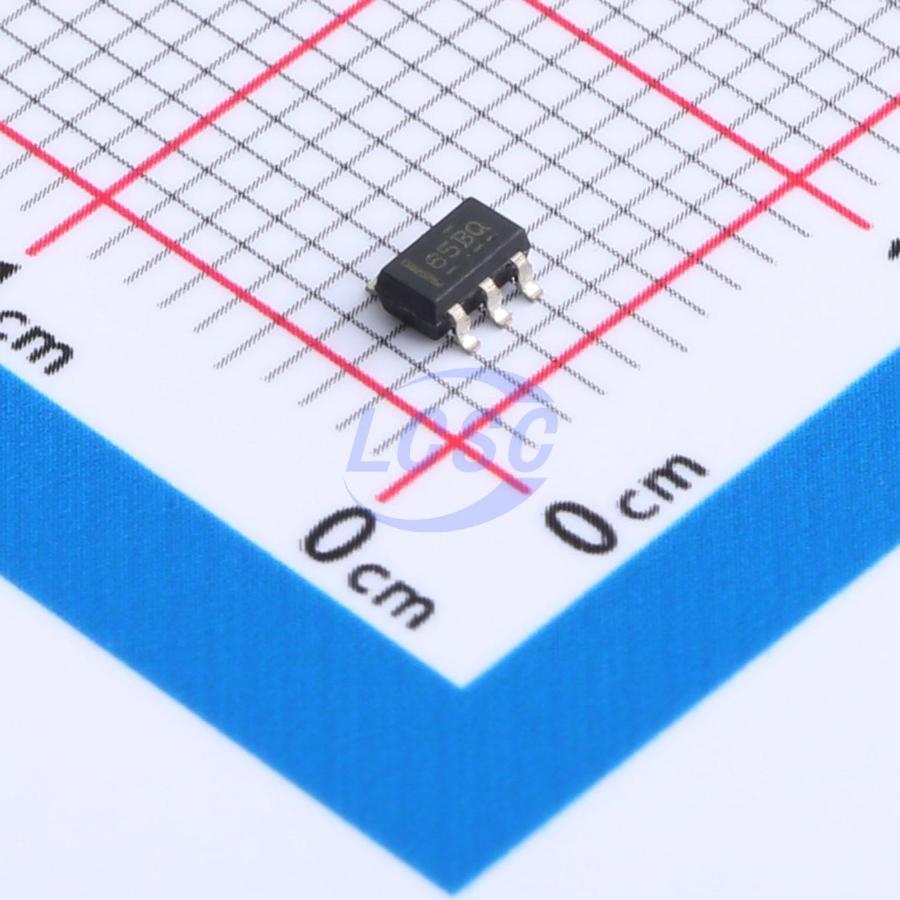

SN6505BQDBVRQ1

SOT-23-6 Power Management - Specialized RoHS

SOT-23-6ROHS3 CompliantActive

Low-noise 1A transformer driver suitable for isolated power supplies

Manufacturer: TI
Manufacturer part #: SN6505BQDBVRQ1
Store part #: C1849490
Package / case: SOT-23-6
Category: Power Management - Specialized
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,632 in stock

#C1849490

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹164.04	₹164.04
10+	₹134.50	₹1,345.00
30+	₹117.99	₹3,539.70
100+	₹99.52	₹9,952.00
500+	₹91.47	₹45,735.00
1,000+	₹87.78	₹87,780.00

Quantity (min 1)

1 × ₹164.04

₹164.04

excl. GST

₹193.57 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN6505BQDBVRQ1

₹164.04 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Over temperature protection;Under-voltage lockout;Soft-start;Overcurrent Protection
Operating Temperature: -40℃~+125℃
Current - Continuous Drain(Id): 1A
RDS(on): 160mΩ
Quiescent Current: 2.3mA
Voltage - Supply: 2.25V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 2 (1 year)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.04 g

Overview

The SN6505x-Q1 is a low-noise, low-EMI push-pull transformer driver designed for small isolated power supplies. This device drives thin, center-tapped transformers with a DC power supply ranging from 2.25V to 5V. Extremely low noise and EMI can be achieved through the slew rate control of the output switching voltage and spread spectrum clock (SSC). The SN6505x-Q1 contains an oscillator followed by a gate driver circuit, which provides compensated output signals to drive ground-referenced N-channel power switches. The device includes two 1A power MOSFET switches to ensure normal startup under heavy load conditions. The switching clock can also be provided externally, which ensures accurate positioning of switching harmonics or enables use with multiple transformer drivers. Internal protection features include a 1.7A current limit, undervoltage lockout, thermal shutdown, and a break-before-make circuit. The SN6505A-Q1 and SN6505B-Q1 have a soft-start function to prevent high inrush currents in large load capacitors during power-up. For applications requiring fast output startup, the soft-start function in the SN6505D-Q1 is disabled. The SN6505A-Q1 has an internal oscillator of 160kHz, suitable for applications requiring significant reduction of radiation, while the SN6505B-Q1 and SN6505D-Q1 have an internal oscillator of 420kHz, suitable for applications requiring higher efficiency and smaller transformer size. The SN6505x-Q1 comes in a small 6-pin SOT23/DBV package. The device operates over a temperature range of -40°C to 125°C.

Applications

Traction inverters and motor control
DC/DC converters
Battery management systems (BMS)
On-board chargers (OBC)

Key features

AEC-Q100 qualified (Grade 1) for automotive applications
Device temperature grade 1: -40°C to +125°C, TA
Push-pull driver for transformers
Wide input voltage range: 2.25V to 5.5V
High output drive: 1A at 5V supply
Low RON, 0.25Ω maximum at 4.5V supply
Reduced conducted and radiated EMI
Spread-spectrum clocking
Precision internal oscillator options: 160kHz (SN6505A-Q1) and 420kHz (SN6505B-Q1 and SN6505D-Q1)
Multi-device synchronization via external clock input
Slew rate control
1.7A current limiting
Low shutdown current: <1μA
Thermal shutdown
Small 6-pin SOT23 (DBV) package
Soft-start enabled (SN6505A-Q1 and SN6505B-Q1) for inrush current reduction; soft-start disabled (SN6505D-Q1) for fast startup
