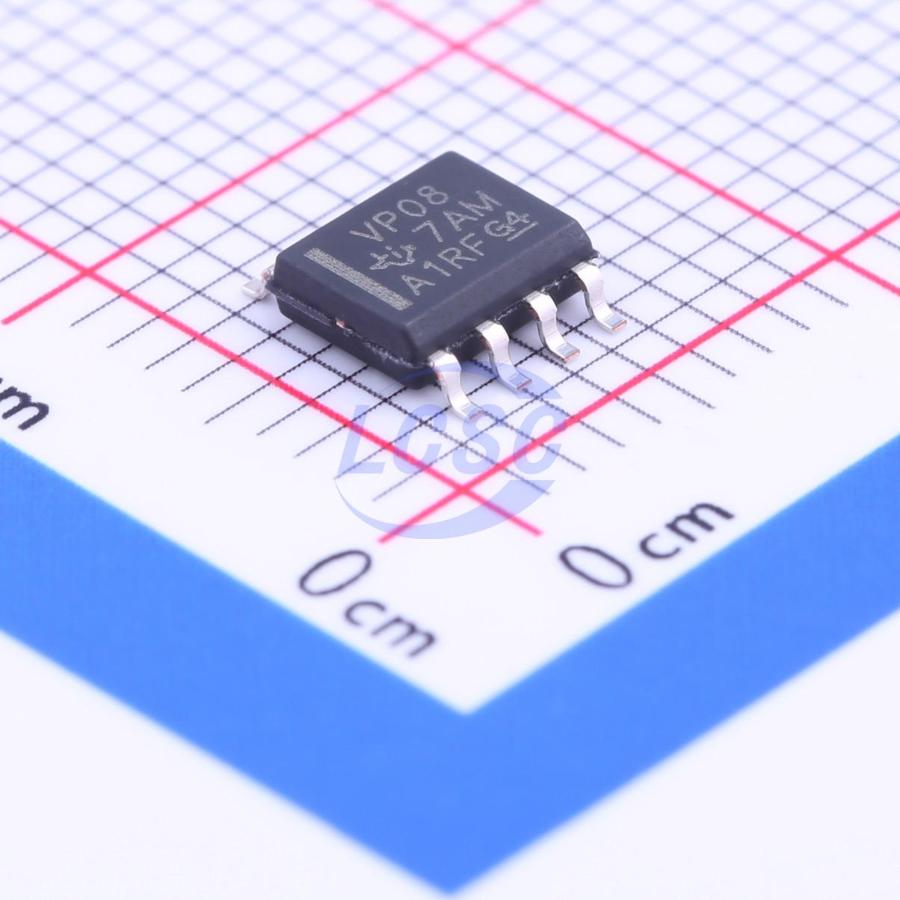

SN65HVD08DR

The SN65HVD08 combines a 3-state differential line driver and differential line receiver designed for balanced data transmission and interoperation with ANSI TIA/EIA-485-A and ISO-8482E standard-compliant devices. The wide supply voltage range and low quiescent current requirements allow the SN65HVD08s to operate from a 5-V power bus in the cable with as much as a 2-V line voltage drop. Busing power in the cable can alleviate the need for isolated power to be generated at each connection of a ground-isolated bus. The driver differential outputs and receiver differential inputs connect internally to form a differential input/output (I/O) bus port that is designed to offer minimum loading to the bus whenever the driver is disabled or not powered. The drivers and receivers have active-high and active-low enables respectively, which can be externally connected together to function as a direction control.

Applications

• Data Transmission With Remote Stations Powered From the Host
• Isolated Multipoint Data Buses
• Industrial Process Control Networks
• Point-of-Sale Networks
• Electric Utility Metering

Key features

• Operates With a 3-V to 5.5-V Supply
• Consumes Less Than 90-mW Quiescent Power
• Open-Circuit, Short-Circuit, and Idle-Bus Failsafe Receiver
• 1/8th Unit-Load (up to 256 nodes on the bus)
• Bus-Pin ESD Protection Exceeds 16-kV HBM
• Driver Output Voltage Slew-Rate Limited for Optimum Signal Quality at 10 Mbps
• Electrically Compatible With ANSI TIA/EIA-485 Standard
