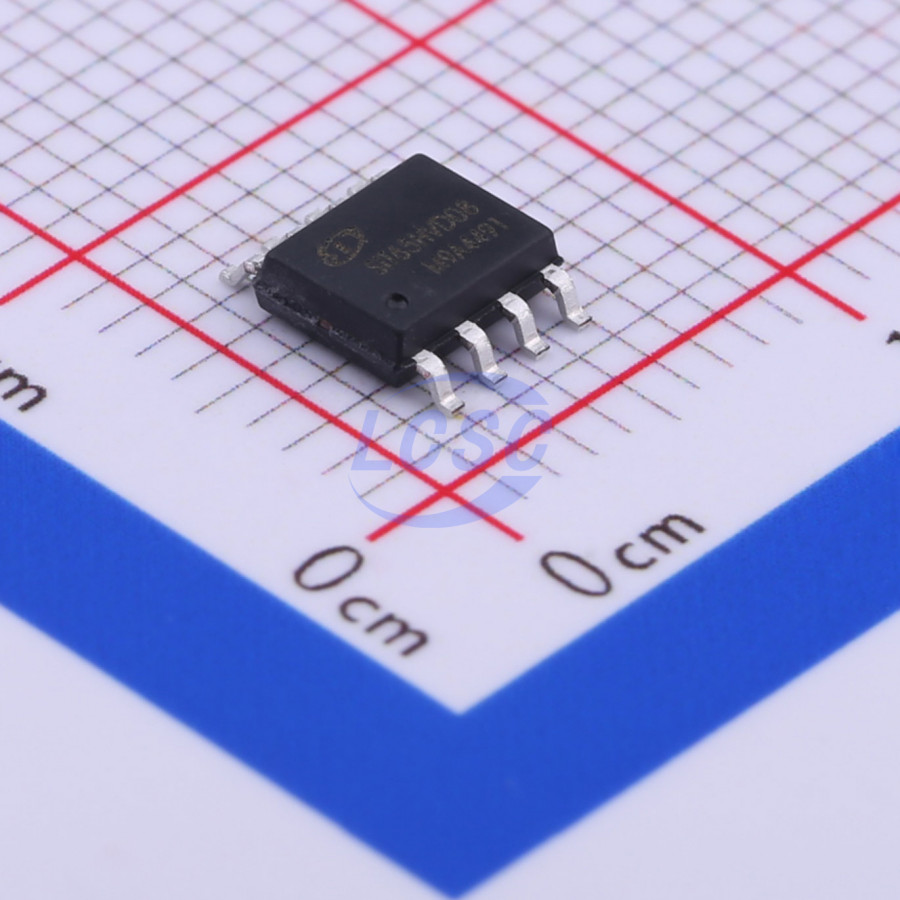

SIT65HVD08DR

SIT65HVD08 is a 3.0V~5.5V power supply, the contact discharge voltage of A/B is ±16KV, the fault protected voltage is ±15Vm, half-duplex, low power, RS485 Transceiver. SIT65HVD08 fully meets the TIA/EIA-485 standard. SIT65HVD08 includes a driver and a receiver, both of which can be independently enabled and disabled. When both are disabled, the driver and receiver outputs are high-impedance state. SIT65HVD08 has a 1/8-unit-load receiver input impedance, that allows up to 256 transceivers on the bus. The SIT65HVD08 allowing error-free data transmission up to 10Mbps. SIT65HVD08 operates under the supply voltage of 3.0V to 5.5V. SIT65HVD08 is a true fail-safe transceiver. SIT65HVD08 also has the function of thermal shutdown protection, current limiting protection, overvoltage protection.

Key features

• 3V~5.5V Power Supply, Half-duplex
• ESD Protection for Bus Terminals: Contact Discharge±16KV
• Bus Terminals Fault Voltage Up To ±15V 1/8-unit-load, allows up to 256 transceivers on the bus
• Short-circuit protection
• Thermal shutdown protection
• Low-Current Shutdown Mode
• True Fail-Safe Receiver
• Excellent noise immunity
• Integrated transient voltage suppression
• 10Mbps in Electrically Noisy Environments
• PB Free Package (RoHS)
