SN7406N
4.75V~5.25V 23ns@5V,15pF 6 DIP-14 Gates and Inverters RoHS
DIP-14ROHS3 CompliantActive

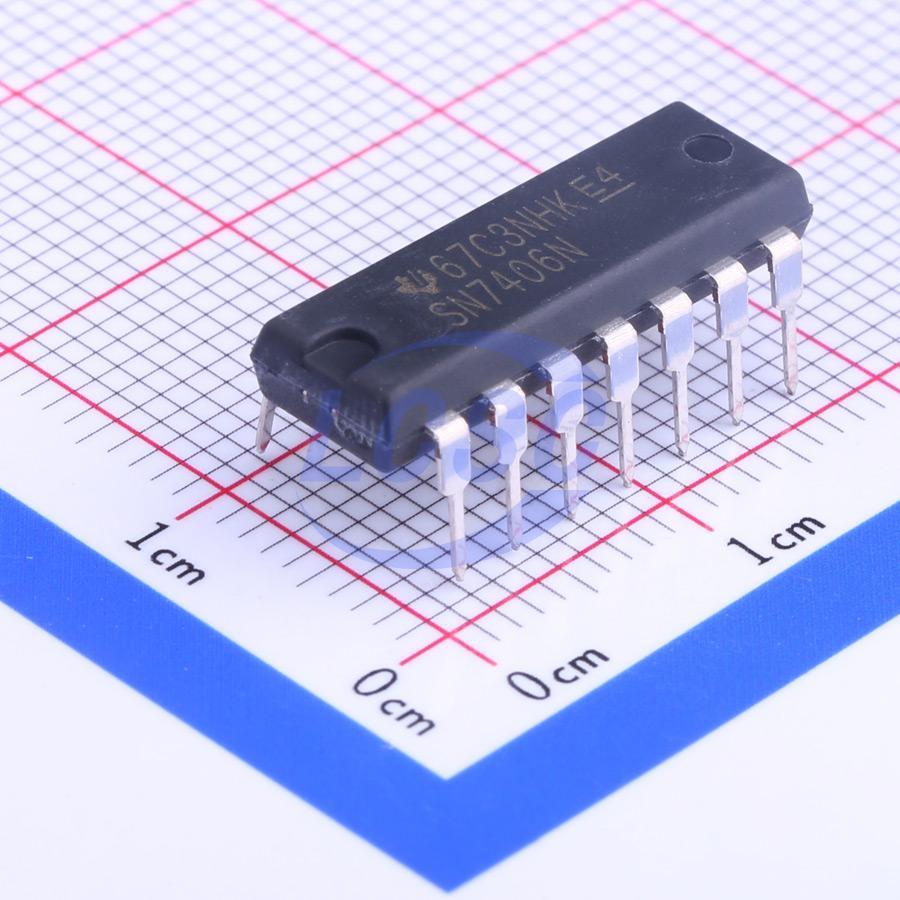

HEX INVERTER BUFFERS/DRIVERS WITH OPEN-COLLECTOR HIGH-VOLTAGE OUTPUTS
- Manufacturer
- TI
- Manufacturer part #
- SN7406N
- Store part #
- C21605
- Package / case
- DIP-14
- Category
- Gates and Inverters
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,172 in stock
#C21605
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹146.20 | ₹146.20 |
| 10+ | ₹120.07 | ₹1,200.70 |
| 25+ | ₹105.82 | ₹2,645.50 |
| 100+ | ₹89.60 | ₹8,960.00 |
| 500+ | ₹82.39 | ₹41,195.00 |
| 1,000+ | ₹79.15 | ₹79,150.00 |
1 × ₹146.20
₹146.20
excl. GST
₹172.52 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 25 per tube
SN7406N
₹146.20 for 1 + GST
Specifications
- Logic Family
- 7400
- Voltage - Supply
- 4.75V~5.25V
- Output Logic Level - Low
- 700mV
- Propagation Delay
- 23ns@5V,15pF
- Operating Temperature
- 0℃~+70℃
- Input Logic Level - High
- 2V
- Input Logic Level - Low
- 800mV
- Output Logic Level - High
- 30V
- Current - Output High(IOH)
- 250uA
- Number of Channels
- 6
- Current - Output Low(IOL)
- 40mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.84 g
Overview
These TTL hex inverter buffers/drivers feature high- voltage open- collector outputs for interfacing with high- level circuits (such as MOS) or for driving high- current loads (such as lamps or relays), and also are characterized for use as inverter buffers for driving TTL inputs. The SN5406 and SN7406 have minimum breakdown voltages of 30 V. The SN5416 and SN7416 have minimum breakdown voltages of 15 V. The maximum sink current is 30 mA for the SN5406 and SN5416, and 40 mA for the SN7406 and SN7416.
Applications
- High-level circuit interface
- Drive high-current loads such as indicator lights and relays
- Inverting buffer for TTL input driving
Key features
- TTL-to-MOS voltage level translation
- High sink current capability
- Integrated input clamp diodes for simplified system design
- Open-collector driver configuration
- Input fully compatible with most TTL circuits
- Multiple variants available with different breakdown voltage and sink current ratings
