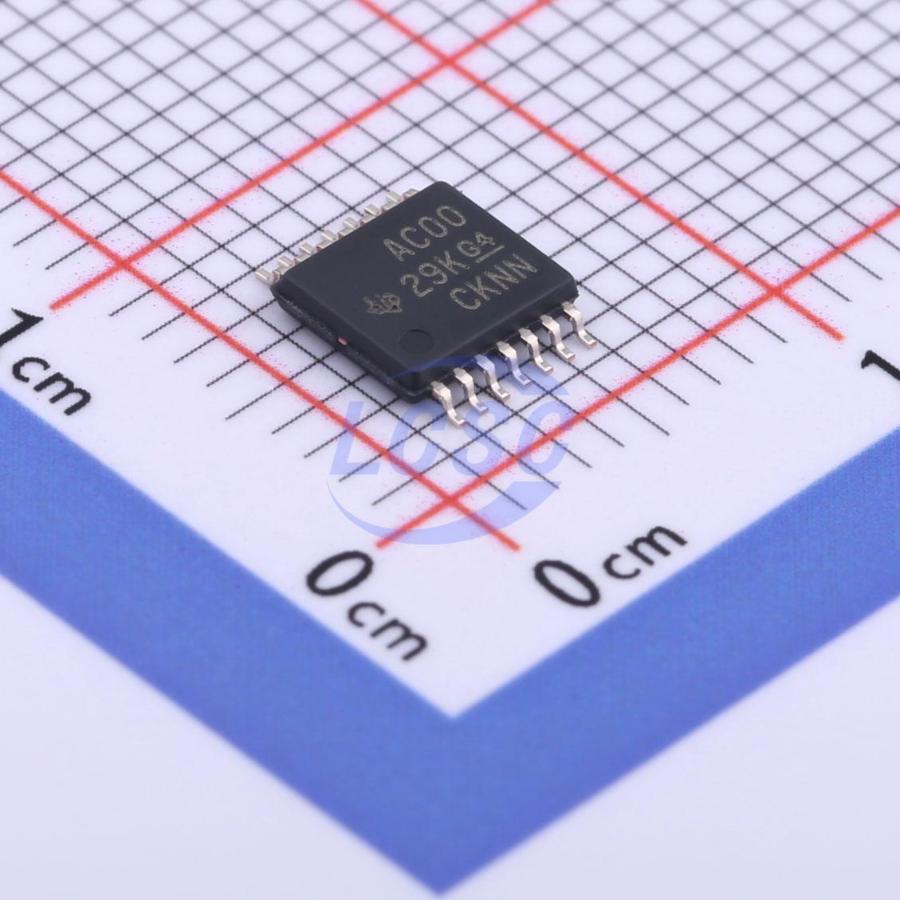

SN74AC00PWR
2uA 2V~6V 8ns@5V,50pF TSSOP-14 Gates and Inverters RoHS
TSSOP-14ROHS3 CompliantActive
QUADRUPLE 2-INPUT POSITIVE-NAND GATES
- Manufacturer
- TI
- Manufacturer part #
- SN74AC00PWR
- Store part #
- C2877146
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,695 in stock
#C2877146
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹54.93 | ₹274.65 |
| 50+ | ₹42.56 | ₹2,128.00 |
| 150+ | ₹37.27 | ₹5,590.50 |
| 500+ | ₹30.65 | ₹15,325.00 |
| 2,000+ | ₹27.70 | ₹55,400.00 |
| 4,000+ | ₹25.93 | ₹1,03,720.00 |
5 × ₹54.93
₹274.65
excl. GST
₹324.09 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74AC00PWR
₹274.65 for 5 + GST
Specifications
- Input Logic Level - Low
- 900mV~1.65V
- Logic Family
- 74AC Series
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - High
- 2.1V~3.85V
- Output Logic Level - High
- 2.9V;3.76V;4.76V
- Quiescent Current(Iq)
- 2uA
- Voltage - Supply
- 2V~6V
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 4;2
- Output Logic Level - Low
- 100mV;440mV
- Propagation Delay
- 8ns@5V,50pF
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.204 g
Overview
The ‘AC00 devices contain four independent 2-input NAND gates. Each gate performs the Boolean function of Y = (A · B) (overline) or Y = A (overline) + B (overline) in positive logic.
Key features
- 2-V to 6-V VCC Operation
- Inputs Accept Voltages to 6 V
- Max propagation delay (tpd) of 7 ns at 5 V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74AC00MTCX#C903329onsemi · TSSOP-14 | onsemi | TSSOP-14 | 18 | ₹74.82 · 18 in stock | View |
 | MC74AC00DTR2G#C903962onsemi · TSSOP-14 | onsemi | TSSOP-14 | 1,684 | ₹67.05 · 1,684 in stock | View |
 | SN74HC132QPWRQ1#C2865174TI · TSSOP-14 | TI | TSSOP-14 | 230 | ₹62.67 · 230 in stock | View |
 | 74VHC00MTCX#C238961onsemi · TSSOP-14 | onsemi | TSSOP-14 | 50 | ₹48.83 · 50 in stock | View |
 | 74HC00PW,118-JSM#C53436289JSMSEMI · TSSOP-14 | JSMSEMI | TSSOP-14 | 70 | ₹17.70 · 70 in stock | View |
