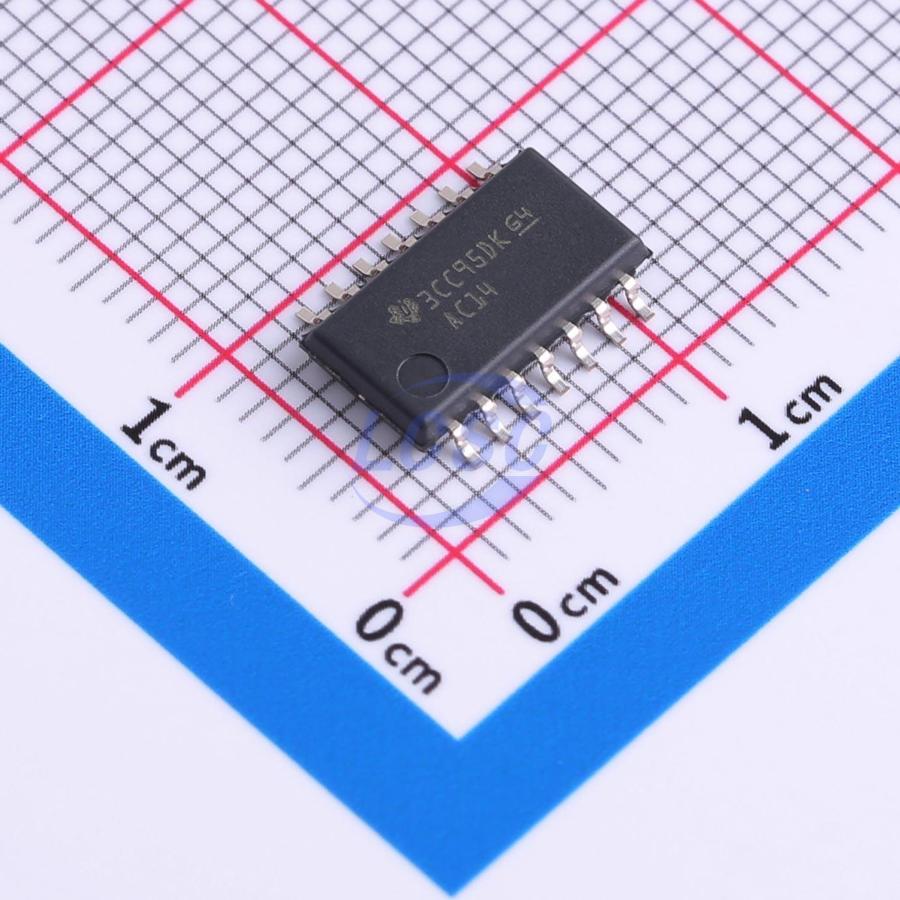

SN74AC14NSR
Schmitt trigger 2V~6V 10ns@5V,50pF 2uA 6 SOIC-14-208mil Gates and Inverters RoHS
SOIC-14-208milROHS3 CompliantActive
Six-channel Schmitt trigger inverter
- Manufacturer
- TI
- Manufacturer part #
- SN74AC14NSR
- Store part #
- C2871042
- Package / case
- SOIC-14-208mil
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,164 in stock
#C2871042
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹69.33 | ₹69.33 |
| 10+ | ₹60.26 | ₹602.60 |
| 30+ | ₹53.99 | ₹1,619.70 |
| 100+ | ₹48.81 | ₹4,881.00 |
| 500+ | ₹47.09 | ₹23,545.00 |
| 1,000+ | ₹46.23 | ₹46,230.00 |
1 × ₹69.33
₹69.33
excl. GST
₹81.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74AC14NSR
₹69.33 for 1 + GST
Specifications
- output type
- Push-pull
- Input Type
- Schmitt trigger
- Logic Family
- 74AC
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 440mV
- Propagation Delay
- 10ns@5V,50pF
- Features
- Noise suppression function
- Input Logic Level - Low
- 500mV~1.1V
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - High
- 2.2V~3.9V
- Output Logic Level - High
- 4.7V~5.4V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 6
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.351 g
Overview
These Schmitt trigger devices contain six independent inverters
Applications
- Synchronous inverted clock input
- Switch debouncing
- Digital signal inversion
Key features
- VCC operating range: 2V to 6V
- Input voltage up to 6V
- tpd maximum 9.5ns (at 8V)
