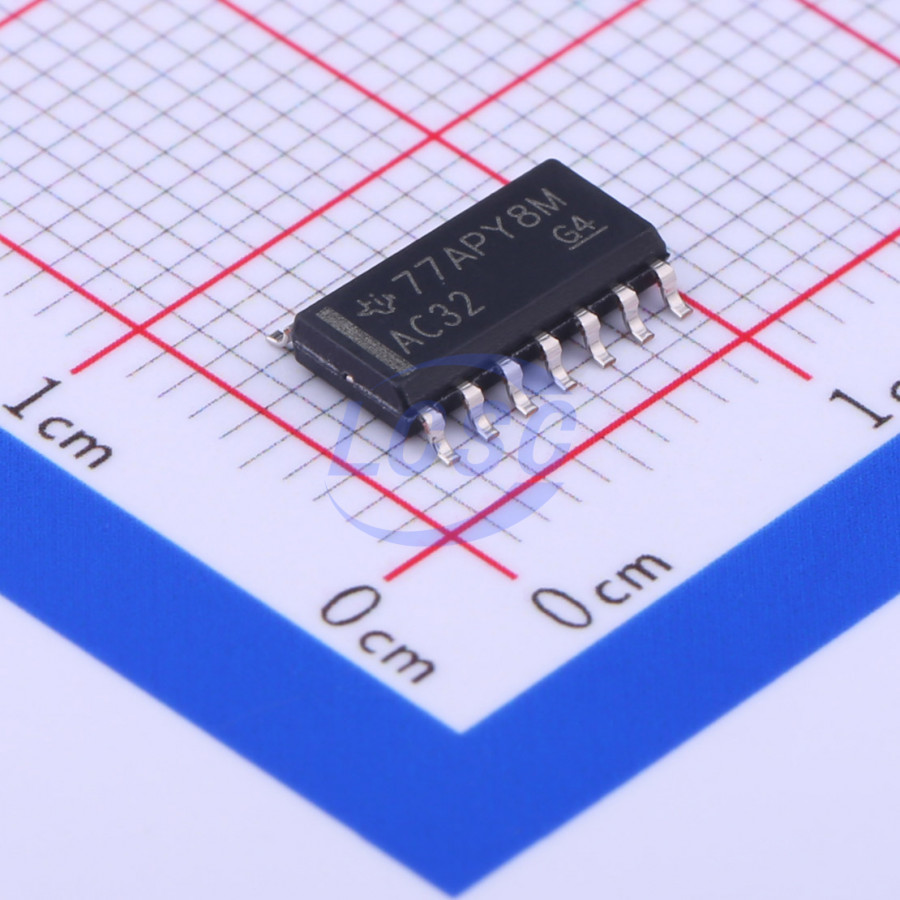

SN74AC32DR
2uA 2V~6V 7.5ns@5V,50pF SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
QUADRUPLE 2-INPUT POSITIVE-OR GATES
- Manufacturer
- TI
- Manufacturer part #
- SN74AC32DR
- Store part #
- C352943
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,710 in stock
#C352943
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹38.94 | ₹194.70 |
| 50+ | ₹31.42 | ₹1,571.00 |
| 150+ | ₹28.19 | ₹4,228.50 |
| 500+ | ₹22.48 | ₹11,240.00 |
| 2,500+ | ₹20.69 | ₹51,725.00 |
| 5,000+ | ₹19.62 | ₹98,100.00 |
5 × ₹38.94
₹194.70
excl. GST
₹229.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74AC32DR
₹194.70 for 5 + GST
Specifications
- Input Logic Level - Low
- 900mV~1.65V
- Input Logic Level - High
- 2.1V~3.85V
- Operating Temperature
- -40℃~+85℃
- Logic Family
- 74AC Series
- Output Logic Level - High
- 2.9V;4.4V;5.4V;2.46V;3.76V;4.76V
- Quiescent Current(Iq)
- 2uA
- Voltage - Supply
- 2V~6V
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 4;2
- Output Logic Level - Low
- 100mV;500mV
- Propagation Delay
- 7.5ns@5V,50pF
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.34 g
Overview
The ’AC32 devices are quadruple 2-input positive-OR gates. The devices perform the Boolean function Y = A + B or Y = A(overline) • B(overline) in positive logic.
Key features
- 2-V to 6-V VCC Operation
- Inputs Accept Voltages to 6 V
- Max tₚ₋ₚ of 7.5 ns at 5V
