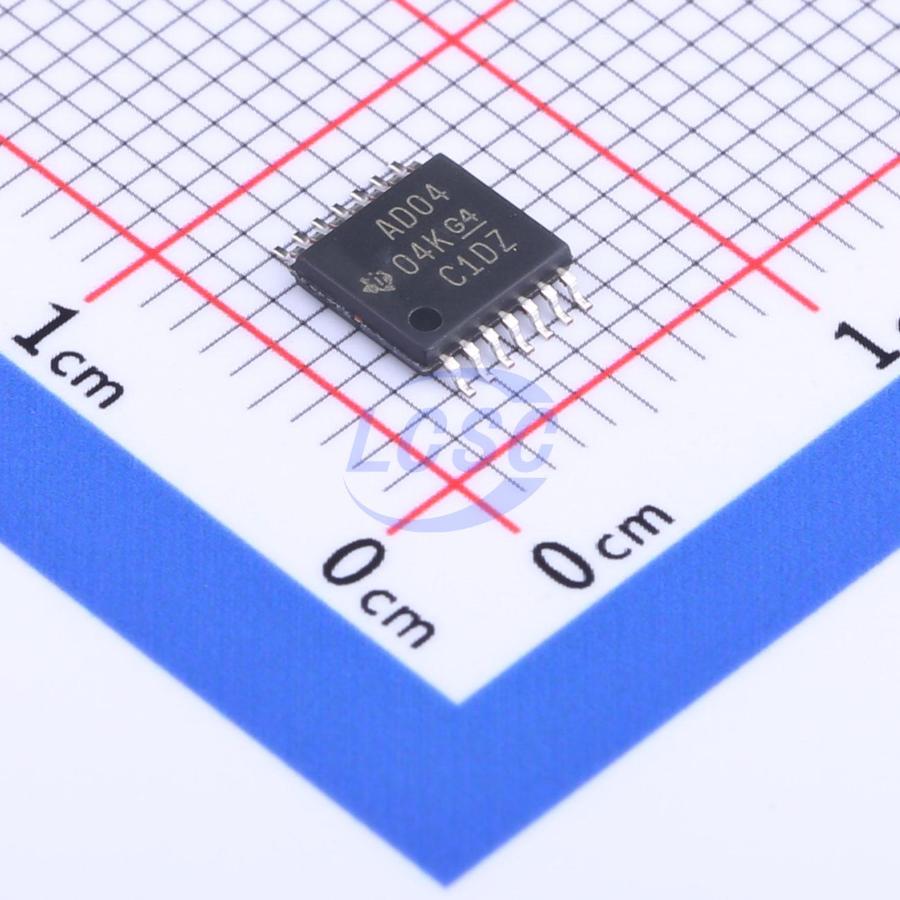

SN74ACT04PWR
4.5V~5.5V 8.5ns@5V,50pF 2uA 6 TSSOP-14 Gates and Inverters RoHS
TSSOP-14ROHS3 CompliantActive
Hex Inverters
- Manufacturer
- TI
- Manufacturer part #
- SN74ACT04PWR
- Store part #
- C913831
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,428 in stock
#C913831
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹56.36 | ₹56.36 |
| 10+ | ₹45.26 | ₹452.60 |
| 30+ | ₹40.48 | ₹1,214.40 |
| 100+ | ₹34.38 | ₹3,438.00 |
| 500+ | ₹31.55 | ₹15,775.00 |
| 1,000+ | ₹30.03 | ₹30,030.00 |
1 × ₹56.36
₹56.36
excl. GST
₹66.50 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74ACT04PWR
₹56.36 for 1 + GST
Specifications
- Logic Family
- 74ACT
- Voltage - Supply
- 4.5V~5.5V
- Output Logic Level - Low
- 440mV
- Propagation Delay
- 8.5ns@5V,50pF
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - High
- 2V
- Input Logic Level - Low
- 800mV
- Output Logic Level - High
- 3.76V~4.76V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 6
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.204 g
Overview
The ‘ACT04 devices contain six independent inverters. The devices perform the Boolean function Y = A.
Applications
- Synchronize inverted clock inputs
- Debounce a switch
- Invert a digital signal
Key features
- VCC operation of 4.5 V to 5.5 V
- Inputs accept voltages to 5.5 V
- Max tpd of 8.5 ns at 5 V
- Inputs are TTL-voltage compatible
