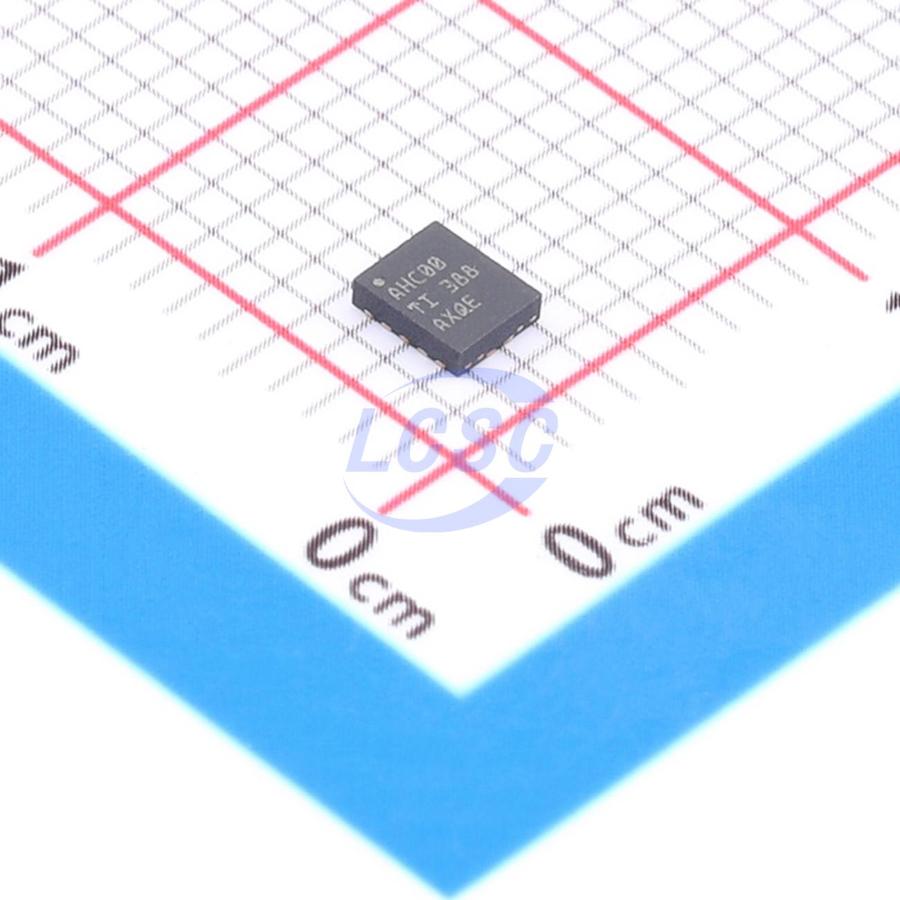

SN74AHC00BQAR

2V~5.5V 8.5ns@5V,50pF 20uA WQFN-14(2.5x3) Gates and Inverters RoHS

WQFN-14(2.5x3)ROHS3 CompliantActive

Quadruple 2-Input Positive-NAND Gates

Manufacturer: TI
Manufacturer part #: SN74AHC00BQAR
Store part #: C20345662
Package / case: WQFN-14(2.5x3)
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

993 in stock

#C20345662

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹50.54	₹50.54
10+	₹41.04	₹410.40
30+	₹36.50	₹1,095.00
100+	₹32.40	₹3,240.00
500+	₹31.32	₹15,660.00
1,000+	₹30.46	₹30,460.00

Quantity (min 1)

1 × ₹50.54

₹50.54

excl. GST

₹59.64 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74AHC00BQAR

₹50.54 for 1 + GST

Specifications

output type: Push-pull
Logic Family: 74AHC
Voltage - Supply: 2V~5.5V
Output Logic Level - Low: 100mV
Propagation Delay: 8.5ns@5V,50pF
Input Logic Level - Low: 500mV;900mV;1.65V
Input Logic Level - High: 1.5V;2.1V;3.85V
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 1.9V;2.9V;4.4V
Quiescent Current(Iq): 20uA
Current - Output High(IOH): 8mA
Number of Channels: 4;2
Current - Output Low(IOL): 8mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.074 g

Overview

Operating Range 2-V to 5.5-V- Latch-Up Performance Exceeds 250 mA Per JESD 17 The 'AHC00 devices perform the Boolean function Y = (overline{A·B}) or (Y = overline{A} +overline{B}) in positive logic.
