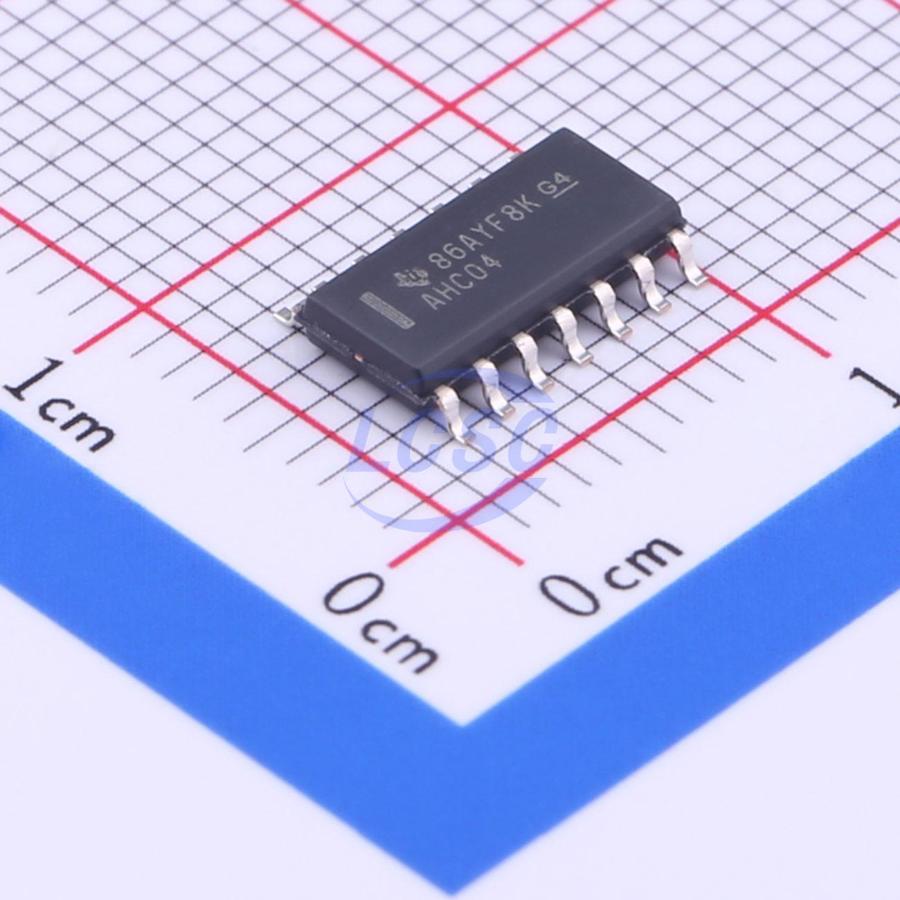

SN74AHC04DR
2V~5.5V 7.5ns@5V,50pF 2uA 6 SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
HEX INVERTERS
- Manufacturer
- TI
- Manufacturer part #
- SN74AHC04DR
- Store part #
- C8131
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,620 in stock
#C8131
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹57.29 | ₹286.45 |
| 50+ | ₹46.40 | ₹2,320.00 |
| 150+ | ₹41.73 | ₹6,259.50 |
| 500+ | ₹35.91 | ₹17,955.00 |
| 2,500+ | ₹29.34 | ₹73,350.00 |
| 5,000+ | ₹27.78 | ₹1,38,900.00 |
5 × ₹57.29
₹286.45
excl. GST
₹338.01 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74AHC04DR
₹286.45 for 5 + GST
Specifications
- Logic Family
- 74AHC
- Voltage - Supply
- 2V~5.5V
- Output Logic Level - Low
- 100mV;500mV
- Propagation Delay
- 7.5ns@5V,50pF
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - High
- 1.5V~3.85V
- Input Logic Level - Low
- 500mV~1.65V
- Output Logic Level - High
- 1.9V;2.9V;4.4V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 6
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.259 g
Overview
The 'AHC04 devices contain six independent inverters. These devices perform the Boolean function Y = A(overline).
Key features
- Operating Range 2 V to 5.5 V
- Latch-Up Performance Exceeds 250 mA Per JESD 17
- ESD Protection Exceeds JESD 22
- 2000 V Human-Body Model (A114-A)
- 200 V Machine Model (A115-A)
- 1000 V Charged-Device Model (C191)
