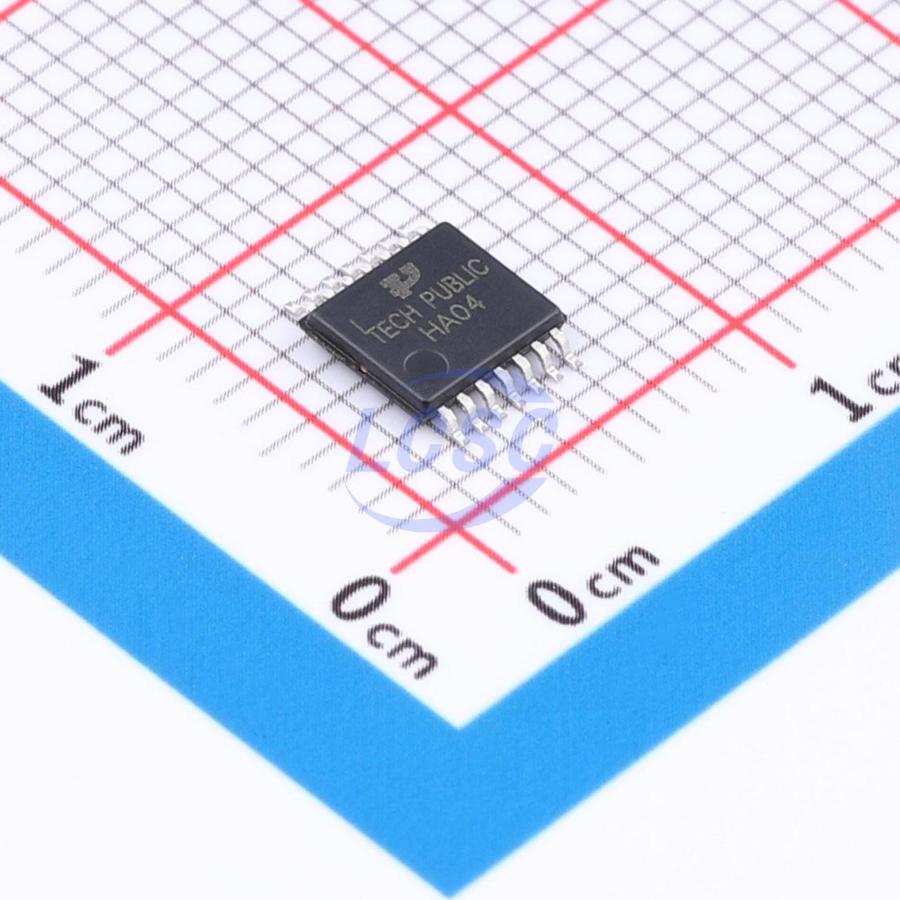

SN74AHC04PWR-TP

Schmitt trigger 10uA 2V~5.5V 6 2.9ns@4.5V~5.5V,15pF TSSOP-14 Gates and Inverters

TSSOP-14RoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: SN74AHC04PWR-TP
Store part #: C54561896
Package / case: TSSOP-14
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,500 in stock

#C54561896

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹16.03	₹80.15
50+	₹12.61	₹630.50
150+	₹10.89	₹1,633.50
500+	₹9.60	₹4,800.00
2,500+	₹8.59	₹21,475.00
5,000+	₹8.07	₹40,350.00

Quantity (min 5, multiples of 5)

5 × ₹16.03

₹80.15

excl. GST

₹94.58 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

SN74AHC04PWR-TP

₹80.15 for 5 + GST

Specifications

Input Type: Schmitt trigger
Operating Temperature: -40℃~+125℃
Logic Family: 74AHC
Input Logic Level - High: 1.7V;2V
Input Logic Level - Low: 700mV;800mV
Output Logic Level - High: 1.5V;1.9V;2.2V;2.4V;3.8V
Quiescent Current(Iq): 10uA
Voltage - Supply: 2V~5.5V
Number of Channels: 6
Propagation Delay: 2.9ns@4.5V~5.5V,15pF
Output Logic Level - Low: 100mV;450mV;300mV;400mV;550mV

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.182 g

Overview

This is a hex inverter. The inputs can be driven by 3.3 V or 5 V devices. This feature allows these devices to be used as translators in mixed 3.3 V and 5 V environments. Schmitt-trigger action on all inputs makes the circuit tolerant of slower input rise and fall times. The device is fully specified for partial-power-down applications using IOFF. The IOFF circuit disables the outputs, preventing potentially destructive backflow current through the device when it is powered down.

Key features

Wide supply voltage range: 2 V to 5.5 V
CMOS low power consumption
Overvoltage-tolerant inputs up to 5.5 V
Latch-up performance exceeds 250 mA
Direct TTL-level interface compatible
ESD protection: HBM ANSI/ESDA/JEDEC JS-003 Class A exceeds 6000 V, CDM ANSI/ESDA/JEDEC JS-002 C3 exceeds 2000 V
I<sub>OFF</sub> circuitry enables partial power-down mode operation
JEDEC standards compliant: JESD8-5 (2.3 V to 2.7 V), JESD8C (2.7 V to 3.6 V), JESD36 (4.5 V to 5.5 V)
Package: TSSOP-14
