TIDatasheet (PDF)

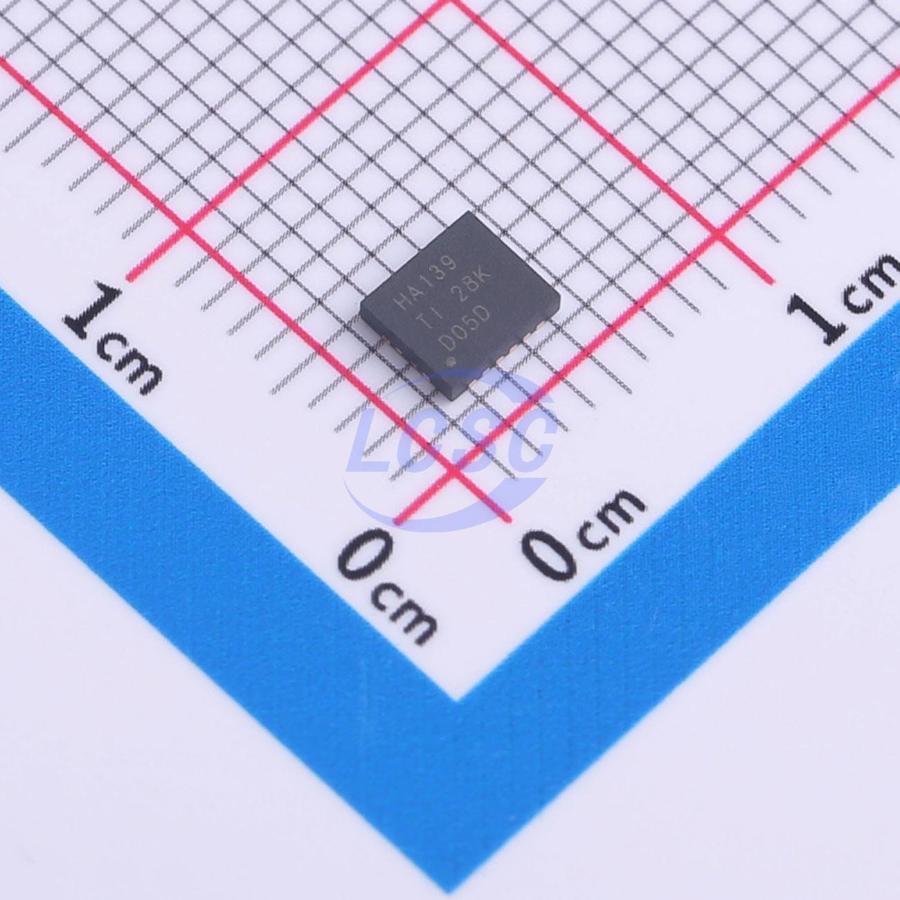

SN74AHC139RGYR
4/8 2V~5.5V 40uA 10.5ns@5V,50pF VQFN-16-EP(3.5x4) Signal Switches, Multiplexers, Decoders RoHS
VQFN-16-EP(3.5x4)ROHS3 CompliantActive
DUAL 2-LINE TO 4-LINE DECODERS/DEMULTIPLEXERS
- Manufacturer
- TI
- Manufacturer part #
- SN74AHC139RGYR
- Store part #
- C2869705
- Package / case
- VQFN-16-EP(3.5x4)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,170 in stock
#C2869705
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.91 | ₹94.55 |
| 50+ | ₹16.37 | ₹818.50 |
| 150+ | ₹15.28 | ₹2,292.00 |
| 500+ | ₹13.92 | ₹6,960.00 |
| 3,000+ | ₹13.31 | ₹39,930.00 |
| 6,000+ | ₹12.95 | ₹77,700.00 |
5 × ₹18.91
₹94.55
excl. GST
₹111.57 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AHC139RGYR
₹94.55 for 5 + GST
Specifications
- Type
- Decoder
- Series
- 74AHC
- Number of Channels
- 4/8
- Voltage - Supply
- 2V~5.5V
- Operating Temperature
- -40℃~+125℃
- Quiescent Current
- 40uA
- Current - Output High(IOH)
- 8mA
- Propagation Delay
- 10.5ns@5V,50pF
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.22 g
Overview
The ’AHC139 devices are dual 2-line to 4-line decoders/demultiplexers designed for 2-V to 5.5–VCC operation. These devices are designed to be used in high-performance memory-decoding or data-routing applications requiring very short propagation delay times. In high-performance memory systems, these decoders can be used to minimize the effects of system decoding. When used with high-speed memories utilizing a fast enable circuit, the delay times of these decoders and the enable time of the memory usually are less than the typical access time of the memory. This means that the effective system delay introduced by the decoders is negligible.
Applications
- High-performance memory decoding
- Data transmission systems
- High-speed memory systems
- Data routing
Key features
- Operating Range 2-V to 5.5-V
- Designed Specifically for High-Speed Memory Decoders and Data-Transmission Systems
- Incorporate Two Enable Inputs to Simplify Cascading and/or Data Reception
- Latch-Up Performance Exceeds 250 mA Per JESD 17
- ESD Protection Exceeds JESD 22 2000-V Human-Body Model (A114-A) 200-V Machine Model (A115-A) 1000-V Charged-Device Model (C101)
