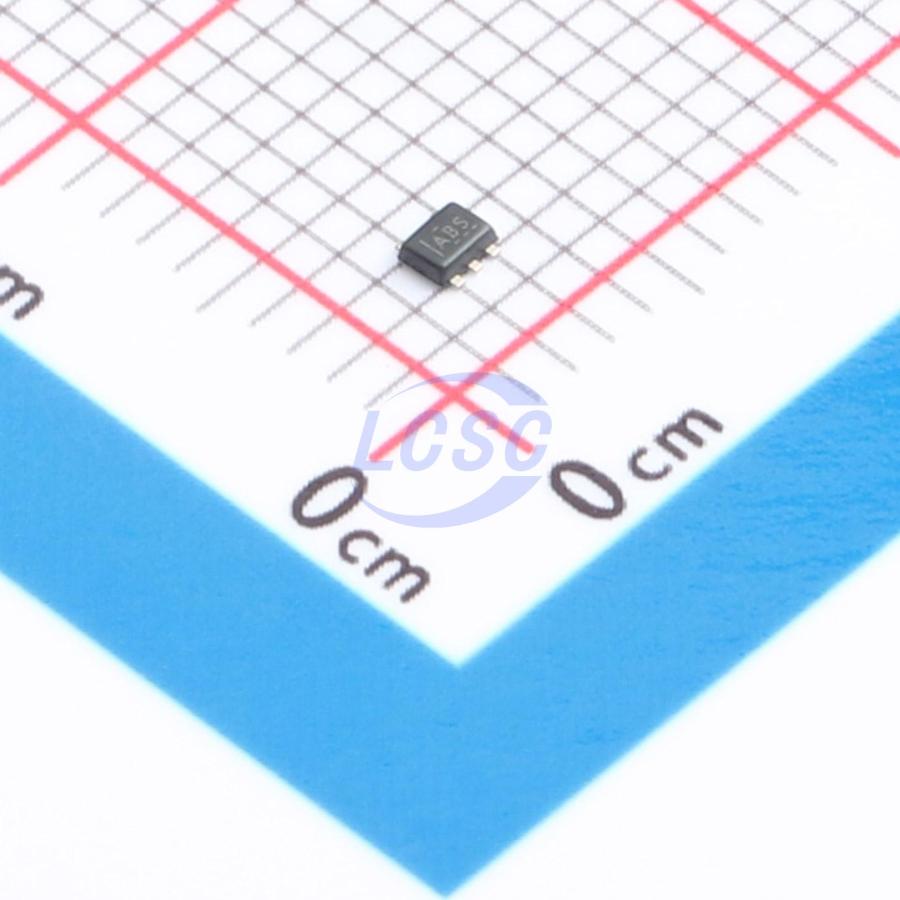

SN74AHC1G02DRLR

Schmitt trigger 2V~5.5V 1uA SOT-5X3-5 Gates and Inverters RoHS

SOT-5X3-5ROHS3 CompliantActive

Single 2-Input Positive-NOR Gate

Manufacturer: TI
Manufacturer part #: SN74AHC1G02DRLR
Store part #: C2877549
Package / case: SOT-5X3-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,505 in stock

#C2877549

Stock & price checked 12 days ago

Quantity	Unit price	Pack price
5+	₹21.29	₹106.45
50+	₹16.63	₹831.50
150+	₹14.63	₹2,194.50
500+	₹12.15	₹6,075.00
2,500+	₹11.03	₹27,575.00
4,000+	₹10.36	₹41,440.00

Quantity (min 5, multiples of 5)

5 × ₹21.29

₹106.45

excl. GST

₹125.61 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 4,000 per reel

SN74AHC1G02DRLR

₹106.45 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Input Type: Schmitt trigger
output type: Push-pull
Logic Family: 74AHC Series
Voltage - Supply: 2V~5.5V
Output Logic Level - Low: 100mV;440mV
Propagation Delay: 5.5ns@5V,15pF;6.5ns@5V,15pF;8.5ns@5V,50pF
Features: Overvoltage-tolerant input
Input Logic Level - Low: 500mV~1.65V
Input Logic Level - High: 1.5V~3.85V
Operating Temperature: -40℃~+85℃
Output Logic Level - High: 1.9V;2.9V;4.4V;2.48V;3.8V
Quiescent Current(Iq): 1uA
Current - Output High(IOH): 8mA
Number of Channels: 1;2
Current - Output Low(IOL): 8mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.031 g

Overview

This device contains a single 2-input NOR gate that performs the Boolean function Y = A(overline) x B(overline) or Y(overline) = (A + B)(overline) in positive logic.

Applications

Infotainment
Printers
Cameras
PCs, Notebooks
E-Meters

Key features

Operating Range of 2 V to 5.5 V
Max t(pd) of 6.5 ns at 5 V
Low Power Consumption, 10 - μA Max ICC
±8-mA Output Drive at 5 V
Schmitt Trigger Action at All Inputs Makes the Circuit Tolerant for Slower Input Rise and Fall Time
ESD Protection Exceeds JESD 22: 2000-V Human-Body Model, 200-V Machine Model, 1000-V Charged-Device Model
Wide operating voltage range – Operates from 2 V to 5.5 V
Allows down-voltage translation – Inputs accept voltages to 5.5 V
The low drive and slow edge rates will minimize overshoot and undershoot on the outputs
