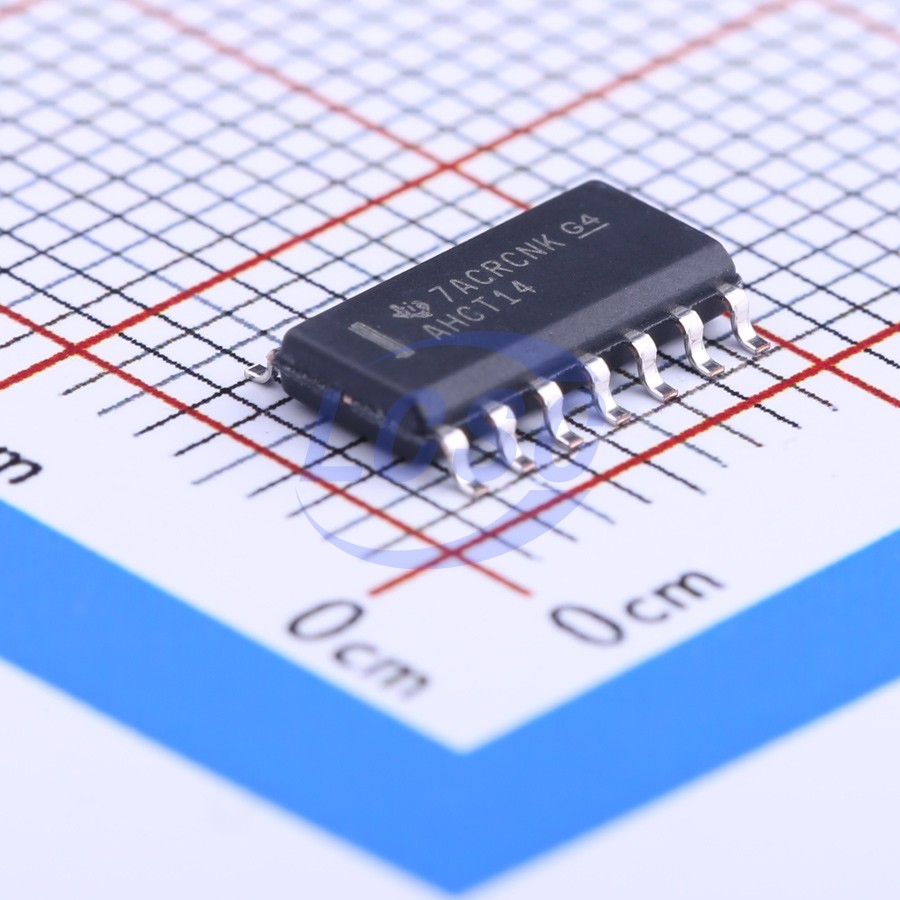

SN74AHCT14DR
Schmitt trigger 4.5V~5.5V 8ns@5V,50pF 2uA 6 SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
Hex Schmitt-Trigger Inverters
- Manufacturer
- TI
- Manufacturer part #
- SN74AHCT14DR
- Store part #
- C141316
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,679 in stock
#C141316
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹61.76 | ₹61.76 |
| 10+ | ₹48.54 | ₹485.40 |
| 30+ | ₹42.04 | ₹1,261.20 |
| 100+ | ₹36.20 | ₹3,620.00 |
| 500+ | ₹34.68 | ₹17,340.00 |
| 1,000+ | ₹33.59 | ₹33,590.00 |
1 × ₹61.76
₹61.76
excl. GST
₹72.88 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74AHCT14DR
₹61.76 for 1 + GST
Specifications
- output type
- Push-pull
- Input Type
- Schmitt trigger
- Logic Family
- 74AHCT
- Voltage - Supply
- 4.5V~5.5V
- Output Logic Level - Low
- 440mV
- Propagation Delay
- 8ns@5V,50pF
- Features
- Noise suppression function
- Input Logic Level - Low
- 500mV~600mV
- Input Logic Level - High
- 1.9V~2.1V
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 3.8V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 6
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.264 g
Overview
The SNx4AHCT14 devices contain six independent inverters. These devices perform the Boolean function Y = A(overline).
Applications
- Servers
- Network Switches
- Telecom Infrastructures
- Tests and Measurements
Key features
- Inputs are TTL-Voltage Compatible
- Latch-Up Performance Exceeds 250 mA Per JESD 17
- ESD Protection Exceeds JESD 22 2000-V Human-Body Model (A114-A) 200-V Machine Model (A115-A) 1000-V Charged-Device Model (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| SN74AHCT14QDRQ1#C2862022TI · SOIC-14 | TI | SOIC-14 | 57 | ₹44.92 · 57 in stock | View | |
 | 74AHCT14S14-13#C842301DIODES · SO-14 | DIODES | SO-14 | 15 | ₹13.04 · 15 in stock | View |
 | 74HCT14D,653#C5967Nexperia · SOIC-14 | Nexperia | SOIC-14 | 4,830 | ₹41.48 · 4,830 in stock | View |
 | SN74LS14D#C2864190TI · SOIC-14 | TI | SOIC-14 | 109 | ₹90.31 · 109 in stock | View |
 | SN7414DR#C2862409TI · SOIC-14 | TI | SOIC-14 | 18 | ₹488.70 · 18 in stock | View |
