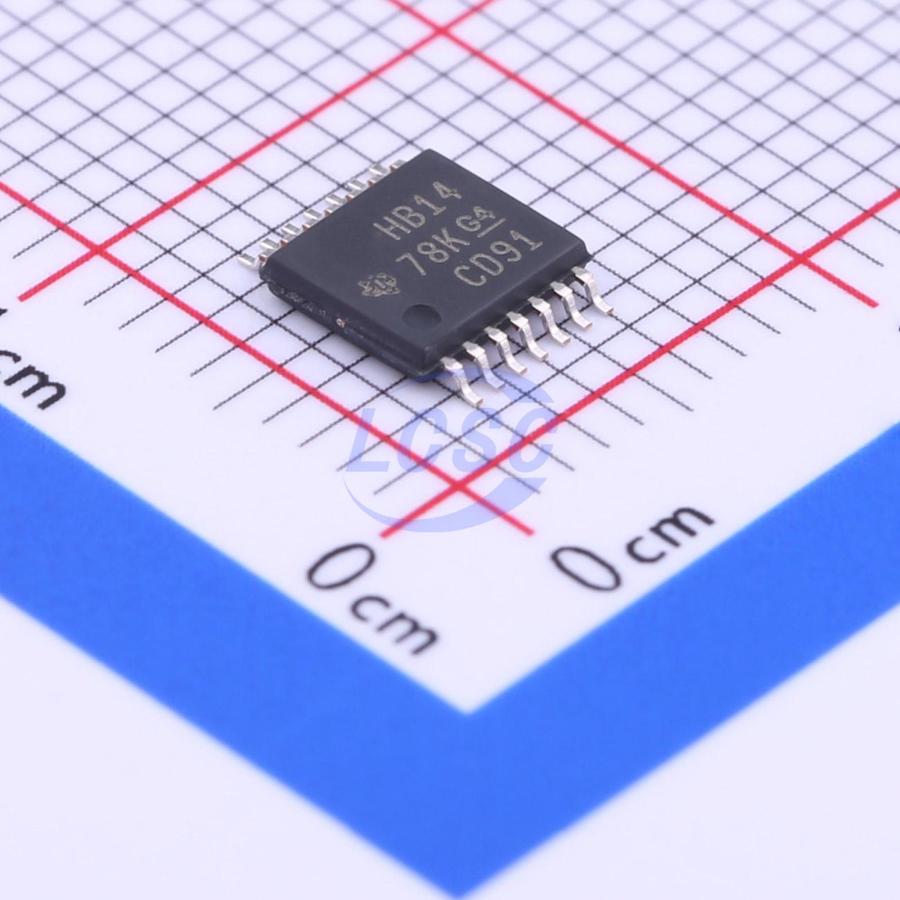

SN74AHCT14PWR
Schmitt trigger 4.5V~5.5V 8ns@5V,50pF 2uA 6 TSSOP-14 Gates and Inverters RoHS
TSSOP-14ROHS3 CompliantActive
HEX SCHMITT-TRIGGER INVERTERS
- Manufacturer
- TI
- Manufacturer part #
- SN74AHCT14PWR
- Store part #
- C7481
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,025 in stock
#C7481
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹48.85 | ₹244.25 |
| 50+ | ₹38.45 | ₹1,922.50 |
| 150+ | ₹33.99 | ₹5,098.50 |
| 500+ | ₹28.43 | ₹14,215.00 |
| 2,000+ | ₹24.67 | ₹49,340.00 |
| 4,000+ | ₹23.18 | ₹92,720.00 |
5 × ₹48.85
₹244.25
excl. GST
₹288.21 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74AHCT14PWR
₹244.25 for 5 + GST
Specifications
- output type
- Push-pull
- Logic Family
- 74AHCT
- Input Type
- Schmitt trigger
- Voltage - Supply
- 4.5V~5.5V
- Output Logic Level - Low
- 100mV~360mV
- Propagation Delay
- 8ns@5V,50pF
- Features
- Noise suppression function
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - Low
- 500mV~600mV
- Input Logic Level - High
- 1.9V~2.1V
- Output Logic Level - High
- 3.94V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 6
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.204 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74AHCT14QPWRQ1#C133795TI · TSSOP-14 | TI | TSSOP-14 | 100 | ₹45.10 · 100 in stock | View |
 | 74AHCT14PW-Q100,11#C554538Nexperia · TSSOP-14 | Nexperia | TSSOP-14 | 195 | ₹33.02 · 195 in stock | View |
 | 74VHCT14PW,118#C549166Nexperia · TSSOP-14 | Nexperia | TSSOP-14 | On request | ₹31.33 · 0 in stock | View |
 | 74AHCT14T14-13#C842311DIODES · TSSOP-14 | DIODES | TSSOP-14 | 30 | ₹16.07 · 30 in stock | View |
 | CD74HCT14PW#C2864011TI · TSSOP-14 | TI | TSSOP-14 | 87 | ₹161.79 · 87 in stock | View |
