TECH PUBLICDatasheet (PDF)

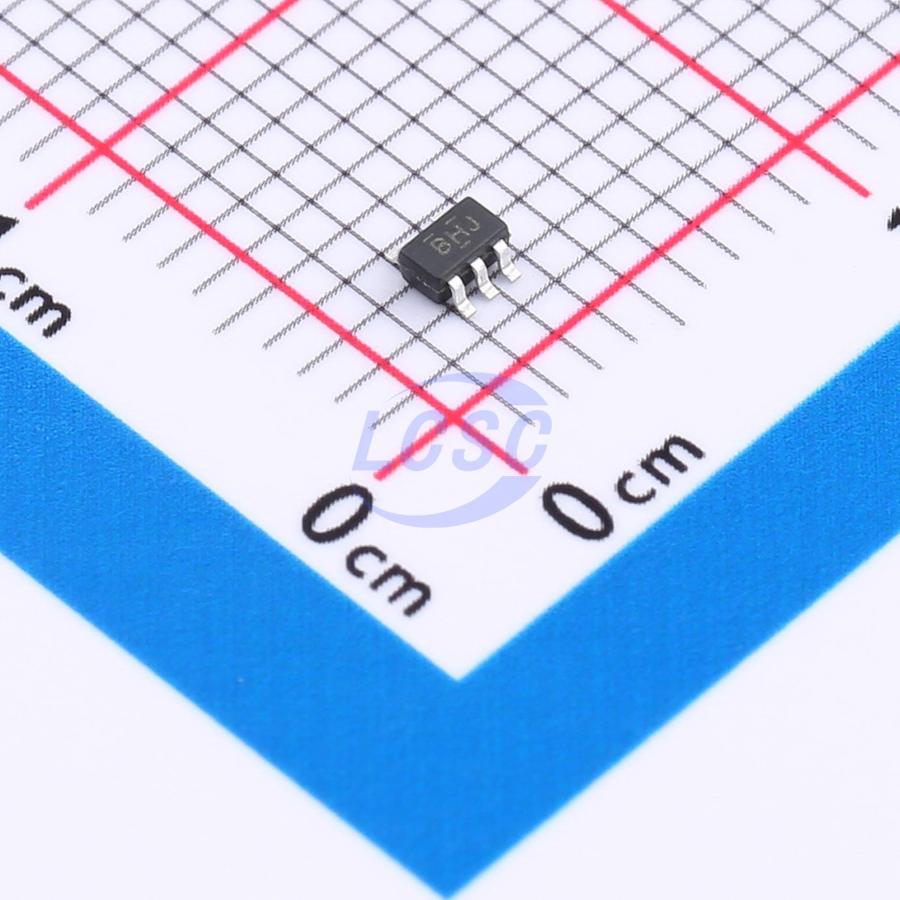

SN74AHCT1G86DCKR-TP
1uA 4.5V~5.5V 7.9ns@5V,50pF SOT-353 Gates and Inverters
SOT-353RoHSActive
2-INPUT EXCLUSIVE-OR GATE
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN74AHCT1G86DCKR-TP
- Store part #
- C42460228
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,940 in stock
#C42460228
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹3.27 | ₹32.70 |
| 100+ | ₹3.19 | ₹319.00 |
| 300+ | ₹3.14 | ₹942.00 |
| 1,000+ | ₹3.10 | ₹3,100.00 |
10 × ₹3.27
₹32.70
excl. GST
₹38.59 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AHCT1G86DCKR-TP
₹32.70 for 10 + GST
Specifications
- Logic Family
- 74AHCT
- Input Logic Level - Low
- 800mV
- Input Logic Level - High
- 2V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 4.4V;3.94V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 4.5V~5.5V
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;2
- Output Logic Level - Low
- 100mV;360mV
- Propagation Delay
- 7.9ns@5V,50pF
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
The SN74AHCT1G86DCKR-TP is a 2-input EXCLUSIVE-OR gate, it provides 3-the Function Y = A XOR B.
Applications
- Motor control: Communication induction
- Graphics card
- Advanced Driver Assistance Systems (ADAS)
- Motor Drive&Control
- DLP positive projection system
- Server motherboard
Key features
- Operation Voltage Range: 4.5 ~ 5.5 V
- Low Power Dissipation: ICC = 1 μA (Max.) @ 25 ℃
- High Speed: tpD = 5 ns (Typ)
- ESD Protection Exceeds JESD 22 -2000-V Human-Body Model (A114-A)
- -200-V Machine Model (A115-A)
- -1000-V Charged-Device Model (C101)
