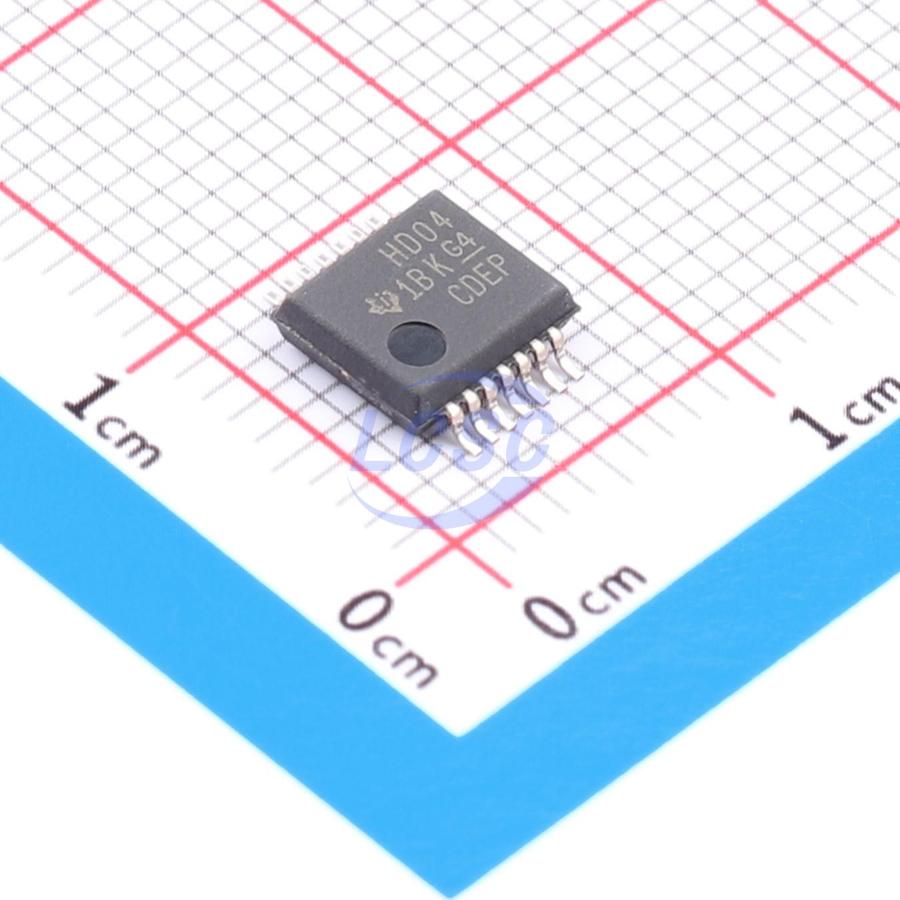

SN74AHCU04DBR

2uA 2V~5.5V 6 7ns@5V,50pF SSOP-14 Gates and Inverters RoHS

SSOP-14ROHS3 CompliantActive

HEX INVERTERS

Manufacturer: TI
Manufacturer part #: SN74AHCU04DBR
Store part #: C2870938
Package / case: SSOP-14
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

800 in stock

#C2870938

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
5+	₹21.19	₹105.95
50+	₹20.72	₹1,036.00
150+	₹20.40	₹3,060.00
500+	₹20.10	₹10,050.00

Quantity (min 5, multiples of 5)

5 × ₹21.19

₹105.95

excl. GST

₹125.02 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,000 per reel

SN74AHCU04DBR

₹105.95 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Input Logic Level - Low: 300mV~1.1V
Input Logic Level - High: 1.7V~4.4V
Logic Family: 74AHCU
Operating Temperature: -40℃~+85℃
Quiescent Current(Iq): 2uA
Voltage - Supply: 2V~5.5V
Current - Output High(IOH): 8mA
Number of Channels: 6
Propagation Delay: 7ns@5V,50pF
Current - Output Low(IOL): 8mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.611 g

Overview

The ’AHCU04 devices contain six independent inverters. These devices perform the Boolean function Y = A(overline). Internal circuitry consists of single-stage inverters that can be used in analog applications such as crystal oscillators.

Applications

Suitable for analog applications such as crystal oscillators

Key features

Operating Range 2-V to 5.5-V VCC
Unbuffered Outputs
Latch-Up Performance Exceeds 250 mA Per JESD 17
ESD Protection Exceeds JESD 22: 2000-V Human-Body Model (A114-A), 200-V Machine Model (A115-A), 1000-V Charged-Device Model (C101)
