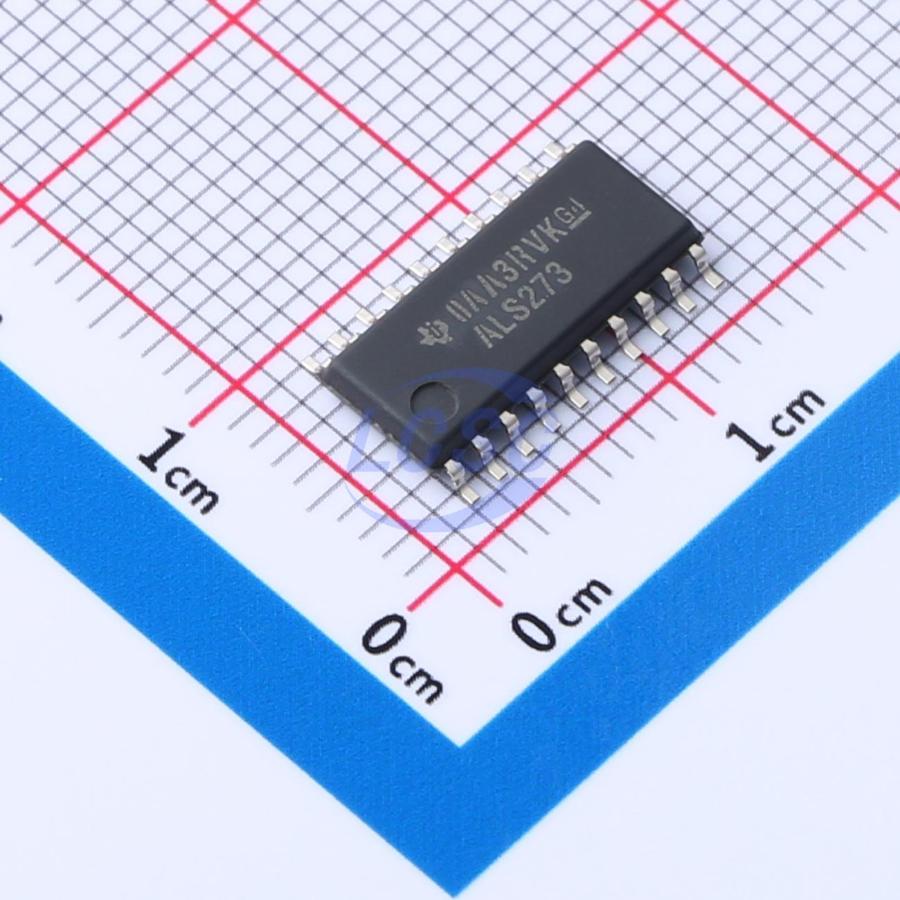

SN74ALS273NSR
4.5V~5.5V 8 1 15ns@5V,50pF SO-20-208mil Flip Flops RoHS
OCTAL D-TYPE FLIP-FLOPS WITH CLEAR
- Manufacturer
- TI
- Manufacturer part #
- SN74ALS273NSR
- Store part #
- C2677786
- Package / case
- SO-20-208mil
- Category
- Flip Flops
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,248 in stock
#C2677786
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹332.68 | ₹332.68 |
| 10+ | ₹305.52 | ₹3,055.20 |
| 30+ | ₹286.40 | ₹8,592.00 |
| 100+ | ₹269.02 | ₹26,902.00 |
| 500+ | ₹260.97 | ₹1,30,485.00 |
| 1,000+ | ₹257.72 | ₹2,57,720.00 |
1 × ₹332.68
₹332.68
excl. GST
₹392.56 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74ALS273NSR
₹332.68 for 1 + GST
Specifications
- Voltage - Supply
- 4.5V~5.5V
- Number of Bits per Element
- 8
- Operating Temperature
- 0℃~+70℃
- Series
- 74ALS Series
- Synchronous/Asynchronous
- Asynchronous
- Number of Elements
- 1
- Current - Output High(IOH)
- 2.6mA
- Current - Output Low(IOL)
- 24mA
- Setup Time
- 10ns
- Quiescent Current
- 20mA
- Hold Time
- 0ns
- Propagation Delay
- 15ns@5V,50pF
- Trigger Type
- Rising Edge
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.381 g
Overview
These octal positive-edge-triggered flip-flops utilize TTL circuitry to implement D-type flip-flop logic with a direct-clear (CLR) input. Information at the data (D) inputs meeting the setup-time requirements is transferred to the Q outputs on the positive-going edge of the clock (CLK) pulse. Clock triggering occurs at a particular voltage level and is not directly related to the transition time of the positive-going pulse. When CLK is at either the high or low level, the D input signal has no effect at the output. The SN54ALS273 is characterized for operation over the full temperature range of -55℃ to 125℃. The SN74ALS273 is characterized for operation from 0℃ to 70℃.
Applications
- Buffer/Storage Registers
- Shift Registers
- Pattern Generators
Key features
- Contain Eight Flip-Flops With Single-Rail Outputs
- Buffered Clock and Direct-Clear Inputs
- Individual Data Input to Each Flip-Flop
