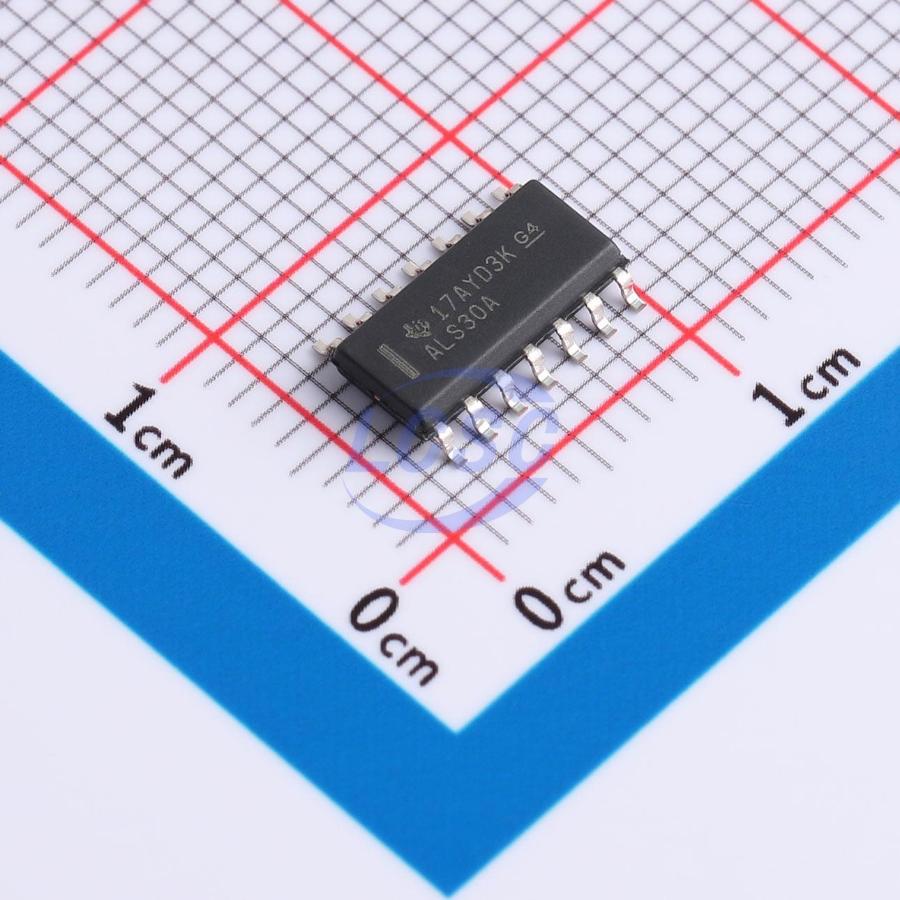

SN74ALS30ADR

4.5V~5.5V SOIC-14 Gates and Inverters RoHS

SOIC-14ROHS3 CompliantActive

Manufacturer: TI
Manufacturer part #: SN74ALS30ADR
Store part #: C2866334
Package / case: SOIC-14
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,379 in stock

#C2866334

Stock & price checked 32 h ago

Quantity	Unit price	Pack price
1+	₹196.52	₹196.52
10+	₹175.36	₹1,753.60
30+	₹160.45	₹4,813.50
100+	₹146.64	₹14,664.00
500+	₹140.37	₹70,185.00
1,000+	₹138.00	₹1,38,000.00

Quantity (min 1)

1 × ₹196.52

₹196.52

excl. GST

₹231.89 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

SN74ALS30ADR

₹196.52 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Logic Family: 74ALS Series
Operating Temperature: 0℃~+70℃
Input Logic Level - Low: 800mV
Input Logic Level - High: 2V
Voltage - Supply: 4.5V~5.5V
Current - Output High(IOH): 400uA
Number of Channels: 1;8
Output Logic Level - Low: 500mV
Current - Output Low(IOL): 8mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.86 g

Overview

These devices contain an 8-input positive-NAND gate and perform the following Boolean functions in positive logic: Y = A(overline)·B(overline)·C(overline)·D(overline)·E(overline)·F(overline)·G(overline)·H(overline) Y = A(overline)+B(overline)+C(overline)+D(overline)+E(overline)+F(overline)+G(overline) N.C. – No internal connection

Key features

8-Input Positive-NAND Gates Available in J, DW, N, and FK Packages

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
SN74LS30DR#C7759TI · SOIC-14	TI	SOIC-14	261	₹123.11 · 261 in stock	View
SN74F30DR#C2866046TI · SOIC-14	TI	SOIC-14	99	₹59.81 · 99 in stock	View
74ACT11030DR#C2868270TI · SOIC-14	TI	SOIC-14	7	₹470.15 · 7 in stock	View
74HCT30D,653#C547583Nexperia · SO-14	Nexperia	SO-14	6	₹40.59 · 6 in stock	View
SN74AS30DR#C2878594TI · SOIC-14	TI	SOIC-14	On request	₹532.55 · 0 in stock	View
