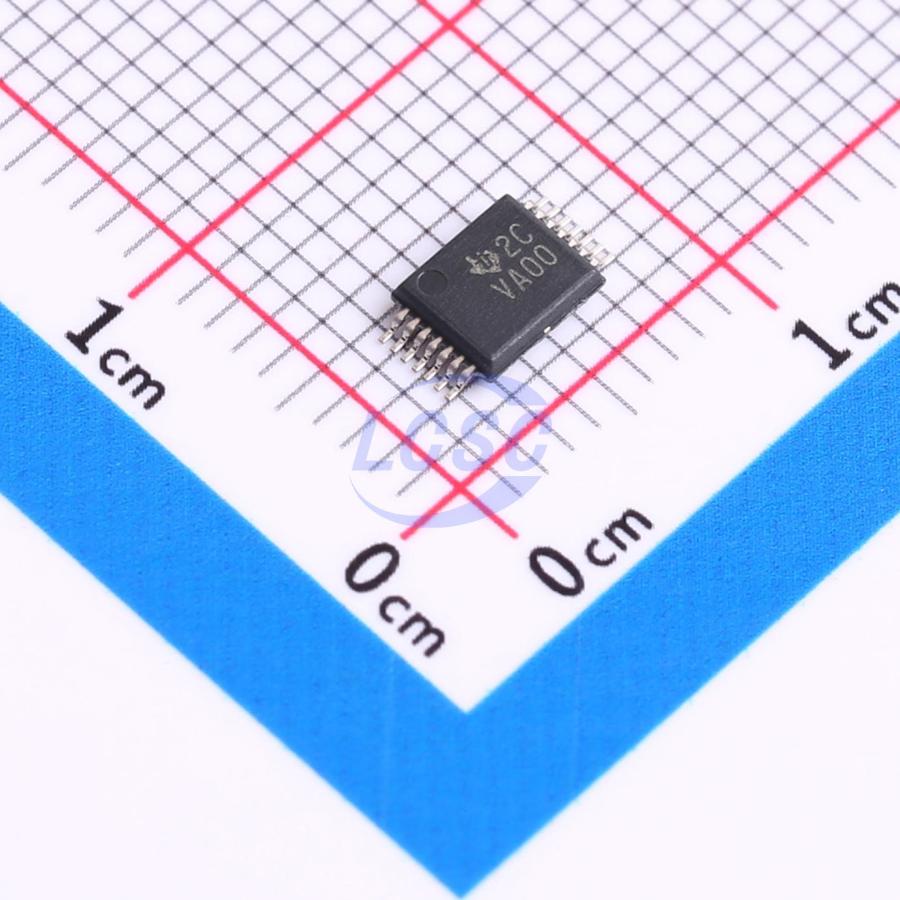

SN74ALVC00DGVR
10uA 1.65V~3.6V 3ns@3.3V,50pF TVSOP-14 Gates and Inverters RoHS
TVSOP-14ROHS3 CompliantActive
Quadruple 2-Input Positive-NAND Gate
- Manufacturer
- TI
- Manufacturer part #
- SN74ALVC00DGVR
- Store part #
- C2867423
- Package / case
- TVSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
700 in stock
#C2867423
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹39.95 | ₹199.75 |
| 50+ | ₹31.01 | ₹1,550.50 |
| 150+ | ₹27.17 | ₹4,075.50 |
| 500+ | ₹22.40 | ₹11,200.00 |
| 2,000+ | ₹20.27 | ₹40,540.00 |
| 4,000+ | ₹18.99 | ₹75,960.00 |
5 × ₹39.95
₹199.75
excl. GST
₹235.71 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74ALVC00DGVR
₹199.75 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 1.65V~3.6V
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 4;2
- Propagation Delay
- 3ns@3.3V,50pF
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.213 g
Overview
This quadruple 2-input positive-NAND gate is designed for 1.65-V to 3.6-V VCC operation. The SN74ALVC00 performs the Boolean function Y = A · B or Y = A + B in positive logic.
Key features
- Operates From 1.65 V to 3.6 V
- Max tpd of 3 ns at 3.3 V
- ±24-mA Output Drive at 3.3 V
- Latch-Up Performance Exceeds 250 mA Per JESD 17
- ESD Protection Exceeds JESD 22:
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
