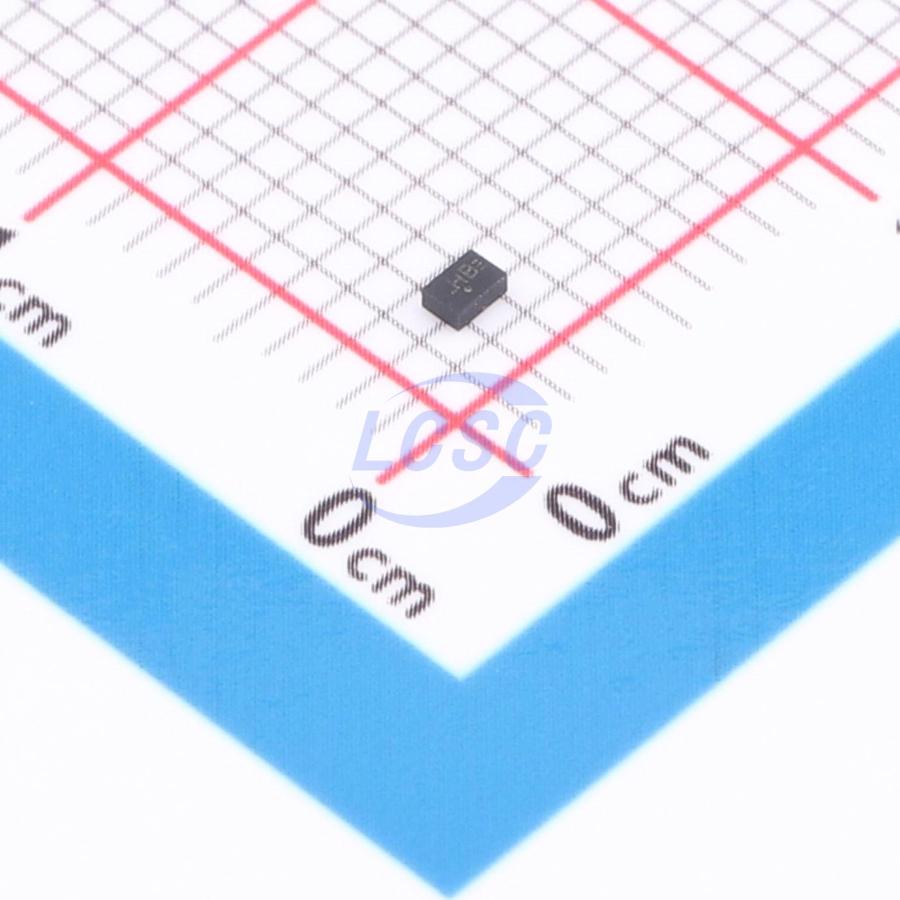

SN74AUP1G02DRYR
Schmitt trigger 800mV~3.6V 6.4ns@3.3V,30pF 500nA SON-6(1x1.5) Gates and Inverters RoHS
SON-6(1x1.5)ROHS3 CompliantActive
- Manufacturer
- TI
- Manufacturer part #
- SN74AUP1G02DRYR
- Store part #
- C2869358
- Package / case
- SON-6(1x1.5)
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C2869358
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.08 | ₹95.40 |
| 50+ | ₹18.63 | ₹931.50 |
| 150+ | ₹18.34 | ₹2,751.00 |
| 500+ | ₹18.03 | ₹9,015.00 |
5 × ₹19.08
₹95.40
excl. GST
₹112.57 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SN74AUP1G02DRYR
₹95.40 for 5 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 74AUP Series
- Voltage - Supply
- 800mV~3.6V
- Propagation Delay
- 6.4ns@3.3V,30pF
- Features
- Live insertion protection;Local shutdown mode;Rear drive protection;Overvoltage-tolerant input
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - Low
- 700mV~900mV
- Input Logic Level - High
- 1.6V~2V
- Quiescent Current(Iq)
- 500nA
- Current - Output High(IOH)
- 4mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.129 g
Overview
This single 2-input positive-NOR gate performs the Boolean function Y = A + B(overline) or Y = A(overline) x B(overline) in positive logic.
Applications
- ATCA Solutions
- Active Noise Cancellation (ANC)
- Barcode Scanner
- Blood Pressure Monitor
- CPAP Machine
- Cable Solutions
- DLP 3D Machine Vision
- Hyperspectral Imaging
- Optical Networking
- Spectroscopy
- E-Book
- Embedded PC
- Field Transmitter: Temperature or Pressure Sensor
- Fingerprint Biometrics
- HVAC: Heating, Ventilating, and Air Conditioning
- Network-Attached Storage (NAS)
- Server Motherboard and PSU
- Software Defined Radio (SDR)
- TV: High-Definition (HDTV), LCD, and Digital Video Communications System
- Wireless Data Access Card, Headset, Keyboard, Mouse, and LAN Card
- X-ray: Baggage Scanner, Medical, and Dental
Key features
- Available in the Ultra Small 0.64 mm² Package (DPW) with 0.5-mm Pitch
- Low Static-Power Consumption (Icc = 0.9 μA Max)
- Low Dynamic-Power Consumption (Δ'Cpd = 4.3 pF Typ at 3.3 V)
- Low Input Capacitance (Ci = 1.5 pF Typ)
- Low Noise – Overshoot and Undershoot < 10% of Vcc
- Supports Live Insertion, Partial-Power-Down Mode, and Back-Drive Protection
- Input Hysteresis Allows Slow Input Transition and Better Switching-Noise Immunity at the Input (Vhys = 250 mV Typ at 3.3 V)
- Wide Operating Vcc Range of 0.8 V to 3.6 V
- Optimized for 3.3-V Operation
- 3.6-V I/O Tolerant to Support Mixed-Mode Signal Operation
- tpd = 4.6 ns Max at 3.3 V
- Suitable for Point-to-Point Applications
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- ESD Performance Tested Per JESD 22
- 2000-V Human-Body Model (A114-B, Class II)
- 1000-V Charged-Device Model (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74AUP1G02FZ4-7#C842383DIODES · X2-DFN1410-6 | DIODES | X2-DFN1410-6 | 80 | ₹12.11 · 80 in stock | View |
| SN74AUP1G02DRY2#C2865678TI · SON-6(1x1.5) | TI | SON-6(1x1.5) | On request | ₹30.69 · 0 in stock | View | |
| 74AUP1G02GM,115#C554897Nexperia · XSON-6(1x1.5) | Nexperia | XSON-6(1x1.5) | On request | ₹41.16 · 0 in stock | View | |
| 74AUP1G02GM,132#C554898Nexperia · XSON-6(1x1.5) | Nexperia | XSON-6(1x1.5) | On request | ₹41.07 · 0 in stock | View | |
