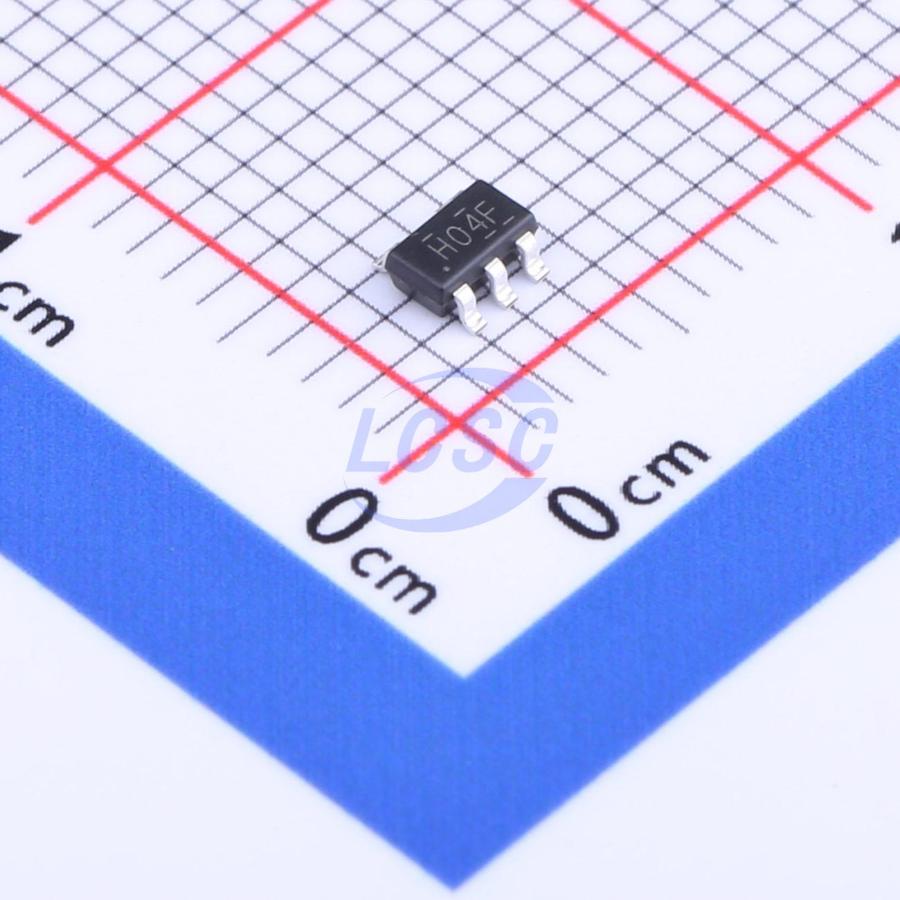

SN74AUP1G04DBVR

The SN74AUP1G04 device is a single inverter gate performs the Boolean function Y = A(overline).

Applications

• ATCA Solutions
• Active Noise Cancellation (ANC)
• Barcode Scanner
• Blood Pressure Monitor
• CPAP Machine
• Cable Solutions
• DLP 3D Machine Vision, Hyperspectral Imaging, Optical Networking, and Spectroscopy
• E-Book
• Embedded PC
• Field Transmitter: Temperature or Pressure Sensor
• Fingerprint Biometrics
• HVAC: Heating, Ventilating, and Air Conditioning
• Network-Attached Storage (NAS) Server
• Motherboard and PSU
• Software Defined Radio (SDR)
• TV: High-Definition (HDTV), LCD, and Digital Video Communications System
• Wireless Data Access Card, Headset, Keyboard, Mouse, and LAN Card
• X-ray: Baggage Scanner, Medical, and Dental

Key features

• Available in the Ultra Small 0.64 mm² Package (DPW) with 0.5-mm Pitch
• Low Static-Power Consumption (Icc = 0.9 μA Max)
• Low Dynamic-Power Consumption (Cpd = 4.1 pF Typ at 3.3 V)
• Low Input Capacitance (Ci = 1.5 pF Typ)
• Low Noise −Overshoot and Undershoot < 10% of Vcc
• Supports Live Insertion, Partial-Power-Down Mode, and Back-Drive Protection
• Input Hysteresis Allows Slow Input Transition and Better Switching Noise Immunity at the Input (Vhys = 250 mV Typ at 3.3 V)
• Wide Operating Vcc Range of 0.8 V to 3.6 V
• Optimized for 3.3-V Operation
• 3.6-V I/O Tolerant to Support Mixed-Mode Signal Operation
• Δfpd = 3.9 ns Max at 3.3 V
• Suitable for Point-to-Point Applications
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Performance Tested Per JESD 22
• 2000-V Human-Body Model (A114-B, Class II)
• 1000-V Charged-Device Model (C101)
