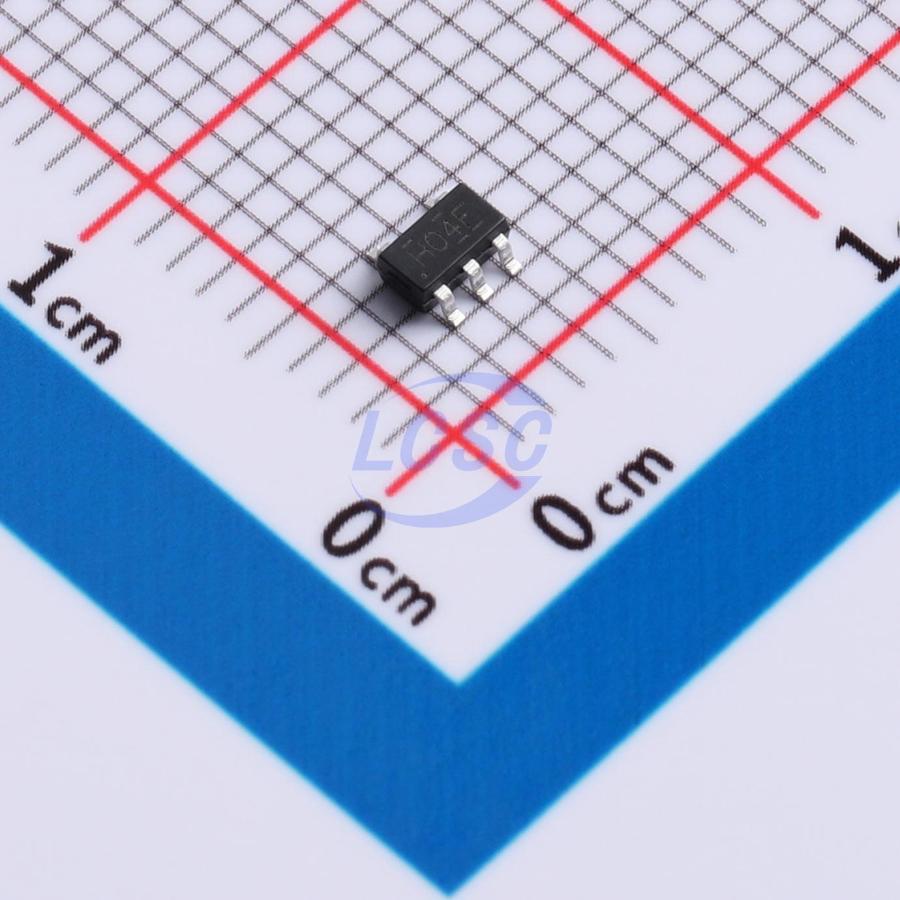

SN74AUP1G04DBVR-TP
800mV~3.6V 2.1ns@3.3V,30pF 500nA 1 SOT-23-5 Gates and Inverters RoHS
SOT-23-5ROHS CompliantActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN74AUP1G04DBVR-TP
- Store part #
- C49333170
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,300 in stock
#C49333170
Stock & price checked 34 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.02 | ₹60.20 |
| 100+ | ₹4.76 | ₹476.00 |
| 300+ | ₹4.13 | ₹1,239.00 |
| 3,000+ | ₹3.65 | ₹10,950.00 |
| 6,000+ | ₹3.28 | ₹19,680.00 |
| 9,000+ | ₹3.10 | ₹27,900.00 |
10 × ₹6.02
₹60.20
excl. GST
₹71.04 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AUP1G04DBVR-TP
₹60.20 for 10 + GST
Specifications
- Logic Family
- 74AUP
- Voltage - Supply
- 800mV~3.6V
- Output Logic Level - Low
- 100mV;310mV;440mV
- Propagation Delay
- 2.1ns@3.3V,30pF
- Features
- Power shutdown protection;Power-off protection function
- Input Logic Level - High
- 1.6V;2V
- Input Logic Level - Low
- 700mV;900mV
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.11V;1.32V;2.05V;1.9V;2.72V;2.6V
- Quiescent Current(Iq)
- 500nA
- Number of Channels
- 1
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.1 g
Overview
SN74AUP1G04 is a single inverter gate with the function Y = Ā. This device features integrated power-off protection circuitry to prevent damage during power-down conditions.
Applications
- AV receivers
- Audio docking stations
- Blu-ray players & home theater systems
- Embedded PCs
- Personal digital assistants
- Telecom/server AC/DC power supplies
- Solid-state drives
- Wireless headsets, keyboards & mice
Key features
- Wide supply voltage range: 0.8V to 3.6V
- Inputs accept voltages up to 3.6V
- IOFF supports partial power-down mode
- Low quiescent current; max Icc = 0.5μA
- ESD protection exceeds JESD 22: HBM 2000V, MM 200V, CDM 1000V
