TECH PUBLICDatasheet (PDF)

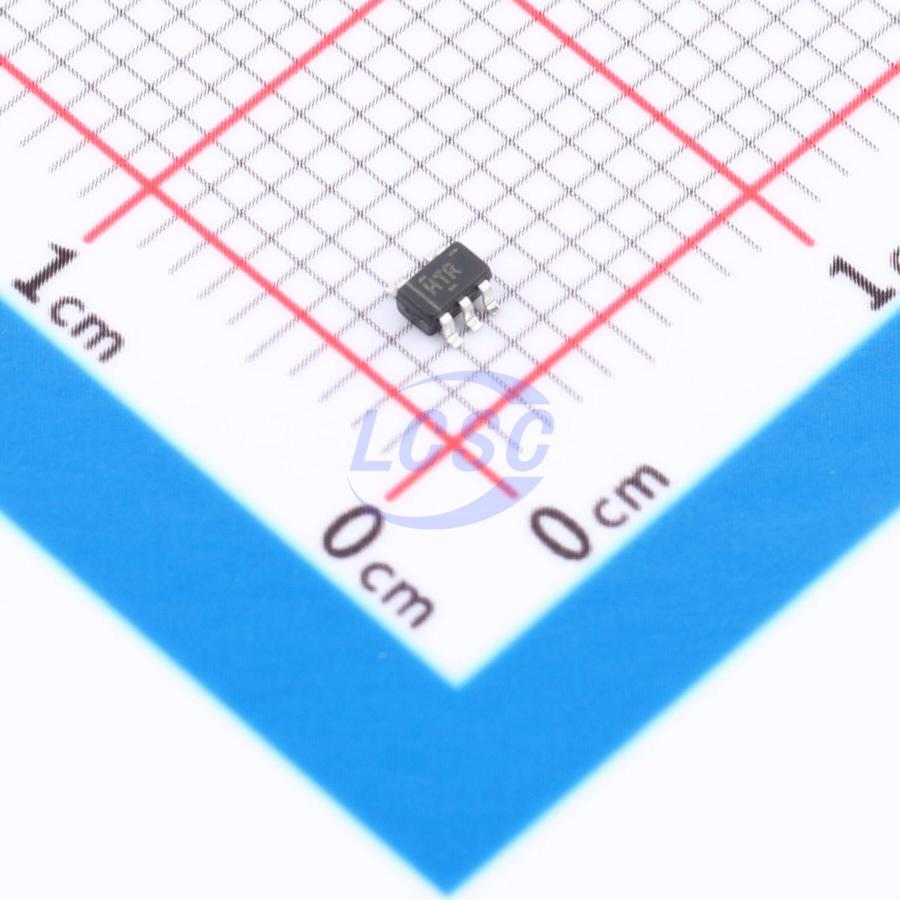

SN74AUP1G06DCKR-TP
800mV~3.6V 6.5ns@3.3V,30pF 500nA 1 SOT-353 Gates and Inverters RoHS
SOT-353ROHS CompliantActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN74AUP1G06DCKR-TP
- Store part #
- C51886136
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,180 in stock
#C51886136
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.73 | ₹53.65 |
| 50+ | ₹8.45 | ₹422.50 |
| 150+ | ₹7.30 | ₹1,095.00 |
| 500+ | ₹6.46 | ₹3,230.00 |
| 3,000+ | ₹5.77 | ₹17,310.00 |
| 6,000+ | ₹5.42 | ₹32,520.00 |
5 × ₹10.73
₹53.65
excl. GST
₹63.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AUP1G06DCKR-TP
₹53.65 for 5 + GST
Specifications
- Logic Family
- 74AUP
- Voltage - Supply
- 800mV~3.6V
- Propagation Delay
- 6.5ns@3.3V,30pF
- Output Logic Level - Low
- 100mV;310mV;440mV
- Features
- Power shutdown protection
- Input Logic Level - High
- 1.6V;2V
- Input Logic Level - Low
- 700mV;900mV
- Operating Temperature
- -40℃~+125℃
- Quiescent Current(Iq)
- 500nA
- Number of Channels
- 1
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Overview
The SN74AUP1G06 is a single inverter buffer with open-drain output, providing the function Y = Ā in positive logic. The open-drain output can be connected with other open-drain outputs to implement active-low wired-OR or active-high wired-AND functions.
Applications
- AV receivers
- Audio docking stations
- Blu-ray players and home theater systems
- Embedded PCs
- Personal digital assistants
Key features
- Wide supply voltage range: 0.8V to 3.6V
- Inputs accept voltages up to 3.6V
- I_OFF supports partial power-down mode
- Low quiescent current: I_CC = 0.5μA (maximum)
- ESD protection exceeds JESD 22 (2000V HBM, 200V MM, 1000V CDM)
