TECH PUBLIC

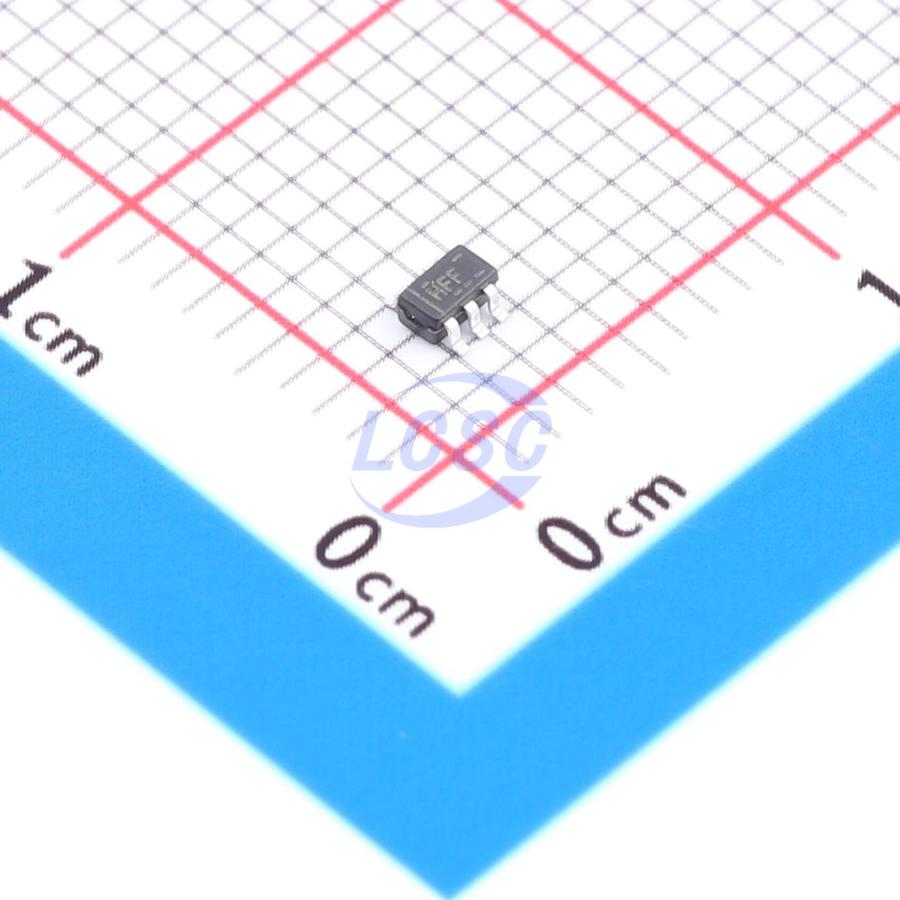

SN74AUP1G14DCKR-TP

Schmitt trigger 800mV~3.6V 3ns@3.3V,5pF 500nA 1 SOT-353 Gates and Inverters RoHS

SOT-353ROHS CompliantActive

Manufacturer: TECH PUBLIC
Manufacturer part #: SN74AUP1G14DCKR-TP
Store part #: C51939604
Package / case: SOT-353
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,760 in stock

#C51939604

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
10+	₹5.52	₹55.20
100+	₹4.33	₹433.00
300+	₹3.74	₹1,122.00
3,000+	₹3.29	₹9,870.00
6,000+	₹2.94	₹17,640.00
9,000+	₹2.75	₹24,750.00

Quantity (min 10, multiples of 10)

10 × ₹5.52

₹55.20

excl. GST

₹65.14 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74AUP1G14DCKR-TP

₹55.20 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Logic Family: 74AUP
Input Type: Schmitt trigger
Voltage - Supply: 800mV~3.6V
Propagation Delay: 3ns@3.3V,5pF
Output Logic Level - Low: 100mV;310mV;440mV
Features: Power shutdown protection;Noise suppression function
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 1.11V;1.32V;2.05V;1.9V;2.72V;2.6V
Quiescent Current(Iq): 500nA
Current - Output High(IOH): 4mA
Number of Channels: 1
Current - Output Low(IOL): 4mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 1 g

Overview

This device functions as a standalone gate with Schmitt-trigger inputs, supporting slow input transitions and providing improved switching noise immunity at the inputs. The device ensures ultra-low static and dynamic power consumption across the entire VCC range of 0.8V to 3.6V.

Applications

AV receivers
Audio docking stations
Blu-ray players and home theater systems
Embedded PCs
Personal digital assistants
Solid-state drives

Key features

Wide supply voltage range: 0.8V to 3.6V
Inputs accept voltages up to 3.6V
I_OFF supports partial power-down mode
Low quiescent current; I_CC = 0.5μA (maximum)
ESD protection exceeds JESD 22: 2000-V HBM (A114-A), 200-V MM (A115-A), 1000-V CDM (C101)
