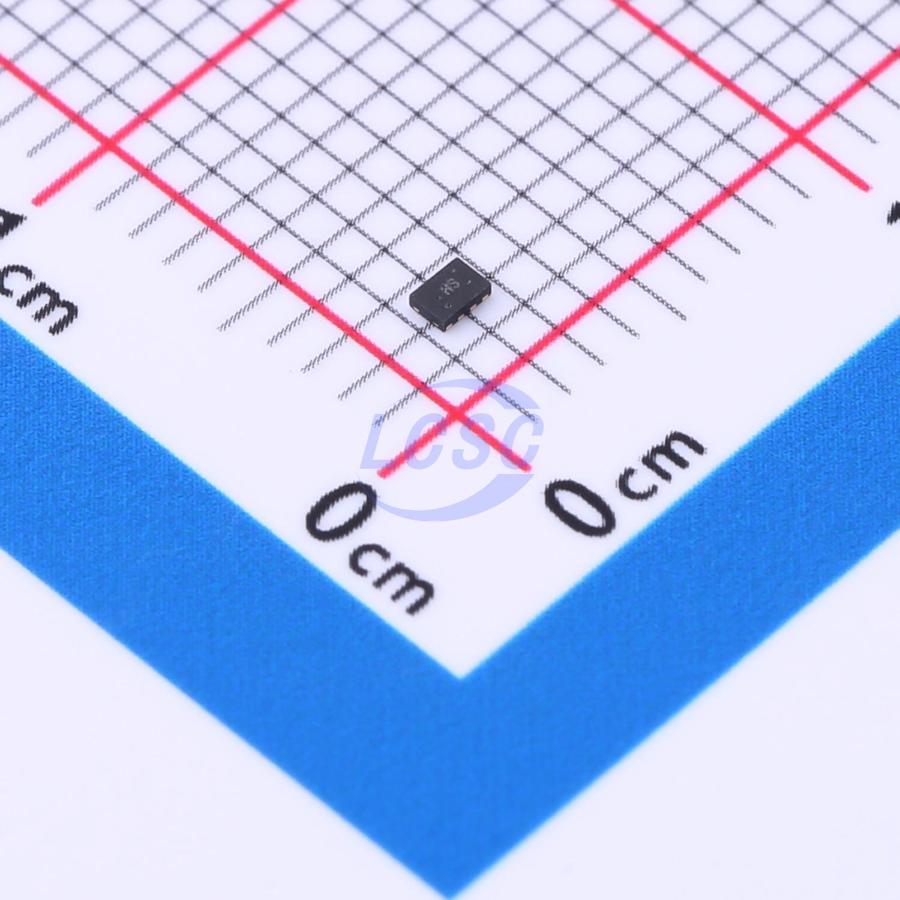

SN74AUP1G74DQER

The AUP family ensures a very low static- and dynamic-power consumption across the entire VCC range of 0.8 V to 3.6 V, resulting in increased battery life. This product also maintains excellent signal integrity.

Applications

• Servers
• LED Displays
• Network Switches
• Telecom Infrastructure
• Motor Drivers
• I/O Expanders

Key features

• Available in the Texas Instruments NanoStar Package
• Low Static-Power Consumption: ICC = 0.9 μA Maximum
• Low Dynamic-Power Consumption: Cpd = 5.5 pF Typical at 3.3 V
• Low Input Capacitance: Ci = 1.5 pF Typical
• Low Noise – Overshoot and Undershoot < 10% of VCC
• Supports Partial-Power-Down Mode Operation
• Schmitt-Trigger Action Allows Slow Input Transition and Better Switching Noise Immunity at the Input (Vhys = 250 mV Typical at 3.3 V)
• Wide Operating VCC Range of 0.8 V to 3.6 V
• Optimized for 3.3-V Operation
• 3.6-V I/O Tolerant to Support Mixed-Mode Signal Operation
• Δfpd = 5 ns Maximum at 3.3 V
• Suitable for Point-to-Point Applications
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Performance Tested Per JESD 22
• 2000-V Human-Body Model (A114-B, Class II)
• 1000-V Charged-Device Model (C101)
