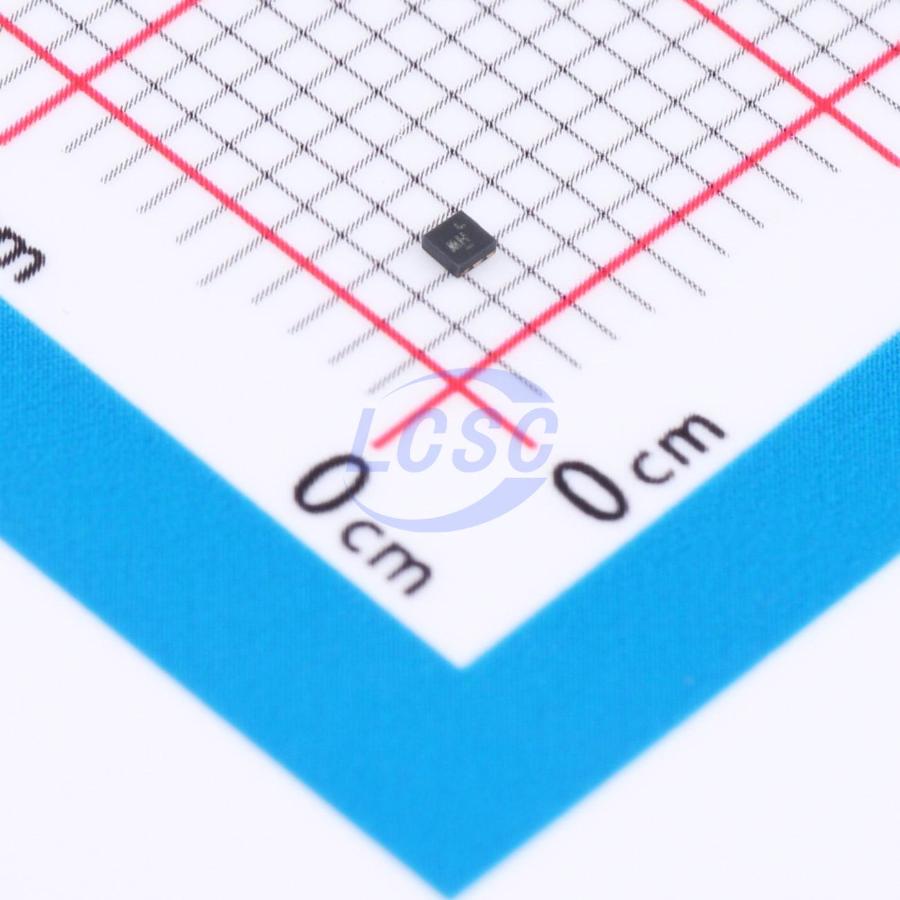

SN74AUP1G79DSFR

800mV~3.6V 1 5.8ns@3.3V,30pF X2-SON-6(1x1) Flip Flops RoHS

X2-SON-6(1x1)ROHS3 CompliantActive

Manufacturer: TI
Manufacturer part #: SN74AUP1G79DSFR
Store part #: C2677981
Package / case: X2-SON-6(1x1)
Category: Flip Flops
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,026 in stock

#C2677981

Stock & price checked 29 h ago

Quantity	Unit price	Pack price
1+	₹46.87	₹46.87
10+	₹37.36	₹373.60
30+	₹32.84	₹985.20
100+	₹28.72	₹2,872.00
500+	₹27.65	₹13,825.00
1,000+	₹26.79	₹26,790.00

Quantity (min 1)

1 × ₹46.87

₹46.87

excl. GST

₹55.31 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

SN74AUP1G79DSFR

₹46.87 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Voltage - Supply: 800mV~3.6V
Output Type: Push-Pull
Operating Temperature: -40℃~+85℃
Series: 74AUP Series
Number of Elements: 1
Current - Output High(IOH): 4mA
Current - Output Low(IOL): 4mA
Setup Time: 600ps
Quiescent Current: 500nA
Hold Time: 0ps
Propagation Delay: 5.8ns@3.3V,30pF
Trigger Type: Rising Edge

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.001 g

Overview

The AUP family assures a very-low static and dynamic power consumption across the entire VCC range of 0.8 V to 3.6 V, thus resulting in an increased battery life. The AUP devices also maintain excellent signal integrity. The SN74AUP1G79 is a single positive-edge-triggered D-type flip-flop. When data at the data (D) input meets the setup-time requirement, the data is transferred to the Q output on the positive-going edge of the clock pulse. Clock triggering occurs at a voltage level and is not directly related to the rise time of the clock pulse. Following the hold-time interval, data at the D input can be changed without affecting the levels at the outputs. NanoStar package technology uses the die as the package. The SN74AUP1G79 device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs when the device is powered down. This inhibits current backflow into the device which prevents damage to the device.

Applications

Barcode Scanner
Cable Solutions
E-Book
Embedded PC Field Transmitter: Temperature or Pressure Sensor
Fingerprint Biometrics
HVAC: Heating, Ventilating, and Air Conditioning
Network-Attached Storage (NAS)
Server Motherboard and PSU
Software Defined Radio (SDR)
TV: High-Definition (HDTV), LCD, and Digital
Video Communications System
Wireless Data Access Card, Headset, Keyboard, Mouse, and LAN Card

Key features

Available in the Texas Instruments NanoStar Package
Low Static-Power Consumption: ICC = 0.9 μA Maximum
Low Dynamic-Power Consumption: Cpd = 3 pF Typical at 3.3 V
Low Input Capacitance: Ci = 1.5 pF Typical
Low Noise: Overshoot and Undershoot < 10% of VCC
Ioff Supports Partial Power-Down-Mode Operation
Input Hysteresis Allows Slow Input Transition and Better Switching Noise Immunity at the Input (Vhys = 250 mV Typical at 3.3 V)
Wide Operating VCC Range of 0.8 V to 3.6 V
Optimized for 3.3-V Operation
3.6-V I/O Tolerant to Support Mixed-Mode Signal Operation
Δtpd = 4 ns Maximum at 3.3 V
Suitable for Point-to-Point Applications
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Performance Tested Per JESD 22
2000-V Human-Body Model (A114-B, Class II)
1000-V Charged-Device Model (C101)
