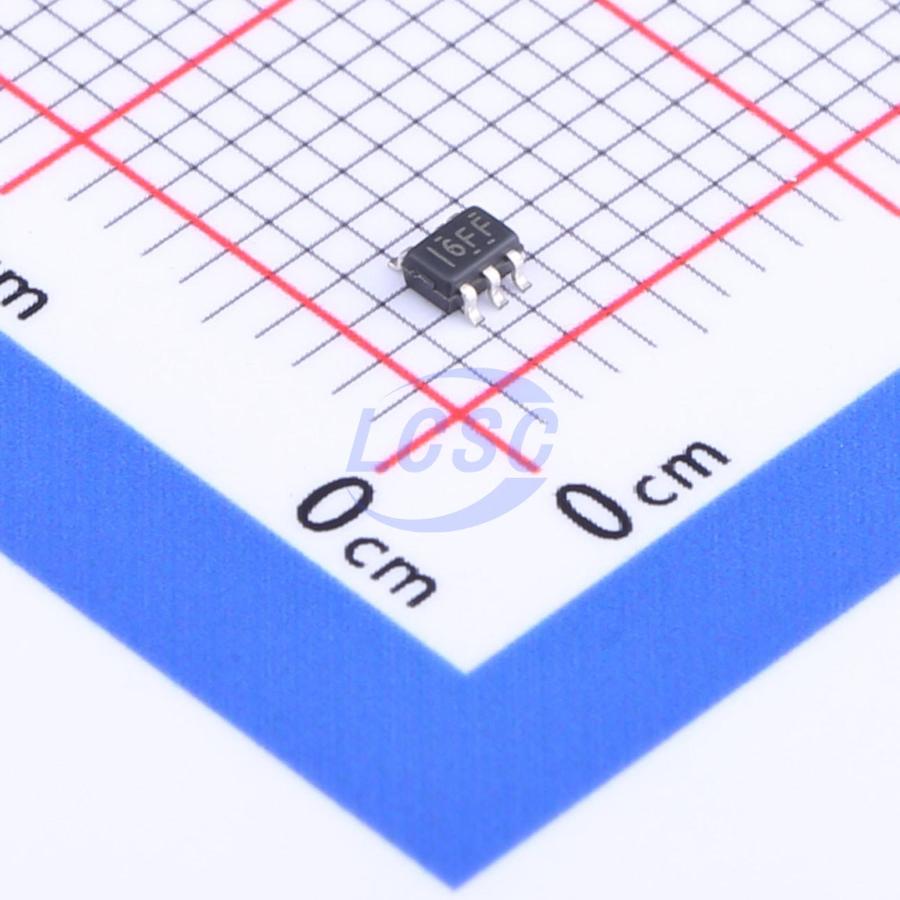

SN74AUP1T14DCKR

Schmitt trigger 2.3V~3.6V 4.4ns@3.3V,30pF 500nA 1 SC-70-5 Gates and Inverters RoHS

SC-70-5ROHS3 CompliantActive

LOW POWER, SINGLE SCHMITT-TRIGGER INVERTER GATE

Manufacturer: TI
Manufacturer part #: SN74AUP1T14DCKR
Store part #: C2682010
Package / case: SC-70-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,280 in stock

#C2682010

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
5+	₹27.19	₹135.95
50+	₹21.76	₹1,088.00
150+	₹19.12	₹2,868.00
500+	₹16.76	₹8,380.00
3,000+	₹16.11	₹48,330.00
6,000+	₹15.73	₹94,380.00

Quantity (min 5, multiples of 5)

5 × ₹27.19

₹135.95

excl. GST

₹160.42 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74AUP1T14DCKR

₹135.95 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Input Type: Schmitt trigger
Logic Family: 74AUP
Voltage - Supply: 2.3V~3.6V
Output Logic Level - Low: 450mV
Propagation Delay: 4.4ns@3.3V,30pF
Features: Power shutdown protection;Noise suppression function
Operating Temperature: -40℃~+85℃
Input Logic Level - High: 1.1V~1.19V
Input Logic Level - Low: 350mV~500mV
Output Logic Level - High: 1.85V;2.55V
Quiescent Current(Iq): 500nA
Number of Channels: 1
Current - Output High(IOH): 4mA
Current - Output Low(IOL): 4mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.001 g

Overview

The SN74AUP1T14 performs the Boolean function Y = A(overline) with designation for logic-level translation applications with output referenced to supply VCC. AUP technology is designed for use in extending battery-life in operating. All input levels that accept 1.8-V LVCMOS signals, while operating from either a single 3.3-V or 2.5-V VCC supply. This product also maintains excellent signal integrity. The wide VCC range of 2.3 V to 3.6 V allows the possibility of switching output level to connect to external controllers or processors. Schmitt-trigger inputs (ΔVₜ = 210 mV between positive and negative input transitions) offer improved noise immunity during switching transitions, which is especially useful on analog mixed-mode designs. Schmitt-trigger inputs reject input noise, ensure integrity of output signals, and allow for slow input signal transition. Ioff is a feature that allows for powered-down conditions (VCC = 0 V) and is important in portable and mobile applications. When VCC = 0 V, signals in the range from 0 V to 3.6 V can be applied to the inputs and outputs of the device. No damage occurs to the device under these conditions. The SN74AUP1T14 is designed with optimized current-drive capability of 4 mA to reduce line reflections, overshoot, and undershoot caused by high-drive outputs.

Applications

Logic level translation applications
Portable/mobile device applications requiring extended battery life
Analog mixed-mode design applications
Interface between external controllers and processors

Key features

Single-Supply Voltage Translator
Output Level Up to Supply VCC CMOS Level
1.8 V to 3.3 V (at VCC = 3.3 VZ) 2.5 V to 3.3 V (at VCC = 3.3 V) 1.8 V to 2.5 V (at VCC = 2.5 VZ)
3.3 V to 2.5 V (at VCC = 2.5 V)
Schmitt-Trigger Inputs Reject Input Noise and Provide Better Output Signal Integrity
Ioff Supports Partial Power Down (VCC = 0 V)
Very Low Static Power Consumption: 0.1 μA
Very Low Dynamic Power Consumption: 0.9 μA
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
Pb-Free Packages Available: SC-70 (DCK) 2x2.1x0.65 mm (Height 1.1 mm)
ESD Performance Tested Per JESD 22 2000-V Human-Body Model (A114-B, Class II) 1000-V Charged-Device Model (C101)
