UMW

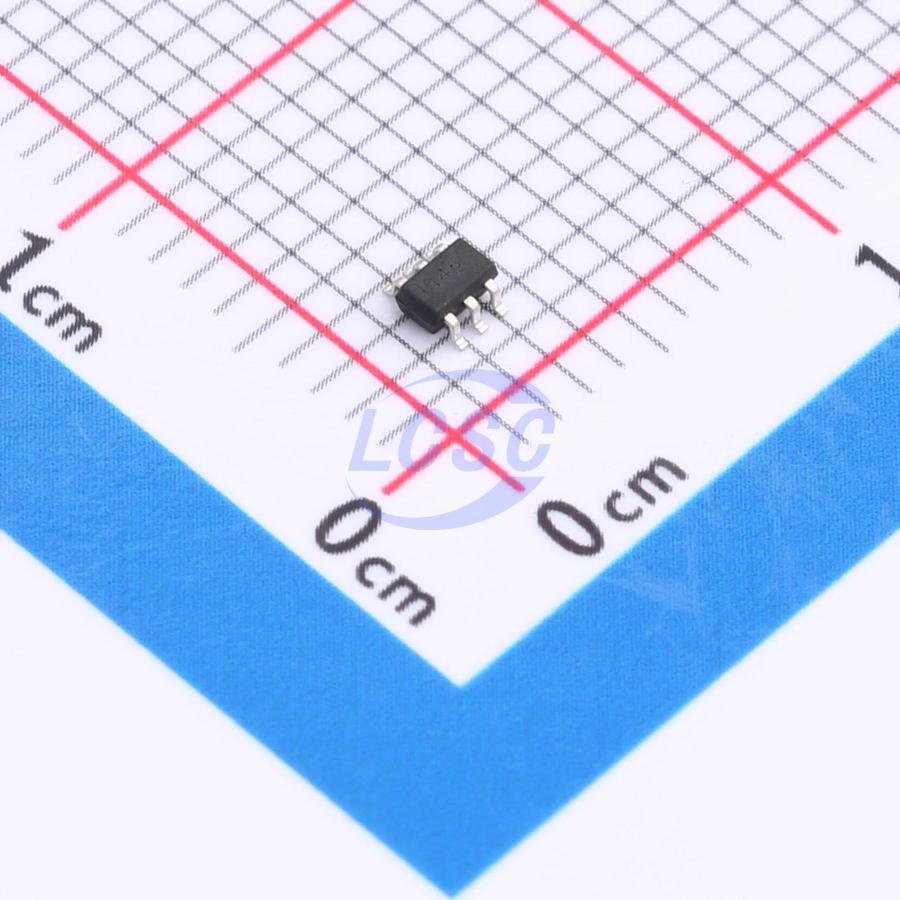

SN74AUP2G04DCKR(UMW)

800mV~3.6V 5.4ns@3.3V,30pF 700nA 2 SC-70-6 Gates and Inverters

SC-70-6RoHSActive

Dual Inverter Gate

Manufacturer: UMW
Manufacturer part #: SN74AUP2G04DCKR(UMW)
Store part #: C22396369
Package / case: SC-70-6
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,400 in stock

#C22396369

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
10+	₹7.25	₹72.50
100+	₹5.73	₹573.00
300+	₹4.96	₹1,488.00
3,000+	₹4.39	₹13,170.00
6,000+	₹3.94	₹23,640.00
9,000+	₹3.72	₹33,480.00

Quantity (min 10, multiples of 10)

10 × ₹7.25

₹72.50

excl. GST

₹85.55 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74AUP2G04DCKR(UMW)

₹72.50 for 10 + GST

Specifications

Logic Family: 74AUP
Voltage - Supply: 800mV~3.6V
Propagation Delay: 5.4ns@3.3V,30pF
Output Logic Level - Low: 450mV
Features: Power shutdown protection
Input Logic Level - High: 2V
Input Logic Level - Low: 900mV
Operating Temperature: -40℃~+85℃
Output Logic Level - High: 2.55V
Quiescent Current(Iq): 700nA
Current - Output High(IOH): 4mA
Number of Channels: 2
Current - Output Low(IOL): 4mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.038 g

Overview

SN74AUP2G04 is a high-performance dual inverter operating over a voltage range of 0.8V to 3.6V. The device is fabricated using advanced CMOS technology, designed for ultra-high-speed operation and high output drive capability.

Key features

Designed for 0.8V to 3.6V Vcc operation
Low quiescent current; Icc = 0.7μA (max)
4mA balanced output sink and source current capability
Near-zero quiescent supply current, significantly reducing system power consumption requirements
These devices are lead-free and RoHS compliant
