TECH PUBLICDatasheet (PDF)

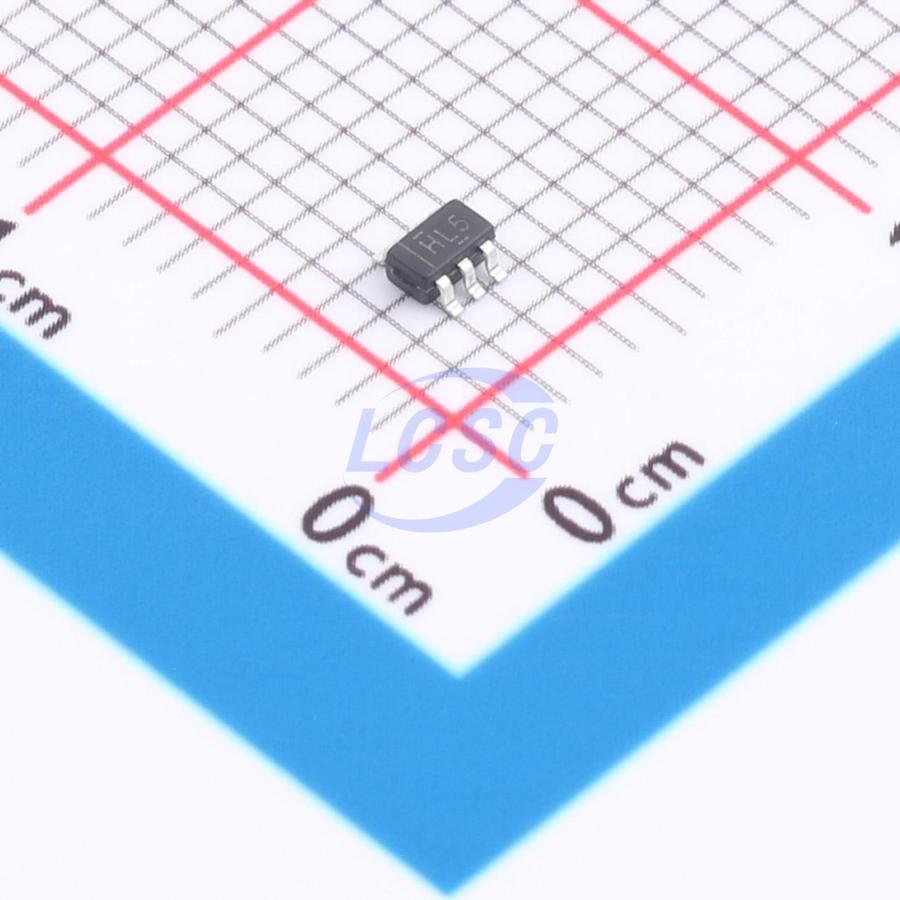

SN74AUP2G17DCKR-TP
800mV~3.6V 2.7ns@3.3V,5pF SOT-363 Flip Flops RoHS
SOT-363ROHS CompliantActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN74AUP2G17DCKR-TP
- Store part #
- C50314335
- Package / case
- SOT-363
- Category
- Flip Flops
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,850 in stock
#C50314335
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.87 | ₹98.70 |
| 100+ | ₹7.79 | ₹779.00 |
| 300+ | ₹6.76 | ₹2,028.00 |
| 3,000+ | ₹5.99 | ₹17,970.00 |
| 6,000+ | ₹5.37 | ₹32,220.00 |
| 9,000+ | ₹5.07 | ₹45,630.00 |
10 × ₹9.87
₹98.70
excl. GST
₹116.47 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AUP2G17DCKR-TP
₹98.70 for 10 + GST
Specifications
- Voltage - Supply
- 800mV~3.6V
- Output Type
- Open-drain
- Operating Temperature
- -40℃~+125℃
- Series
- 74AUP Series
- Current - Output Low(IOL)
- 4mA
- Quiescent Current
- 500nA
- Propagation Delay
- 2.7ns@3.3V,5pF
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 1 g
Overview
SN74AUP2G17DCKR-TP is a dual non-inverting buffer with open-drain outputs. The open-drain output structure allows connection with other open-drain outputs to implement active-low wired-OR or active-high wired-AND functions.
Applications
- Audio docking station
- Blu-ray player and home theater
- Personal digital assistant
- Power supply
- Solid-state drive
Key features
- Wide supply voltage range: 0.8V to 3.6V
- Inputs tolerant up to 3.6V
- I<sub>OFF</sub> supports partial power-down mode
- Low quiescent current; I<sub>CC</sub> = 0.5μA (maximum)
- ESD protection exceeds JESD 22: 2000-V HBM, 200-V MM, 1000-V CDM
