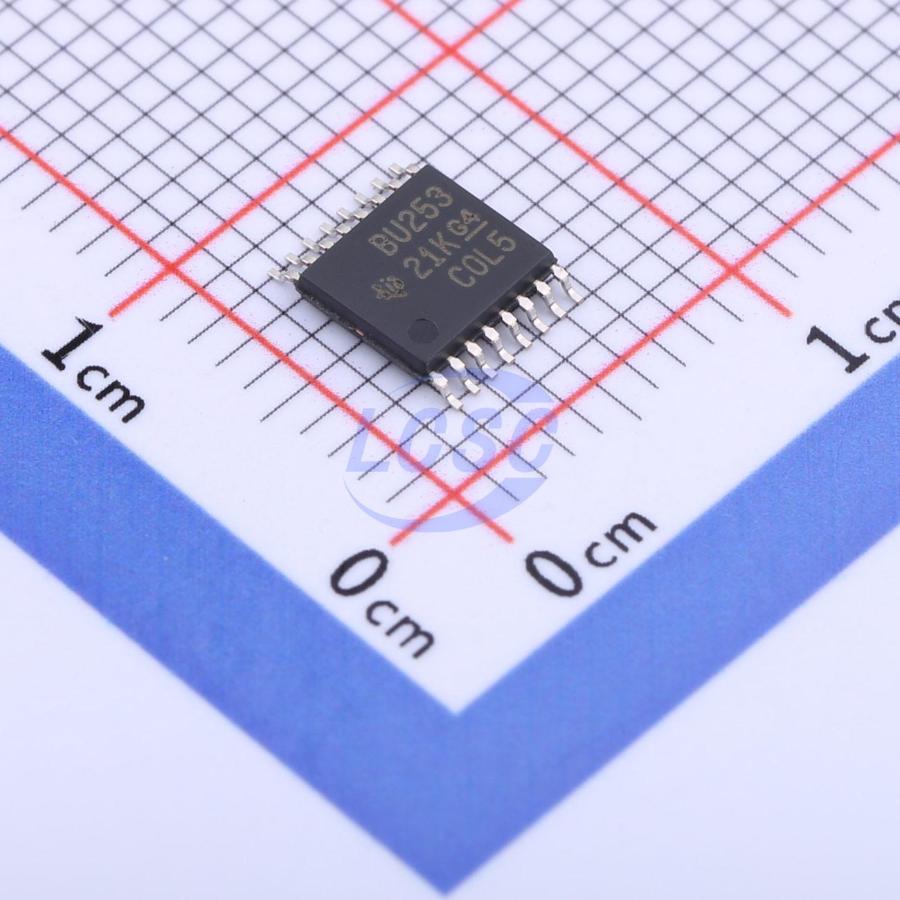

SN74CB3Q3253PWR

The SN74CB3Q3253 device is a high-bandwidth FET bus switch using a charge pump to elevate the gate voltage of the pass transistor, providing a low and flat ON-state resistance (rₒₙ). The low and flat ON-state resistance allows for minimal propagation delay and supports rail-to-rail switching on the data input and output (I/O) ports.

Applications

• Video Broadcasting: IP-Based Multi-Format Transcoder
• Video Communications System

Key features

• High-Bandwidth Data Path (Up to 500 MHz)
• 5-V Tolerant I/Os With Device Powered Up or Powered Down
• Low and Flat ON-State Resistance (rₒₙ) Characteristics Over Operating Range (rₒₙ = 4 Ω Typical)
• Rail-to-Rail Switching on Data I/O Ports – 0- to 5-V Switching With 3.3-V VCC – 0- to 3.3-V Switching With 2.5-V VCC
• Bidirectional Data Flow With Near-Zero Propagation Delay
• Low Input/Output Capacitance Minimizes Loading and Signal Distortion (Cᵢₒ(ₒff) = 3.5 pF Typical)
• Fast Switching Frequency (fₒₑ = 20 MHz Max)
• Data and Control Inputs Provide Undershoot Clamp Diodes
• Low Power Consumption (Icc = 0.6 mA Typical)
• VCC Operating Range From 2.3 V to 3.6 V
• Data I/Os Support 0- to 5-V Signal Levels (0.8-V, 1.2-V, 1.5-V, 1.8-V, 2.5-V, 3.3-V, 5-V)
• Control Inputs Can be Driven by TTL or 5-V and 3.3-V CMOS Outputs
• Ioff Supports Partial-Power-Down Mode Operation
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Performance Tested Per JESD 22 – 2000-V Human-Body Model (A114-B, Class II) – 1000-V Charged-Device Model (C101)
• Supports Both Digital and Analog Applications: USB Interface, Differential Signal Interface Bus Isolation, Low-Distortion Signal Gating
