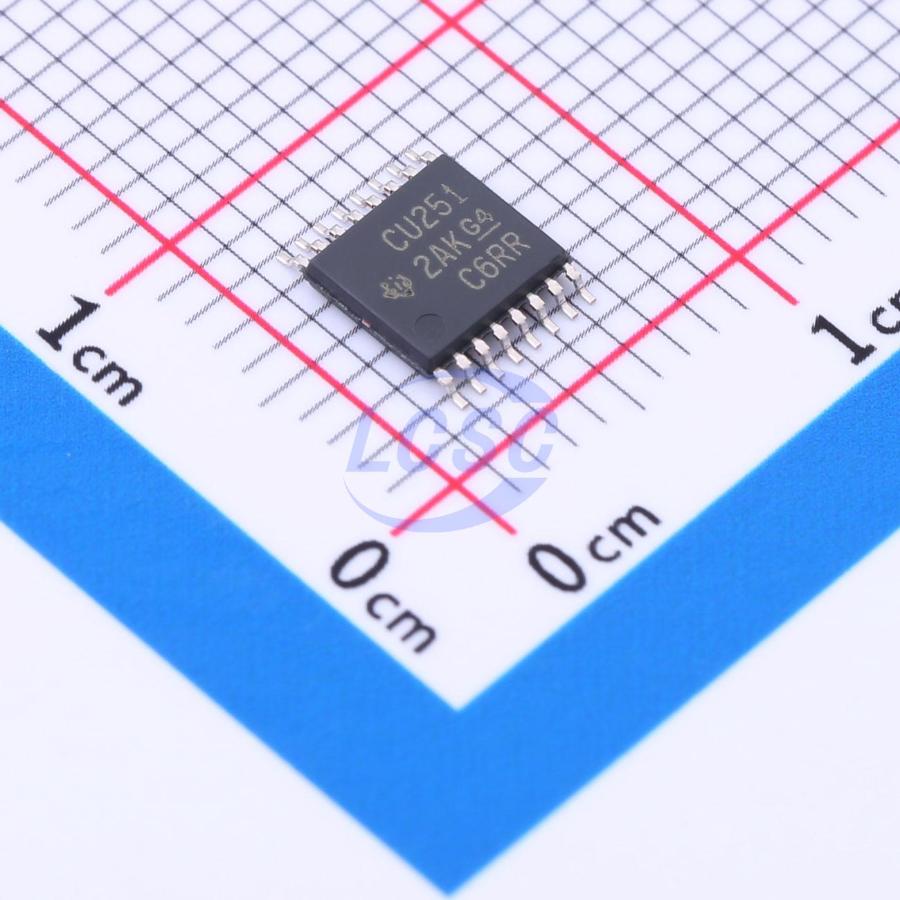

SN74CBT3251PWR

1/8 4.5V~5.5V 3uA 5.5ns@5V,50pF Output enable high-impedance TSSOP-16 Signal Switches, Multiplexers, Decoders RoHS

TSSOP-16ROHS3 CompliantActive

1-of-8 FET Multiplexer and Demultiplexer

Manufacturer: TI
Manufacturer part #: SN74CBT3251PWR
Store part #: C2674440
Package / case: TSSOP-16
Category: Signal Switches, Multiplexers, Decoders
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,157 in stock

#C2674440

Stock & price checked 19 h ago

Quantity	Unit price	Pack price
1+	₹85.40	₹85.40
10+	₹72.35	₹723.50
30+	₹63.01	₹1,890.30
100+	₹55.41	₹5,541.00
500+	₹52.80	₹26,400.00
1,000+	₹51.50	₹51,500.00

Quantity (min 1)

1 × ₹85.40

₹85.40

excl. GST

₹100.77 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,000 per reel

SN74CBT3251PWR

₹85.40 for 1 + GST

Specifications

Number of Channels: 1/8
Voltage - Supply: 4.5V~5.5V
Operating Temperature: -40℃~+85℃
Quiescent Current: 3uA
Propagation Delay: 5.5ns@5V,50pF
Function: Output enable high-impedance

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.33 g

Overview

The SN74CBT3251 is a 1-of-8 high-speed TTL-compatible FET multiplexer and demultiplexer. The low ON-state resistance of the switch allows connections to be made with minimal propagation delay. When output enable (OE (overline)) is low, the SN74CBT3251 is enabled, and S0, S1, and S2 select one of the B outputs for the A-input data.
