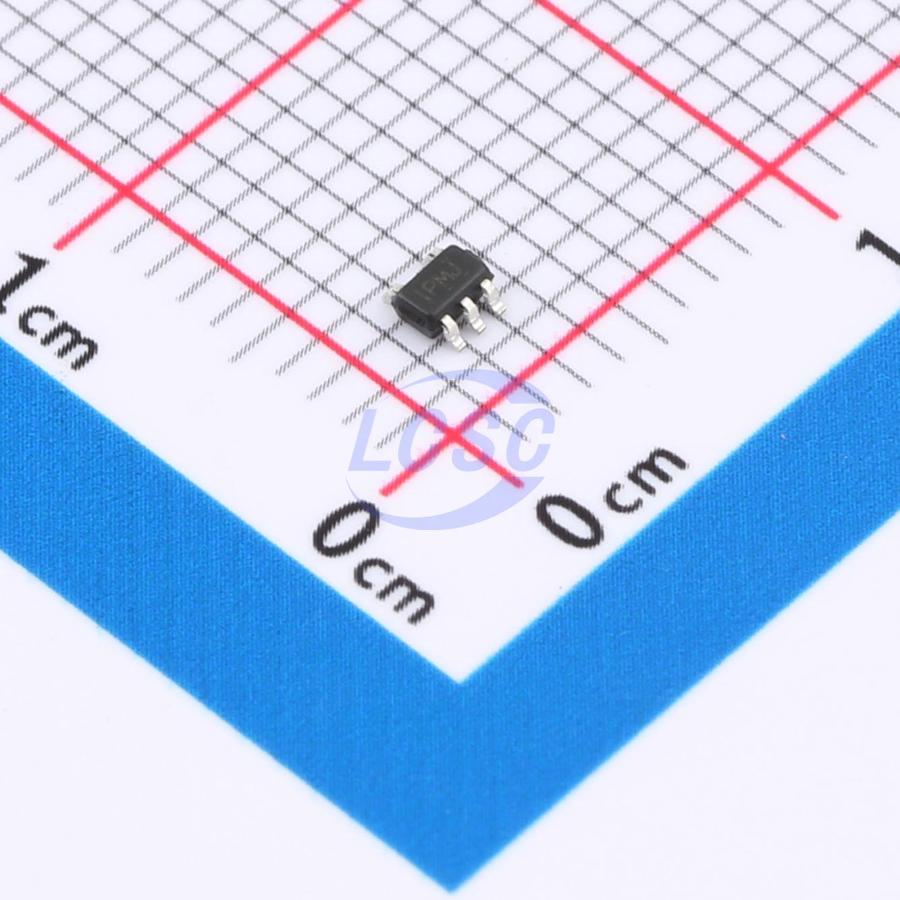

SN74CBTD1G125DCKR

1/1 4.5V~5.5V 1.5mA 0.25ns@5V,50pF SC-70-5 Signal Switches, Multiplexers, Decoders RoHS

SC-70-5ROHS3 CompliantActive

Manufacturer: TI
Manufacturer part #: SN74CBTD1G125DCKR
Store part #: C2674437
Package / case: SC-70-5
Category: Signal Switches, Multiplexers, Decoders
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,000 in stock

#C2674437

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹56.45	₹56.45
10+	₹44.51	₹445.10
30+	₹38.43	₹1,152.90
100+	₹33.22	₹3,322.00
500+	₹31.70	₹15,850.00
1,000+	₹30.84	₹30,840.00

Quantity (min 1)

1 × ₹56.45

₹56.45

excl. GST

₹66.61 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74CBTD1G125DCKR

₹56.45 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Series: 74CBT
Number of Channels: 1/1
Voltage - Supply: 4.5V~5.5V
Operating Temperature: -40℃~+85℃
Quiescent Current: 1.5mA
Propagation Delay: 0.25ns@5V,50pF

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.275 g

Overview

The SN74CBTD1G125 features a single high-speed line switch. The switch is disabled when the output-enable (OE(overline)) input is high. A diode to VCC is integrated on the chip to allow for level shifting from 5-V signals at the device inputs to 3.3-V signals at the device outputs.

Key features

5-Ω Switch Connection Between Two Ports
TTL-Compatible Control Input Levels
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22 – 2000-V Human-Body Model (A114-A) – 200-V Machine Model (A115-A)
