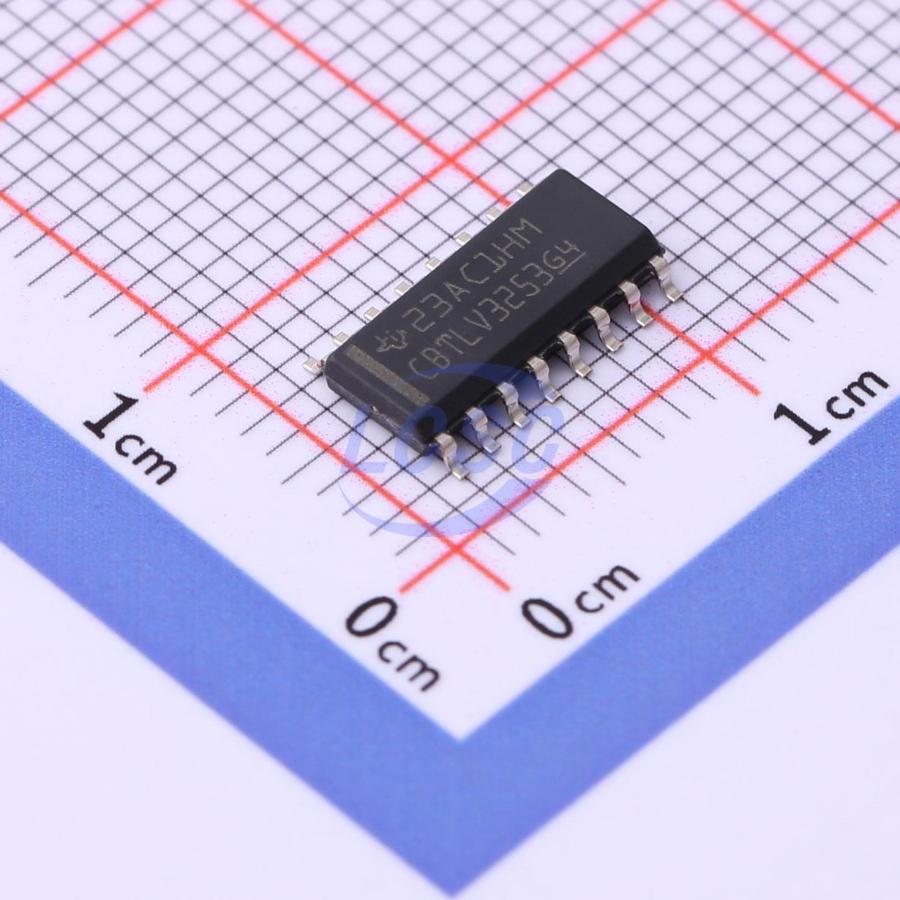

Low-voltage, dual 4:1 FET multiplexer/demultiplexer

Manufacturer: TI
Manufacturer part #: SN74CBTLV3253DR
Store part #: C543079
Package / case: SOIC-16
Category: Signal Switches, Multiplexers, Decoders
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

7,614 in stock

#C543079

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
1+	₹208.07	₹208.07
10+	₹172.68	₹1,726.80
30+	₹140.53	₹4,215.90
100+	₹118.59	₹11,859.00
500+	₹108.82	₹54,410.00
1,000+	₹104.48	₹1,04,480.00

Quantity (min 1)

1 × ₹208.07

₹208.07

excl. GST

₹245.52 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

SN74CBTLV3253DR

₹208.07 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Series: 74CBTLV
Number of Channels: 2/8
Voltage - Supply: 2.3V~3.6V
Operating Temperature: -40℃~+85℃
Quiescent Current: 10uA
Propagation Delay: 0.25ns@3.3V,50pF
Function: Power-off protection;Output enable high-impedance

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.8 g

Overview

The SN74CBTLV3253 device is a dual 4:1 high-speed FET multiplexer and demultiplexer. This switch features a low on-state resistance, enabling connections to be established with minimal propagation delay. The select (S0, S1) inputs control the data flow. When the associated output enable (OE) input is high, the FET multiplexer/demultiplexer is disabled. The SN74CBTLV3253 device is fully specified for partial-power-down applications using I_off. The I_off feature ensures that damaging current is prevented from flowing back through the device during shutdown. The device provides isolation during shutdown.

Applications

Video Broadcasting: Multi-format Transcoder Video Communication System Based on IP
SN74CBTLV3253 can be used to simultaneously multiplex and demultiplex up to 2 channels in a 4:1 configuration

Key features

Functionally equivalent to QS3253
5Ω switch connection between two ports
Rail-to-rail switching on data I/O ports
OFF state supports partial power-down mode operation
Latch-up performance exceeds 100mA, compliant with JESD 78 Class II specifications
