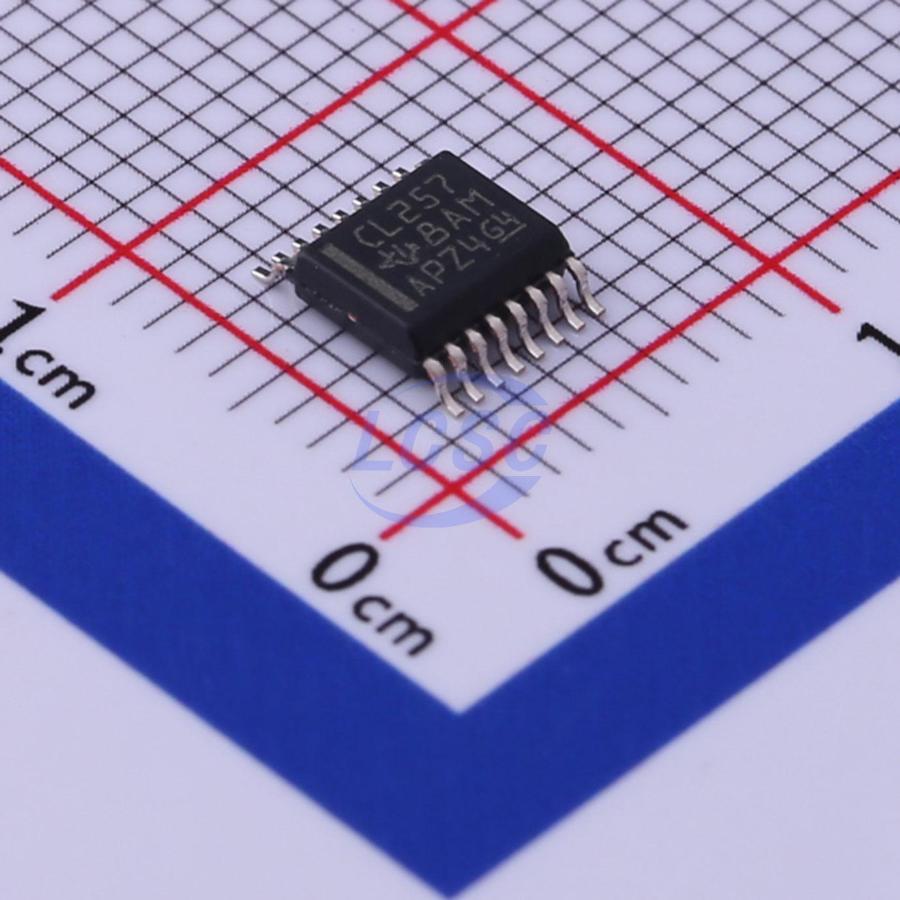

SN74CBTLV3257DBQR

The SN74CBTLV3257 device is a 4-bit 1-of-2 highspeed FET multiplexer/demultiplexer. The low onstate resistance of the switch allows connections to be made with minimal propagation delay. The select (S) input controls the data flow. The FET multiplexers/demultiplexers are disabled when the output-enable (OE (overline)) input is high. This device is fully specified for partial-power-down applications using I_off. The I_off feature ensures that damaging current will not backflow through the device when it is powered down. The device has isolation during power off. To ensure the high-impedance state during power up or power down, OE (overline) should be tied to V_CC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

Applications

• Internet of Things
• Wireless Headphones
• Television Set
• 4-Bit Bus Multiplexing and Demultiplexing

Key features

• 5-Ω Switch Connection Between Two Ports
• Rail-to-Rail Switching on Data I/O Ports
• Ioff Supports Partial-Power-Down Mode Operation
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22 2000-V Human-Body Model (A114-A) 200-V Machine Model (A115-A)
