lingxingicDatasheet (PDF)

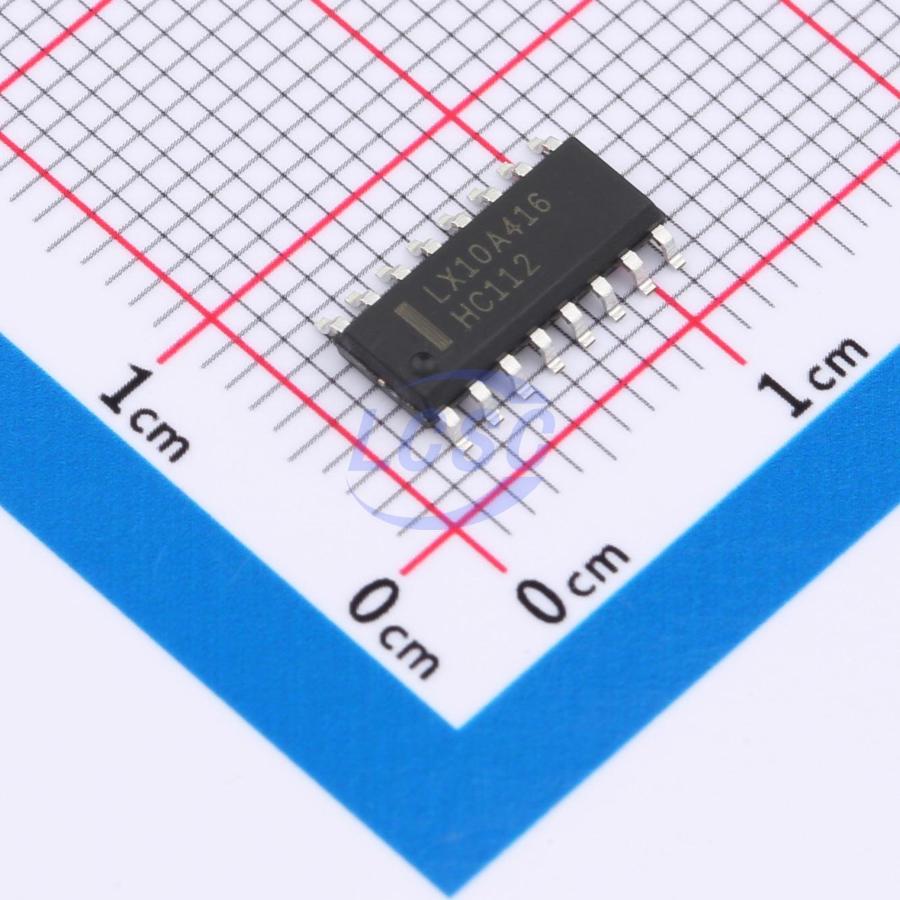

SN74HC112DR(LX)
2V~6V 1 2 38ns@6V,50pF SOP-16 Flip Flops
SOP-16RoHSActive
Dual JK flip-flop with set and reset; negative-edge trigger
- Manufacturer
- lingxingic
- Manufacturer part #
- SN74HC112DR(LX)
- Store part #
- C22436650
- Package / case
- SOP-16
- Category
- Flip Flops
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,420 in stock
#C22436650
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.98 | ₹149.90 |
| 50+ | ₹23.54 | ₹1,177.00 |
| 150+ | ₹20.78 | ₹3,117.00 |
| 500+ | ₹17.34 | ₹8,670.00 |
| 2,500+ | ₹15.81 | ₹39,525.00 |
| 5,000+ | ₹14.88 | ₹74,400.00 |
5 × ₹29.98
₹149.90
excl. GST
₹176.88 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74HC112DR(LX)
₹149.90 for 5 + GST
Specifications
- Voltage - Supply
- 2V~6V
- Number of Bits per Element
- 1
- Output Type
- Complementary
- Operating Temperature
- -40℃~+125℃
- Series
- 74HC Series
- Synchronous/Asynchronous
- Asynchronous
- Current - Output High(IOH)
- 5.2mA
- Number of Elements
- 2
- Current - Output Low(IOL)
- 5.2mA
- Setup Time
- 6ns
- Quiescent Current
- 80uA
- Hold Time
- -3ns
- Propagation Delay
- 38ns@6V,50pF
- Trigger Type
- Falling Edge
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.278 g
Overview
The SN74HC/HCT112 is a dual negative-edge triggered JK flip-flop.
Key features
- Supply voltage range:
- SN74HC112: 2~6V
- SN74HCT112: 4.5~5.5V
- Input levels:
- SN74HC112: CMOS level
- SN74HCT112: TTL level
- Temperature range: -40°C to +125°C
- Packaging information: DIP16/SOP16/TSSOP16
