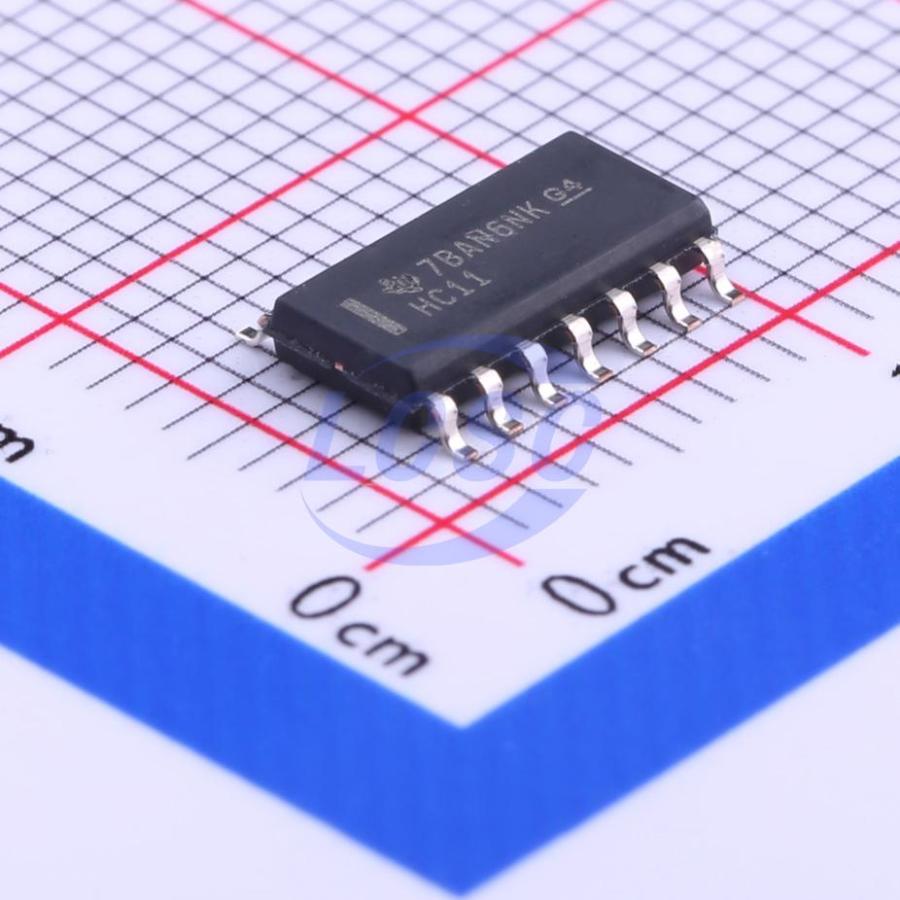

SN74HC11DR

2uA 2V~6V 17ns@6V,50pF SOIC-14 Gates and Inverters RoHS

SOIC-14ROHS3 CompliantActive

TRIPLE 3-INPUT POSITIVE-AND GATES

Manufacturer: TI
Manufacturer part #: SN74HC11DR
Store part #: C7643
Package / case: SOIC-14
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,555 in stock

#C7643

Stock & price checked 24 h ago

Quantity	Unit price	Pack price
5+	₹29.79	₹148.95
50+	₹23.93	₹1,196.50
150+	₹21.42	₹3,213.00
500+	₹18.28	₹9,140.00
2,500+	₹16.88	₹42,200.00
5,000+	₹16.05	₹80,250.00

Quantity (min 5, multiples of 5)

5 × ₹29.79

₹148.95

excl. GST

₹175.76 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

SN74HC11DR

₹148.95 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Input Logic Level - High: 1.5V~4.2V
Input Logic Level - Low: 500mV~1.8V
Operating Temperature: -40℃~+85℃
Logic Family: 74HC Series
Output Logic Level - High: 1.9V;4.4V;5.9V
Quiescent Current(Iq): 2uA
Voltage - Supply: 2V~6V
Number of Channels: 3;3
Current - Output High(IOH): 5.2mA
Output Logic Level - Low: 100mV
Propagation Delay: 17ns@6V,50pF
Current - Output Low(IOL): 5.2mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.34 g

Overview

The ’HC11 devices contain three independent 3-input AND gates. They perform the Boolean function Y = A • B • C or Y = A(overline) + B(overline) + C(overline) in positive logic.

Key features

Wide Operating Voltage Range of δ₂ν₀ to 6 V
Outputs Can Drive Up To 10 LSTTL Loads
Low Power Consumption, 20 - μA Max ICC
Typical tₚd = 8 ns
±4 - mA Output Drive at 5 V
Low Input Current of 1 μA Max
