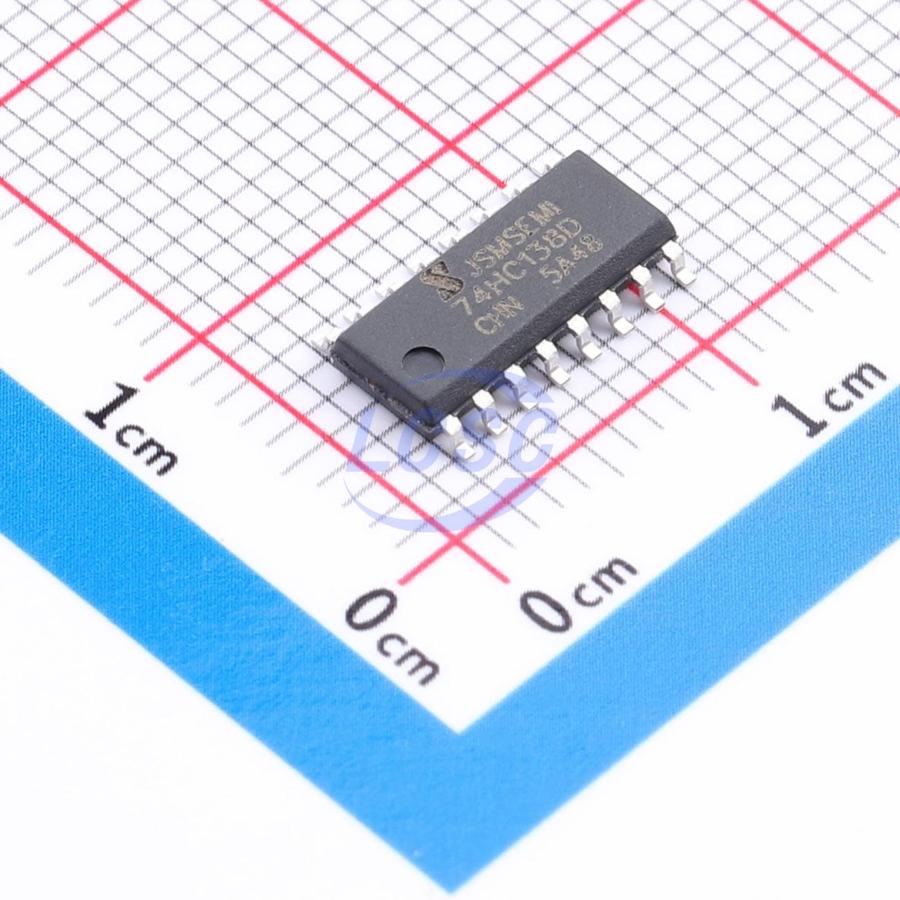

SN74HC138DR-JSM
3/8 2V~6V 8uA 12ns Reverse function SOP-16 Signal Switches, Multiplexers, Decoders RoHS
SOP-16ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- SN74HC138DR-JSM
- Store part #
- C53436299
- Package / case
- SOP-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,485 in stock
#C53436299
Stock & price checked 25 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.29 | ₹61.45 |
| 50+ | ₹9.78 | ₹489.00 |
| 150+ | ₹8.52 | ₹1,278.00 |
| 500+ | ₹7.58 | ₹3,790.00 |
| 2,500+ | ₹6.83 | ₹17,075.00 |
| 5,000+ | ₹6.46 | ₹32,300.00 |
5 × ₹12.29
₹61.45
excl. GST
₹72.51 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74HC138DR-JSM
₹61.45 for 5 + GST
Specifications
- Type
- Decoder
- Series
- 74HC
- Number of Channels
- 3/8
- Voltage - Supply
- 2V~6V
- Operating Temperature
- -40℃~+125℃
- Quiescent Current
- 8uA
- Propagation Delay
- 12ns
- Function
- Reverse function
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.304 g
Overview
The 74HC/HCT138 decodes three binary-weighted address inputs (A0, A1, and A2) into eight mutually exclusive outputs (Y0~Y7). The device features three enable inputs (E1, E2, and E3). Each output remains high unless E1 and E2 are low and E3 is high. This multiple-enable function allows simple parallel expansion to a 32-line-to-1 (5-to-32) decoder using only one inverter and four AiP74HC/HCT138 ICs. The AiP74HC/HCT138 can also function as an 8-output demultiplexer by using one of the active-low enable inputs as a data input and the remaining enable inputs as strobes. Input clamping diodes are provided, enabling the use of current-limiting resistors to interface inputs to voltages exceeding Vcc.
Key features
- Input levels: CMOS for 74HC138, TTL for 74HCT138
- Demultiplexing capability
- Multiple inputs for easy expansion
- Ideal memory chip select decoder
- Active-low mutually exclusive outputs
- Operating temperature range: -40℃~+125℃
- Package types: DIP16/SOP16/TSSOP16
