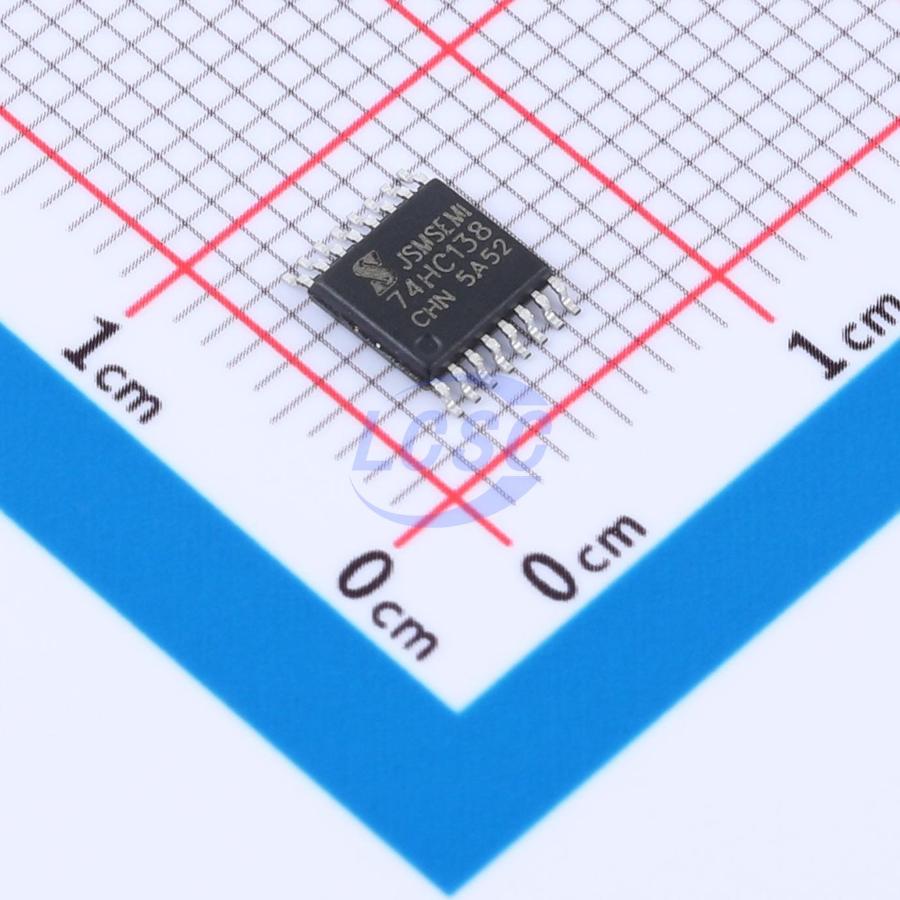

SN74HC138PW-JSM
3/8 2V~6V 8uA 12ns@6.0V,50pF TSSOP-16 Signal Switches, Multiplexers, Decoders RoHS
TSSOP-16ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- SN74HC138PW-JSM
- Store part #
- C53114425
- Package / case
- TSSOP-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,065 in stock
#C53114425
Stock & price checked 42 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.09 | ₹85.45 |
| 50+ | ₹13.60 | ₹680.00 |
| 150+ | ₹11.85 | ₹1,777.50 |
| 500+ | ₹10.54 | ₹5,270.00 |
| 2,500+ | ₹9.49 | ₹23,725.00 |
| 5,000+ | ₹8.97 | ₹44,850.00 |
5 × ₹17.09
₹85.45
excl. GST
₹100.83 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74HC138PW-JSM
₹85.45 for 5 + GST
Specifications
- Type
- Decoder
- Series
- 74HC
- Number of Channels
- 3/8
- Voltage - Supply
- 2V~6V
- Operating Temperature
- -40℃~+125℃
- Quiescent Current
- 8uA
- Current - Output High(IOH)
- 4mA
- Propagation Delay
- 12ns@6.0V,50pF
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.172 g
Overview
The 74HC/HCT138 decodes three binary-weighted address inputs (A0, A1, and A2) into eight mutually exclusive outputs (Y0~Y7). The device features three enable inputs (E1, E2, and E3). All outputs remain HIGH unless E1 and E2 are LOW and E3 is HIGH. This multiple-enable functionality allows easy parallel expansion to a 32-line-to-1 (5-to-32) decoder using one inverter and four AiP74HC/HCT138 ICs. The AiP74HC/HCT138 can function as an 8-output demultiplexer by using one active-LOW enable input as a data input while the remaining enable inputs serve as strobe signals. Input clamping diodes are provided, allowing the use of current-limiting resistors to interface inputs to voltages exceeding VCC.
Key features
- Input levels: 74HC138 — CMOS; 74HCT138 — TTL
- Demultiplexing capability
- Multiple inputs for easy expansion
- Ideal for memory chip select decoding
- Active-low mutually exclusive outputs
- Operating temperature range: -40℃~+125℃
- Package types: DIP16, SOP16, TSSOP16
