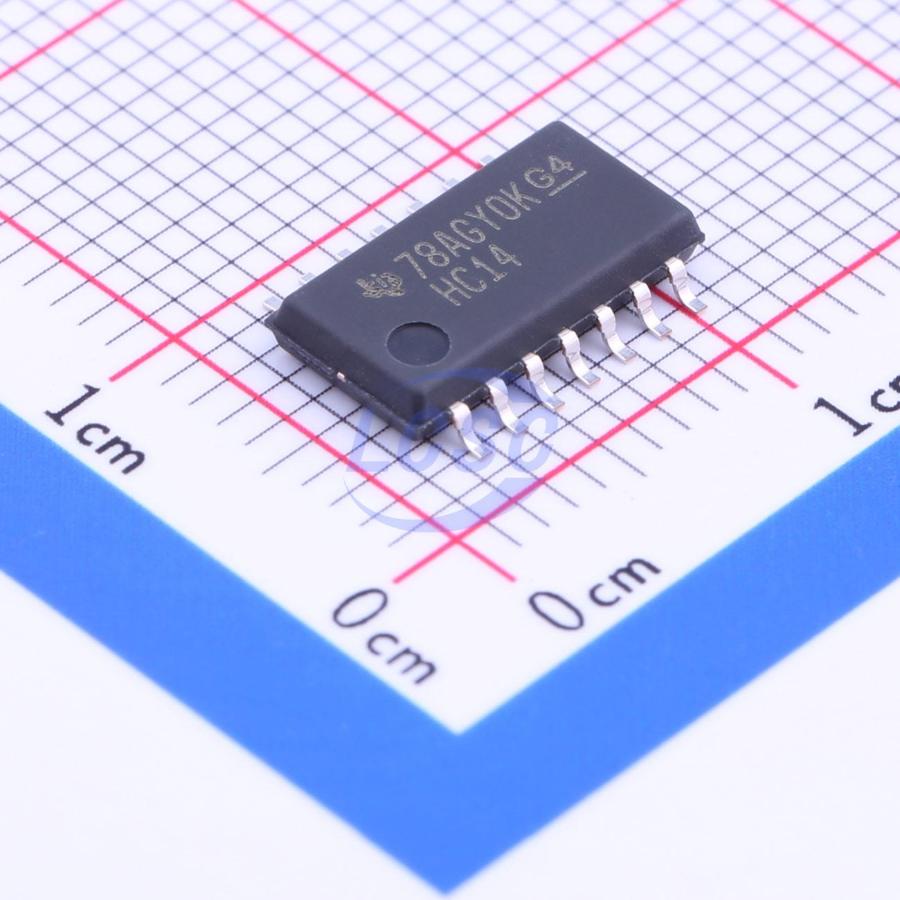

SN74HC14NSR
Schmitt trigger 2V~6V 21ns@6V,50pF 2uA 6 SOIC-14-208mil Gates and Inverters RoHS
SOIC-14-208milROHS3 CompliantActive
Hex Schmitt-Trigger Inverters
- Manufacturer
- TI
- Manufacturer part #
- SN74HC14NSR
- Store part #
- C41539
- Package / case
- SOIC-14-208mil
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,610 in stock
#C41539
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹72.87 | ₹72.87 |
| 10+ | ₹64.60 | ₹646.00 |
| 30+ | ₹60.25 | ₹1,807.50 |
| 100+ | ₹56.12 | ₹5,612.00 |
| 500+ | ₹53.73 | ₹26,865.00 |
| 1,000+ | ₹52.42 | ₹52,420.00 |
1 × ₹72.87
₹72.87
excl. GST
₹85.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74HC14NSR
₹72.87 for 1 + GST
Specifications
- Logic Family
- 74HC
- Input Type
- Schmitt trigger
- Voltage - Supply
- 2V~6V
- Propagation Delay
- 21ns@6V,50pF
- Features
- Noise suppression function
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - Low
- 300mV~1.2V
- Input Logic Level - High
- 1.5V~4.2V
- Quiescent Current(Iq)
- 2uA
- Number of Channels
- 6
- Current - Output High(IOH)
- 5.2mA
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.157 g
Overview
WIDE Operating Voltage Range of 2 V to 6 V Outputs Can Drive Up to 10 LSTTL Loads Low Power Consumption, 20 - μA Max ICC Typical Ipd = 11 ns ±4 - mA Output Drive at 5 V Low Input Current of 1 μA Max These Schmitt - trigger devices contain six independent inverters. They perform the Boolean function Y = A in positive logic.
Key features
- Operating voltage range: 2V~6V
- Output drives up to 10 LSTTL loads
- Low power consumption, max supply current Icc: 20μA
- Typical propagation delay tpd: 11ns
- Output drive current ±4mA at 5V
- Max input current: 1μA
