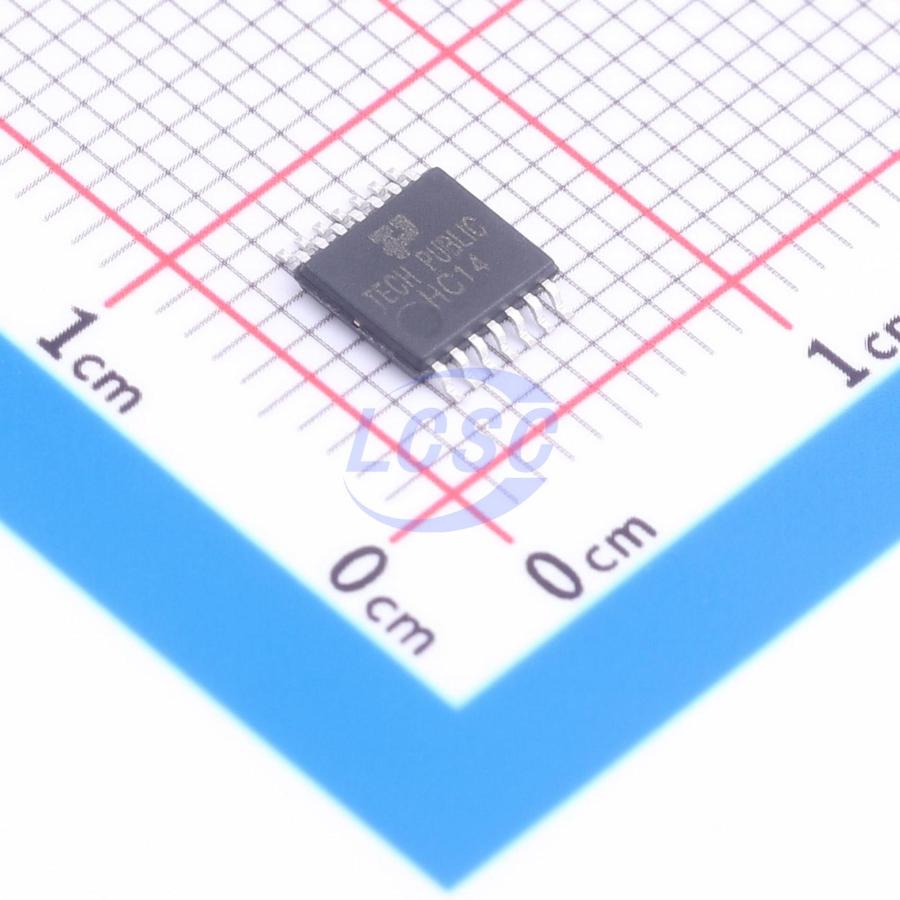

SN74HC14PWR-TP

Schmitt trigger 10uA 2V~6V 6 3.5ns@5V,15pF TSSOP-14 Gates and Inverters

TSSOP-14RoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: SN74HC14PWR-TP
Store part #: C54561938
Package / case: TSSOP-14
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,460 in stock

#C54561938

Stock & price checked 28 h ago

Quantity	Unit price	Pack price
5+	₹32.98	₹164.90
50+	₹25.80	₹1,290.00
150+	₹22.72	₹3,408.00
500+	₹18.87	₹9,435.00
2,500+	₹17.16	₹42,900.00
5,000+	₹16.13	₹80,650.00

Quantity (min 5, multiples of 5)

5 × ₹32.98

₹164.90

excl. GST

₹194.58 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

SN74HC14PWR-TP

₹164.90 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Input Type: Schmitt trigger
Operating Temperature: -40℃~+125℃
Logic Family: 74HC
Output Logic Level - High: 1.5V;1.9V;2.2V;2.4V;3.8V
Quiescent Current(Iq): 10uA
Voltage - Supply: 2V~6V
Number of Channels: 6
Output Logic Level - Low: 100mV;450mV;300mV;400mV;550mV
Propagation Delay: 3.5ns@5V,15pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.185 g

Overview

This is a hex inverter with Schmitt-trigger inputs. The inputs can be driven by 3.3V or 5V devices. This feature allows these devices to be used as translators in mixed 3.3V and 5V environments. The device is fully specified for partial-power-down applications using IOFF. The IOFF circuitry disables the outputs, preventing potentially damaging backflow current through the device when it is powered down.

Key features

Wide supply voltage range: 2V to 6V
CMOS low power consumption
Overvoltage-tolerant inputs up to 5.5V
Latch-up performance exceeds 250mA
Direct TTL-level interface capability
ESD protection: HBM ANSI/ESDA/JEDEC JS-003 Class A exceeds 6000V, CDM ANSI/ESDA/JEDEC JS-002 C3 class exceeds 2000V
IoFF circuit enables partial power-down mode operation
JEDEC compliant: JESD8-5 (2.3V to 2.7V), JESD8C (2.7V to 3.6V), JESD36 (4.5V to 5.5V)
Package: TSSOP-14
