XBLW

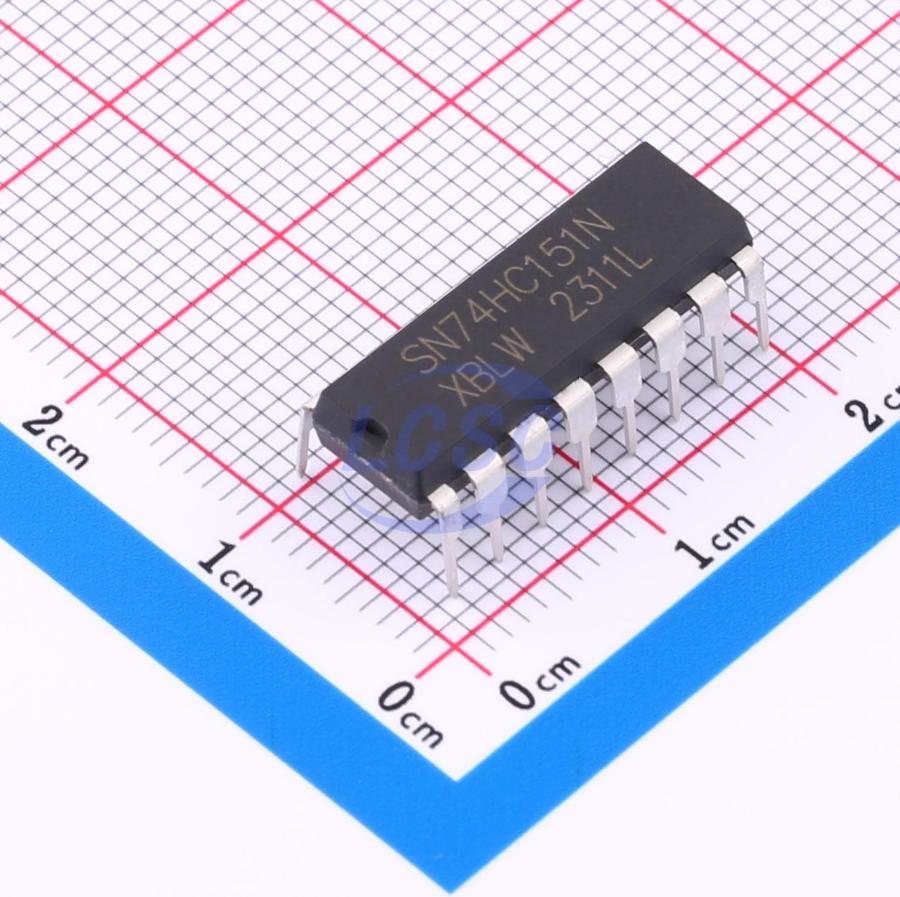

SN74HC151N(XBLW)

8/1 2V~6V 160uA 15ns@6.0V,50pF DIP-16 Signal Switches, Multiplexers, Decoders RoHS

DIP-16ROHS CompliantActive

8-input Multiplexer

Manufacturer: XBLW
Manufacturer part #: SN74HC151N(XBLW)
Store part #: C18723506
Package / case: DIP-16
Category: Signal Switches, Multiplexers, Decoders
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

925 in stock

#C18723506

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹21.56	₹107.80
50+	₹18.65	₹932.50
150+	₹17.40	₹2,610.00
500+	₹15.84	₹7,920.00
2,000+	₹15.15	₹30,300.00
5,000+	₹14.74	₹73,700.00

Quantity (min 5, multiples of 5)

5 × ₹21.56

₹107.80

excl. GST

₹127.20 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 25 per tube

SN74HC151N(XBLW)

₹107.80 for 5 + GST

Specifications

Type: Multiplexer
Series: 74HC
Number of Channels: 8/1
Voltage - Supply: 2V~6V
Operating Temperature: -40℃~+105℃
Quiescent Current: 160uA
Current - Output High(IOH): 5.2mA
Propagation Delay: 15ns@6.0V,50pF
Current - Output Low(IOL): 5.2mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tube-packed
Standard pack: 25 / Tube
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 1.67 g

Overview

The SN74HC151 are 8-bit multiplexer with eight binary inputs (I0 to I7), three select inputs (S0 to S2) and an enable input (E). One of the eight binary inputs is selected by the select inputs and routed to the complementary outputs (Y and Y). A HIGH on E forces the output Y LOW and output Y HIGH. Inputs also include clamp diodes that enable the use of current limiting resistors to interface inputs to voltages in excess of Vcc.
