TIDatasheet (PDF)

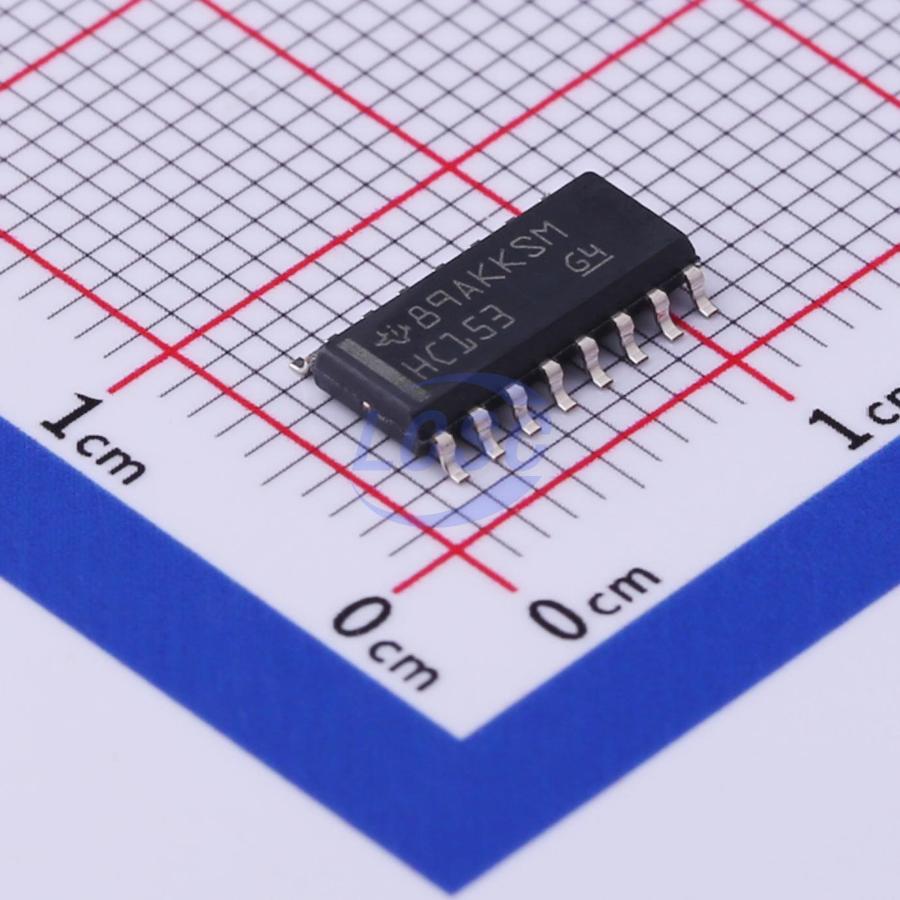

SN74HC153DR
4/1 2V~6V 80uA 26ns@6V,50pF SOIC-16 Signal Switches, Multiplexers, Decoders RoHS
SOIC-16ROHS3 CompliantActive
DUAL 4-LINE TO 1-LINE DATA SELECTORS/MULTIPLEXERS
- Manufacturer
- TI
- Manufacturer part #
- SN74HC153DR
- Store part #
- C484751
- Package / case
- SOIC-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,467 in stock
#C484751
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹76.54 | ₹76.54 |
| 10+ | ₹61.80 | ₹618.00 |
| 30+ | ₹54.43 | ₹1,632.90 |
| 100+ | ₹47.06 | ₹4,706.00 |
| 500+ | ₹42.72 | ₹21,360.00 |
| 1,000+ | ₹38.17 | ₹38,170.00 |
1 × ₹76.54
₹76.54
excl. GST
₹90.32 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74HC153DR
₹76.54 for 1 + GST
Specifications
- Series
- 74HC
- Number of Channels
- 4/1
- Voltage - Supply
- 2V~6V
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 80uA
- Current - Output High(IOH)
- 7.8mA
- Propagation Delay
- 26ns@6V,50pF
- Current - Output Low(IOL)
- 7.8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.184 g
Overview
Each of these data selectors/multiplexers contains inverters and drivers to supply full binary decoding data selection to the AND-OR gates. Separate strobe (G(overline)) inputs are provided for each of the two 4-line sections. Select inputs A and B are common to both sections.
Key features
- Wide Operating Voltage Range of δ₂V for all cases to 6 V
- Outputs Can Drive Up To 15 LSTTL Loads
- Low Power Consumption, 80 - μA Max ICC
- Typical propagation delay time (tₚd) = 9 ns
- ±6 - mA Output Drive at 5 V
- Low Input Current of 1 μA Max
- Permit Multiplexing from n Lines to One Line
- Perform Parallel - to - Serial Conversion
- Strobe (Enable) Line Provided for Cascading (N Lines to n Lines)
