TIDatasheet (PDF)

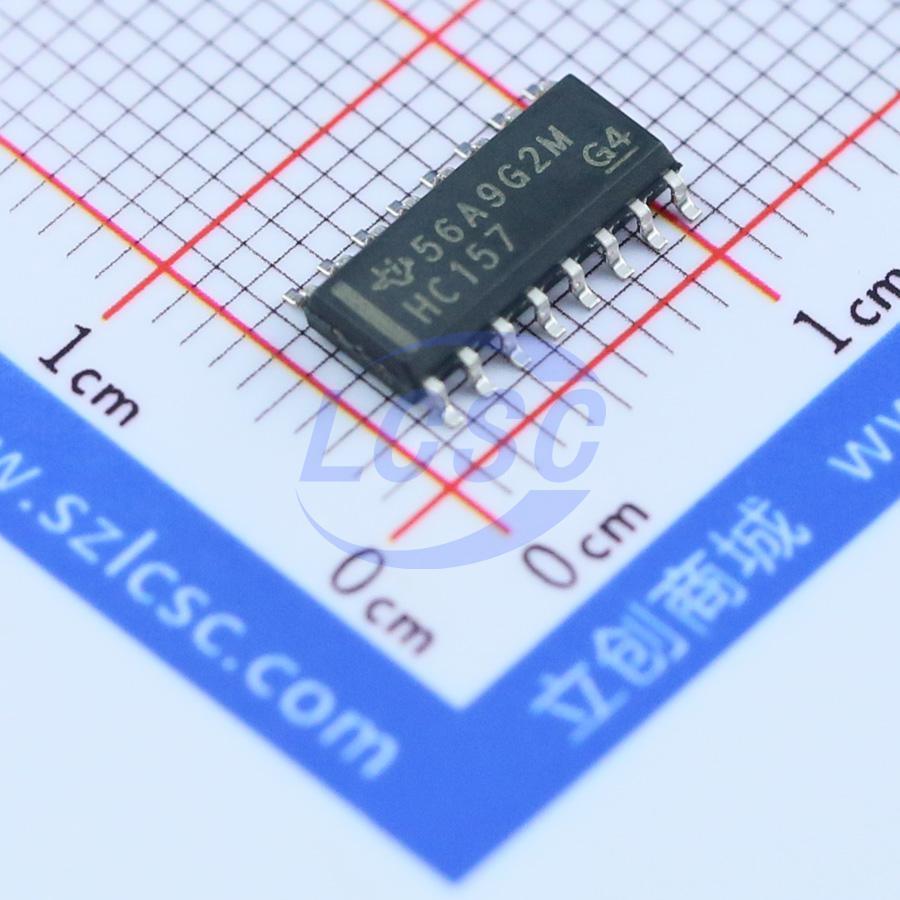

SN74HC157DR
8/4 2V~6V 80uA 21ns@6V,50pF SOIC-16 Signal Switches, Multiplexers, Decoders RoHS
SOIC-16ROHS3 CompliantActive
QUADRUPLE 2-LINE TO 1-LINE DATA SELECTORS/MULTIPLEXERS
- Manufacturer
- TI
- Manufacturer part #
- SN74HC157DR
- Store part #
- C6823
- Package / case
- SOIC-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,480 in stock
#C6823
Stock & price checked 31 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹73.65 | ₹73.65 |
| 10+ | ₹58.45 | ₹584.50 |
| 30+ | ₹51.72 | ₹1,551.60 |
| 100+ | ₹43.67 | ₹4,367.00 |
| 500+ | ₹39.98 | ₹19,990.00 |
| 1,000+ | ₹35.21 | ₹35,210.00 |
1 × ₹73.65
₹73.65
excl. GST
₹86.91 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74HC157DR
₹73.65 for 1 + GST
Specifications
- Type
- Multiplexer
- Series
- 74HC
- Number of Channels
- 8/4
- Voltage - Supply
- 2V~6V
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 80uA
- Current - Output High(IOH)
- 7.8mA
- Propagation Delay
- 21ns@6V,50pF
- Current - Output Low(IOL)
- 7.8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.296 g
Overview
These data selectors/multiplexers contain inverters and drivers to supply full data selection to the four output gates. A separate strobe overline{G} input is provided. A 4-bit word is selected from one of two sources and is routed to the four outputs. The 'HC157 devices present true data.
Key features
- Wide Operating Voltage Range of 2 V to 6 V
- Outputs Can Drive Up To 15 LSTTL Loads
- Low Power Consumption, 80 μA Max Icc
- Typical tpd = 11 ns
- ±6 mA Output Drive at 5 V
- Low Input Current of 1 μA Max
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74HC158DT#C1880242TI · SOIC-16 | TI | SOIC-16 | 88 | ₹43.34 · 88 in stock | View |
 | SN74HC257DR#C7645TI · SOIC-16 | TI | SOIC-16 | 7,281 | ₹81.31 · 7,281 in stock | View |
 | 74HC257D,653#C5627Nexperia · SOIC-16 | Nexperia | SOIC-16 | 1,198 | ₹55.26 · 1,198 in stock | View |
 | MC74HC157ADR2G#C233460onsemi · SOIC-16 | onsemi | SOIC-16 | 128 | ₹82.04 · 128 in stock | View |
 | 74AHC157D,118#C2442288Nexperia · SO-16 | Nexperia | SO-16 | 10 | ₹46.79 · 10 in stock | View |
