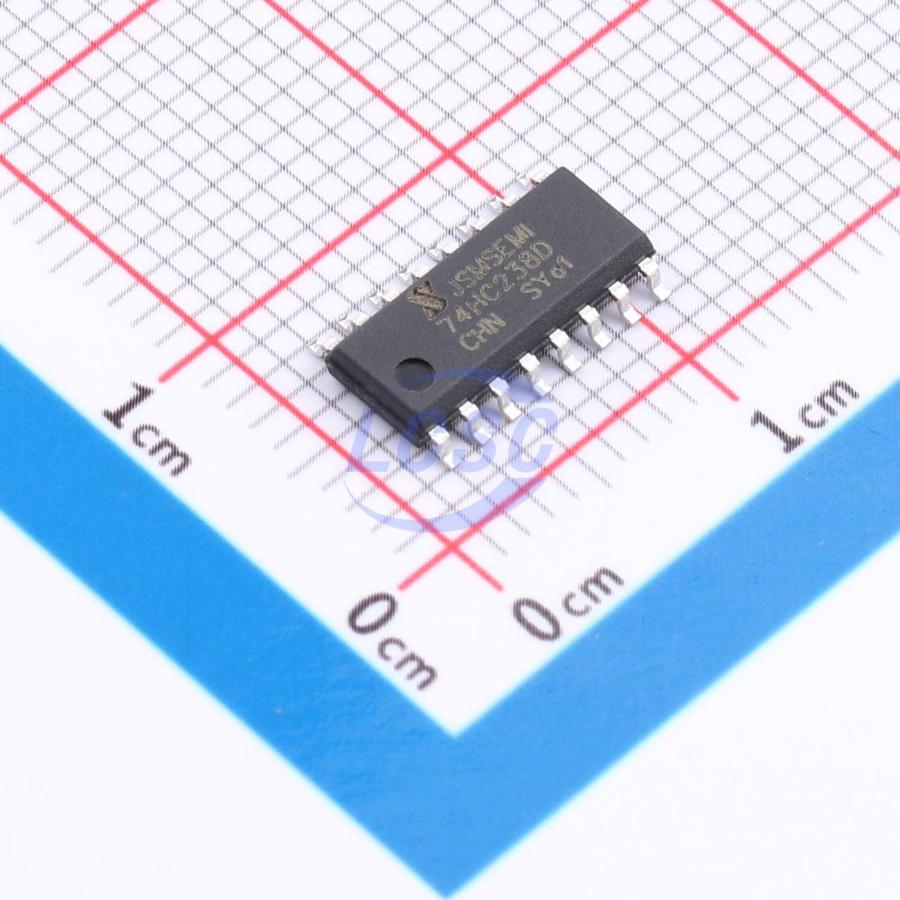

SN74HC238DR-JSM

3/8 2V~6V 8uA 14ns@6V SOP-16 Signal Switches, Multiplexers, Decoders RoHS

SOP-16ROHS CompliantActive

Manufacturer: JSMSEMI
Manufacturer part #: SN74HC238DR-JSM
Store part #: C53114331
Package / case: SOP-16
Category: Signal Switches, Multiplexers, Decoders
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,685 in stock

#C53114331

Stock & price checked 20 h ago

Quantity	Unit price	Pack price
5+	₹20.98	₹104.90
50+	₹16.60	₹830.00
150+	₹14.72	₹2,208.00
500+	₹12.38	₹6,190.00
2,500+	₹11.34	₹28,350.00
5,000+	₹10.72	₹53,600.00

Quantity (min 5, multiples of 5)

5 × ₹20.98

₹104.90

excl. GST

₹123.78 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

SN74HC238DR-JSM

₹104.90 for 5 + GST

Specifications

Type: Decoder
Series: 74HC
Number of Channels: 3/8
Voltage - Supply: 2V~6V
Operating Temperature: -40℃~+125℃
Quiescent Current: 8uA
Propagation Delay: 14ns@6V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.312 g

Overview
