XBLW

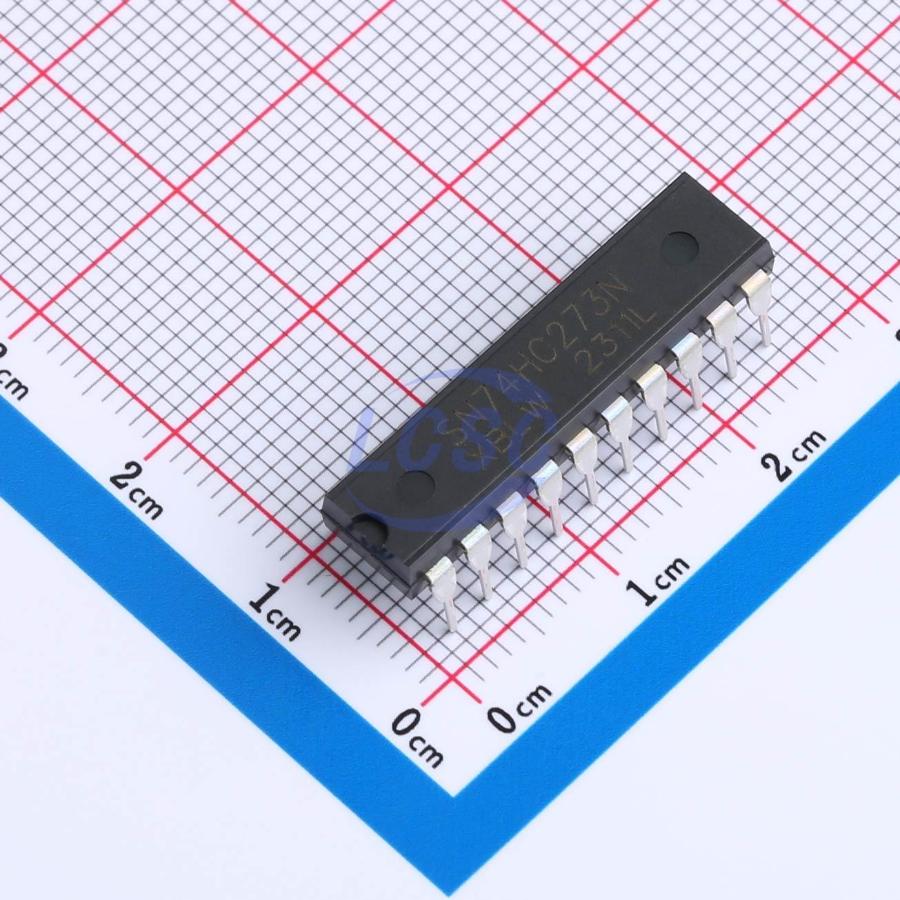

SN74HC273N(XBLW)

2V~6V 8 1 13ns@6V,50pF DIP-20 Flip Flops RoHS

DIP-20ROHS CompliantActive

Octal D-type flip-flop with reset; positive edge-trigger

Manufacturer: XBLW
Manufacturer part #: SN74HC273N(XBLW)
Store part #: C18723521
Package / case: DIP-20
Category: Flip Flops
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,794 in stock

#C18723521

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
6+	₹34.89	₹209.34
60+	₹27.61	₹1,656.60
180+	₹24.50	₹4,410.00
594+	₹20.61	₹12,242.34
2,880+	₹18.88	₹54,374.40
5,760+	₹17.85	₹1,02,816.00

Quantity (min 6, multiples of 6)

6 × ₹34.89

₹209.34

excl. GST

₹247.02 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 18 per tube

SN74HC273N(XBLW)

₹209.34 for 6 + GST

Specifications

Voltage - Supply: 2V~6V
Number of Bits per Element: 8
Operating Temperature: -40℃~+105℃
Series: 74HC Series
Synchronous/Asynchronous: Asynchronous
Number of Elements: 1
Current - Output High(IOH): 4mA
Current - Output Low(IOL): 5.2mA
Setup Time: 3ns
Quiescent Current: 8uA
Hold Time: 3ns
Propagation Delay: 13ns@6V,50pF
Trigger Type: Rising Edge

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tube-packed
Standard pack: 18 / Tube
Sold per: Piece
Minimum order: 6 (multiples of 6)
Unit weight: 2.432 g

Overview

The SN74HC273 is a octal positive-edge triggered D-type flip-flop. The device features clock (CP) and master reset (MR) inputs. The outputs Qn will assume the state of their corresponding Dn inputs that meet the set-up and hold time requirements on the LOW-to-HIGH clock (CP) transition. A LOW on MR forces the outputs LOW independently of clock and data inputs. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of V_CC
