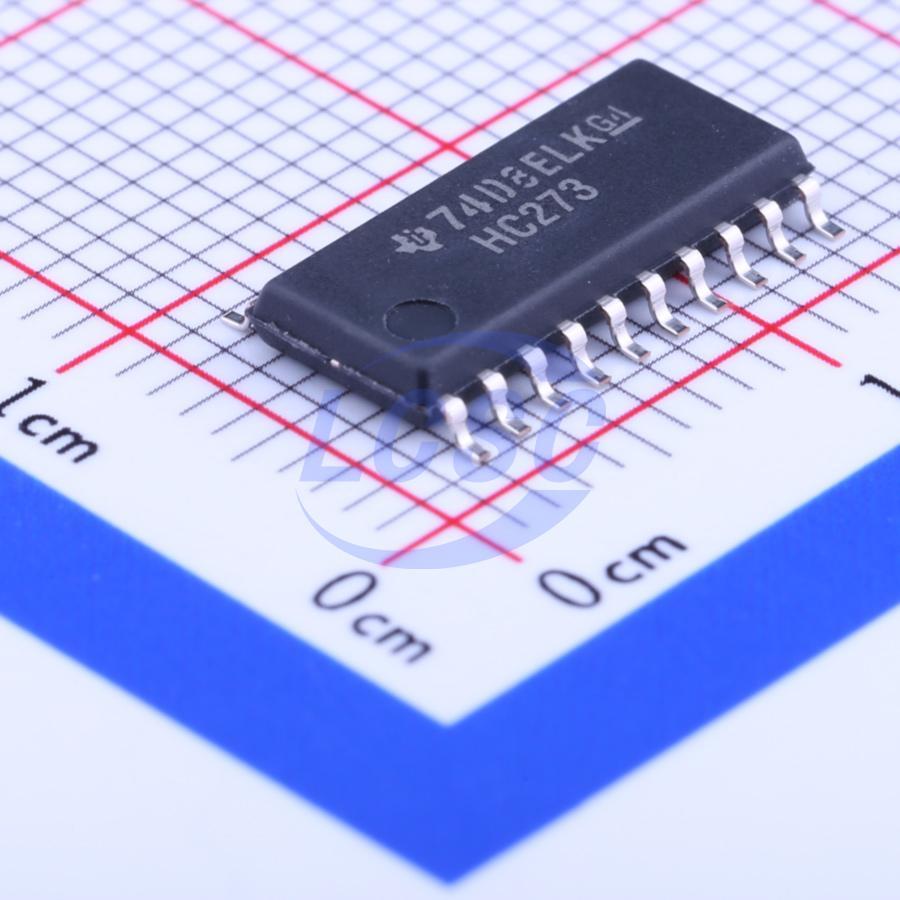

SN74HC273NSR
2V~6V 8 1 27ns@6V,50pF SOIC-20-208mil Flip Flops RoHS
Octal D-Type Flip-Flops With Clear
- Manufacturer
- TI
- Manufacturer part #
- SN74HC273NSR
- Store part #
- C114841
- Package / case
- SOIC-20-208mil
- Category
- Flip Flops
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
19,752 in stock
#C114841
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹60.52 | ₹60.52 |
| 10+ | ₹48.24 | ₹482.40 |
| 30+ | ₹43.00 | ₹1,290.00 |
| 100+ | ₹36.32 | ₹3,632.00 |
| 500+ | ₹29.81 | ₹14,905.00 |
| 1,000+ | ₹28.01 | ₹28,010.00 |
1 × ₹60.52
₹60.52
excl. GST
₹71.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74HC273NSR
₹60.52 for 1 + GST
Specifications
- Voltage - Supply
- 2V~6V
- Number of Bits per Element
- 8
- Operating Temperature
- -40℃~+85℃
- Series
- 74HC Series
- Synchronous/Asynchronous
- Asynchronous
- Number of Elements
- 1
- Current - Output High(IOH)
- 5.2mA
- Current - Output Low(IOL)
- 5.2mA
- Setup Time
- 21ns
- Quiescent Current
- 8uA
- Propagation Delay
- 27ns@6V,50pF
- Trigger Type
- Rising Edge
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.491 g
Overview
The SNx4HC273 devices are positive-edge-triggered D-type flip-flops with a direct active low clear (CLR) input. Information at the data (D) inputs meeting the setup time requirements is transferred to the Q outputs on the positive-going edge of the clock (CLK) pulse. Clock-triggering occurs at a particular voltage level and is not related directly to the transition time of the positive-going pulse. When CLK is at either the high or low level, the D input has no effect at the output.
Applications
- Buffer or Storage Registers
- Shift Registers
- Pattern Generators
Key features
- Wide Operating Voltage Range of 2 V to 6 V
- Outputs Can Drive Up to 10 LSTTL Loads
- Low Power Consumption, 80 μA Maximum ICC
- Typical tpd = 12 ns
- ±4 mA Output Drive at 5 V
- Low Input Current of 1 μA Maximum
- Contain Eight Flip-Flops With Single-Rail Outputs
- Direct Clear Input
- Individual Data Input to Each Flip-Flop
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74HC273DTR(XBLW)#C18723520XBLW · SOP-20 | XBLW | SOP-20 | 3,555 | ₹24.82 · 3,555 in stock | View |
